Free Form Rebar

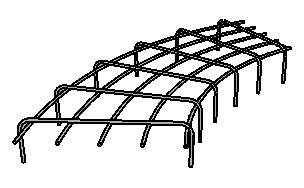

Learn how to place rebar and rebar sets in concrete modeling elements with complex geometry.

• Click Concrete tab Reinforcement panel (Path). See Path Free Form Rebar
• Click Concrete tab Reinforcement panel (Morphed). See Morphed Free Form Rebar
• Click Concrete tab Reinforcement panel (Rebar), then:
  1. Click Modify | Place Rebar Placement Methods panel (Sketch).
  2. In the drawing area, select the host for the free form rebar.
  3. In the Properties palette, under Construction, specify the Geometry parameter as Free Form.

  See Sketch Free Form Rebar
