Piping: View the Hydronic Piping Network

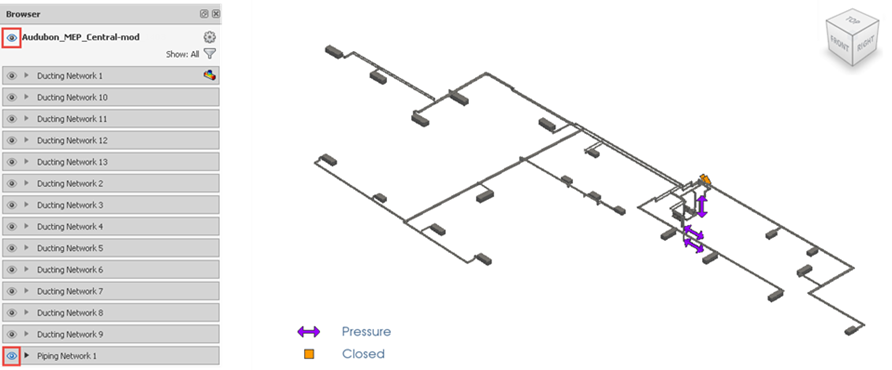

In this task, you will focus on a single piping network. You will display Piping Network 1 and hide the other systems.

  1. Click next to Ducting Network 1 to hide it.
  2. Click next to Piping Network 1 to display it.
