To Add a Free Line Between Two Curves on an Alignment

Add free lines to build constraint-based alignment geometry for the areas of your design that require maintaining tangency between two curves.

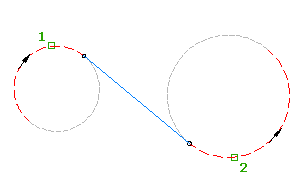

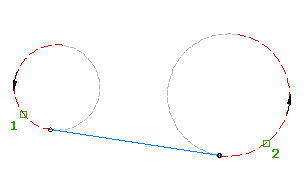

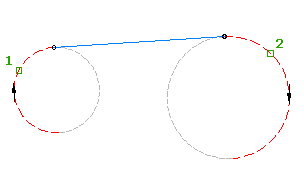

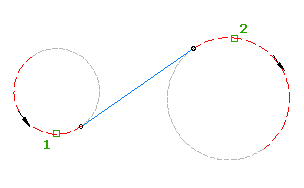

This entity maintains tangency to both attachment curves (2). There are four possible solutions for this entity, depending on the direction of the curves.

To add a free line (between two curves)

Click the alignment. Click Alignment tabModify panelGeometry Editor Find.
On the Alignment Layout Tools toolbar, click Free Line (Between Two Curves).
Specify the curve entity from which you want to add the free line.
Specify the curve entity to which you want to add the free line.
