Change Types

There are three types of change: Added, Modified, and Deleted. These change types act as toggle buttons in the Change visualization interface, to hide or show relevant changes in the Changes list.

You can view more detailed information about each change in the list, for example if there has been a change in shape or size of an object.

View Change Information

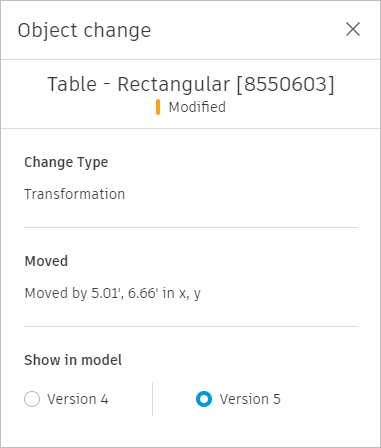

1. In the Change visualization interface, click an item in the Changes list to open the change details in the right panel.

2. At the bottom of the panel, use the buttons to toggle between the selected versions, and visualize the change in the model.

3. Click the Close icon to close the panel.



Example

In this example there are:

• 2 added changes represented in green
• 87 modified changes represented in orange
• 1 deleted change represented in red

The changes are highlighted on the model, allowing you to quickly go through them and focus your team on rework, improving the collaboration process.

See Compare Changes and Work with Watch Groups to learn more about change workflows.

Change examples:

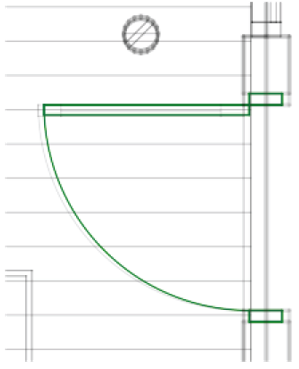

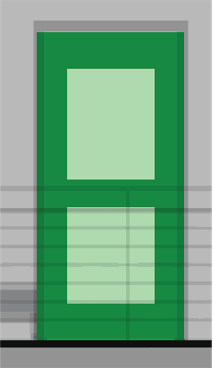

Added

3D	2D

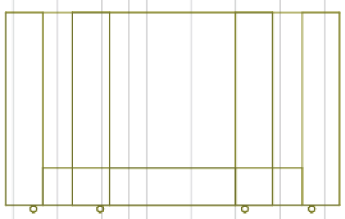

Modified

3D	2D

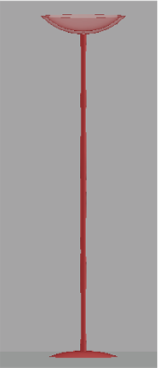

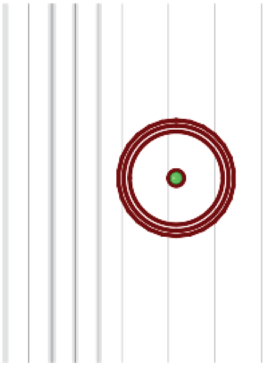

Deleted

3D	2D
