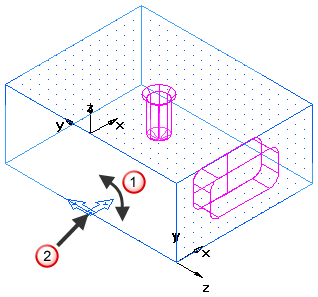

In this example, the part is indexed around the X axis.
Note: The X axes of each Setup are parallel to the X-axis of the Stock axis.
|
|
|
4th axis
Stock axis
