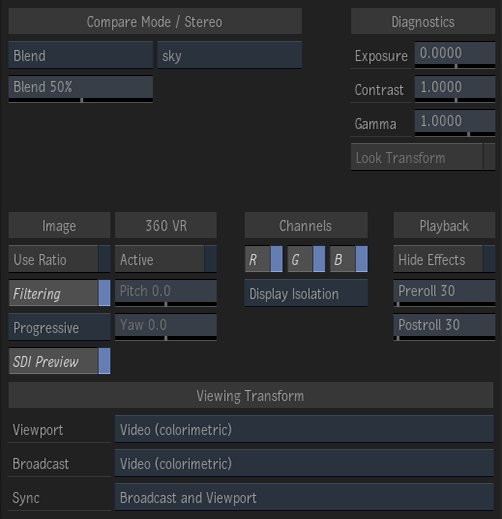

Compare Mode /Stereo

Compare Modes box

Select the comparison mode to compare the current frame to a grabbed reference frame. Use the Reference box to select a reference frame.

Reference box

Grab a frame to create a new reference frame or select a reference to use in the comparison.


Use Ratio button

Enable to simulate rectangular pixel display that corresponds to the delivery format.

Filtering button

Enable to set the filtering.

Scan Mode button

Adjusts the display to the desired scan mode format.

Playback

Hide Effects button

Enable to hide effects during playback. Disable to display effects (may affect performance).

Preroll field

Displays the number of preroll frames when playing a clip. Editable.

Postroll field

Displays the number of postroll frames when playing a clip. Editable.

360 VR button

Enable to activate the 360 VR mode. Use the widget inside the Player or Viewport to navigate in the clip.

Pitch Slider

Use to modify the longitude of the 360 VR Viewer.

YAW Slider

Use to modify the latitude of the 360 VR Viewer.

Exposure, Contrast, and Gamma

Exposure field

Displays the exposure in F-stops used to adjust the display for diagnostic purposes. Press Shift+E and drag left or right in a viewport to adjust.

Contrast field

Displays the contrast, pivoting around grey, used to adjust the display for diagnostic purposes. Press Shift+C and drag left or right in a viewport to adjust.

Gamma field

Displays the gamma used to adjust the display for diagnostic purposes. Press Shift+W and drag left or right in a viewport to adjust.

Enable Look Transform button

Toggles the Look component of the OCIO view used in the viewport on or off. Available only when the selected OCIO view has a Look operator defined.

Channels

Red Channel button

Enable to display the red channel of the clip. You may press Shift+R to enable and Shift+R again, or Shift+Z, to disable.

Green Channel button

Enable to display the green channel of the clip. You may press Shift+G to enable and Shift+G again, or Shift+Z, to disable.

Blue Channel button

Enable to display the blue channel of the clip. You may press Shift+B to enable and Shift+B again, or Shift+Z, to disable.

Isolation button

Use Source Isolation to isolate the selected channel as a grey scale image, then apply the viewing transform. Use Display Isolation to isolate the selected channel(s) after the viewing transform (this is equivalent to turning off channels in the display itself). You may press Shift+X to toggle between the two modes.

Viewing Transform

Graphics Monitor View option

Select the OCIO view to use for the graphics monitor viewport.

Video Preview Device View option

Select the OCIO view to use for the video preview device.

Viewport and Video Preview Synchronization option

The "Video Preview and Viewport" option synchronizes the OCIO view between the Video Preview and Viewport, and across Multi- and Player Viewports. The "Do Not Sync" option allows you to assign a view to the Video Preview device that differs from the one assigned to the Multi- and Player Viewports. Note that if the displays for the Graphics Monitor and Video Preview Device have different views defined in the OCIO config file, syncing may not always be possible.

Notes:

• The Colour Management settings (Exposure, Contrast, Gamma) of a viewport are bypassed in the video preview device when Viewport Monitoring is enabled in the Players & Monitoring preferences, and the Bypass option is enabled in the viewport.
• The selected Viewing Transform of a Player view is now shared between its different tabs (Source, Sequence, Container, Batch) even if "Do not Sync" is the selected option.
