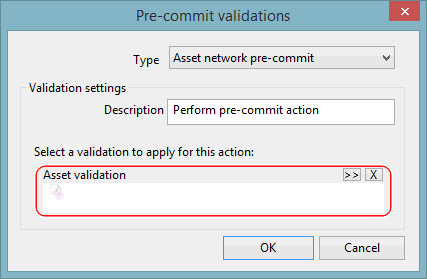

Pre-commit Validations Dialog

This dialog is displayed by selecting the Database managementShared pre-commit validations from the File menu, and is used to specify which validation object is to be used for checking network data during a commit operation.

The following table describes the different items in the dialog:

Label

Description

Type

Choose the type of network (Collection, Distribution or Asset) that the validation data object is to apply to from the dropdown.

Validation settings

Label

Description

Description

A description of the validation during commit operation can be entered into this field or you can use the default Perform pre-commit action description.

Select a validation to apply to this action

The validation data object (which contains the validation rules that are to be applied during the commit operation) can be either dragged from the Explorer window into this box or you can click on the (Browse) button to display a Common Tree Selection dialog from which you can select the appropriate validation data object.

Click (Delete Selection button) to remove a validation object from the box.

Note: Only a validation data object suitable for the specified Type of network can be used.

The box is either highlighted in red or green. Red indicates that no validation data object has been specified while green indicates that the specified validation object is appropriate for the selected Type of network.

OK

Saves the specification and closes the window.

Cancel

Cancels the operation and closes the window.
