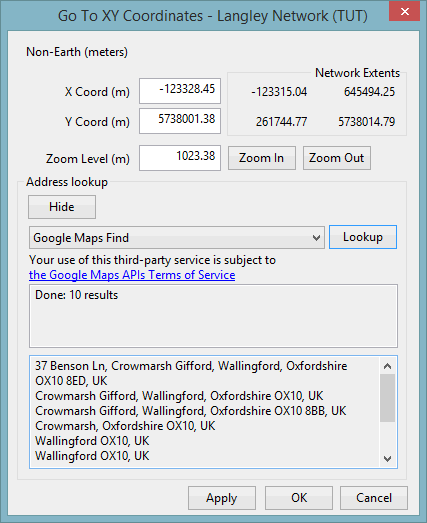

This dialog allows you to centre the GeoPlan View on a specified point, and zoom in or out on that point if required. It also lets you use a selected online map application to find the address of the specified point.
It is displayed when you click on the Find XY button
on the
GeoPlan Tools Toolbar or select Go to XY coordinate from the GeoPlan menu
.
Dialog description
| Item | Description | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Projection | The read-only current map projection for the GeoPlan. | ||||||||
| X Coord | Chosen X Coordinate. The default is the centre of the current view. | ||||||||
| Y Coord | Chosen Y Coordinate. The default is the centre of the current view. | ||||||||
| Zoom Level | The selected zoom level. The default is the current zoom level. | ||||||||
| Network Extents | The read-only maximum and minimum X and Y extents of the network. | ||||||||
| Zoom In |
Adjusts the zoom level. Each click doubles or halves the zoom level. |
||||||||
| Zoom Out | |||||||||
| Address lookup | Finds the address for the chosen location (X,Y coordinates) using a web map application.
|
||||||||
| Apply | Applies changes without closing the dialog. | ||||||||
| OK | Saves any changes and closes the dialog. | ||||||||
| Cancel | Discards any changes and closes the dialog. |
