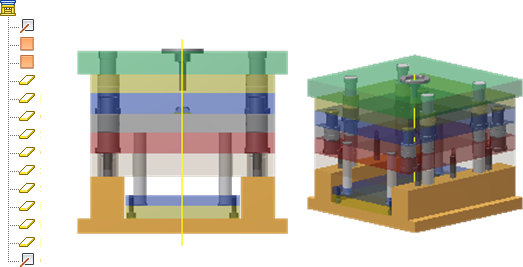

Mold Base Author command Reference
 Centric Axis | Selects an edge or axis to define the centric axis to constrain the MA assembly Z axis. |
 Alignment Plane | Selects a plane or face to define the alignment plane to constrain the MA assembly XZ plane. |
| Parting Plane | Selects a plane or face to define the parting plane. It constrains the plane with a selected reference edge. |
 Top Clamping Plate | Selects one or more parts as the top clamping plate. |
| Runner Stripper Plate | Selects one or more parts as the runner stripper plate. |
| Cavity Plate (AP) | Selects one or more parts as the cavity plate. |
| Stripper Plate | Selects one or more parts as the stripper plate. |
| Core Plate (BP) | Selects one or more parts as the core plate. |
| Support Plate | Selects one or more parts as the support plate. |
| Spacer Block | Selects one or more parts as the spacer block. |
| Ejector Retainer Plate | Selects one or more parts as the ejector retainer plate. |
| Ejector Plate (EP) | Selects one or more parts as the ejector plate. It is used for mounting the ejector pin or lifter assembly. |
| Bottom Clamping Plate | Selects one or more parts as the bottom clamping plate. |
| Centerline | Selects a work plane or work axis for each mold plate to enable automatic centerline generation in the 2D drawing. |
