For network points, you can create geometry details, for example to illustrate complex manholes in the drawing. These are geometry feature classes that normally contain only attributes for representation, for example, line type. All other attribute data is stored with the master attribute feature class.

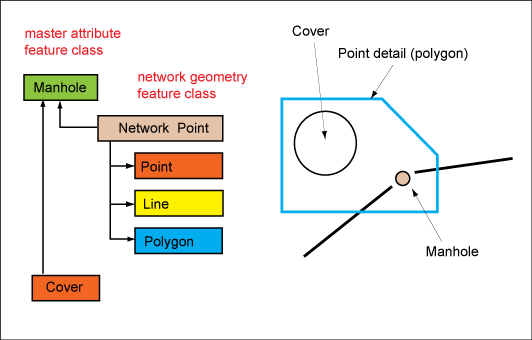

A network point can have related geometry in the drawing. Only the manhole is part of the network topology.
- Select a feature in your map. For example, a Disposal Tank.
- Right-click the Disposal Tank feature and select Attributes.
The Disposal Tank feature class form is displayed.
- In the Disposal Tank feature class form, do one of the following:
- Click Function menu
Create Point Detail. - Click Function menu Create Line Detail.
- Click Function menu Create Polygon Detail.
Follow the prompts to create the point, line or polygon detail.
- Click Function menu
Note:
You can create one polygon detail for each network point. You can add any number of point and line details.
