Save images for stamps

To create stamps with an alpha channel (RGBA) and have 16 bits per channel as their bit depth, you can use an editing application such as Adobe Photoshop.

1. Launch Photoshop.
2. Select File > New.
3. In the New window that appears, set the following options and click OK.
   • Width: As required.
   • Height: As required.
   • Color Mode: RGB Color - 16 bit
   • Background Contents: Transparent

     (Creates an alpha channel for the image.)

   • Advanced > Color Profile: Don’t Color Manage this Document

     (Ensures the file is not tagged with an existing color profile.)



   A new blank image appears in the work area. A checkered background on the canvas indicates the presence of the alpha channel.

   Note:

   The Height and Width for a stamp image can range between 256 and 512 pixels, and must be square in proportion.

4. Paint your stamp.
5. Save the image by selecting File > Save As.

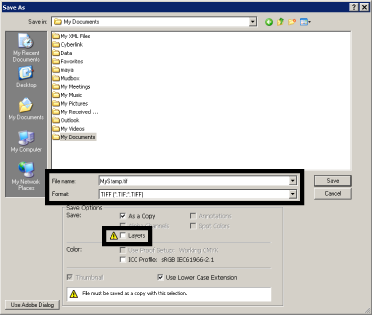

6. In the Save As window, specify a filename for the image, set the following items, then click Save.
   • Format: TIFF
   • Layers: Off

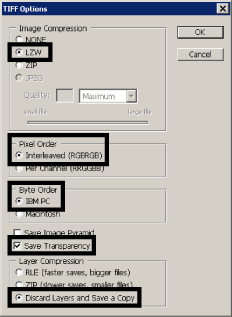

7. In the TIFF Options window that appears, set the following, then click OK.
   • Image Compression: LZW
   • Pixel Order: Interleaved (RGBRGB)
   • Byte Order: IBM PC
   • Save Transparency: On
   • Layer Compression: Discard Layers and Save a Copy
