Transform Objects with a Measure Tool

Move an Object with a Measure Tool

Select the object you want to move.
Click Review tab > Measure panel > Measure drop-down > Point Line .
Click the selected object to create the first point. This is the start point from which the repositioning will be calculated.

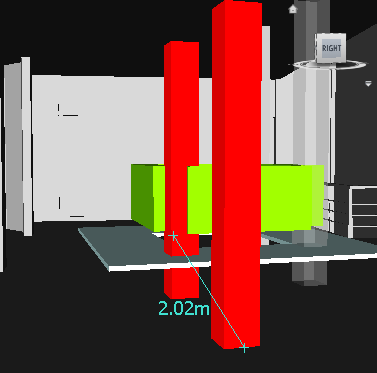

Click the second point in the scene. This is the point where the object will be moved to. There is now a line connecting the start point and the end point in the Scene View.
If you want to be able to move the object several times, create more points in the scene.

Note: You can only select a point on another object in the scene. Selecting a point in 'space' is not a valid option. To reposition an object into 'space', you can either use a translation gizmo or, if you know the distance by which the object is to be moved, by overriding its transform.
Slide out the Measure panel, and click Transform Selected Items to move the object to the second point. If you have multiple points in the scene, each time you click Transform Objects the selected object is moved to the next point.

Select the object you want to move.
Click Review tab > Measure panel > Measure drop-down > Measure Angle .
To rotate the object, click three points on the selected object to determine how the object is to be rotated (refer to the diagram below).

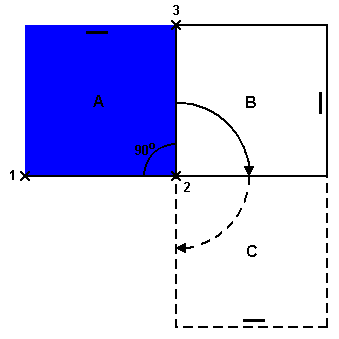

This diagram illustrates how the selected object (position A) is rotated. Lines from the first to the second point (1 to 2) and from the second to third point (2 to 3) define the angle by which the object is rotated (for example, 90 degrees). The second point (2) is used as the rotation center point.
Slide out the Measure panel, and click Transform Selected Items . This rotates the selected object from position A into position B (as shown in the previous diagram). Clicking this button again, rotates the object from position B into position C.
