To work with railings, stairs, and ladders

To create a ladder

  1. On the ribbon, click Structure tab Parts panel Ladder.
  2. To specify the bottom point of the ladder, click in the drawing area.
  3. To specify the top point of the ladder, click again in the drawing area.
  4. To specify the orientation of the ladder, click a third time in the drawing area. Press Enter.

To specify stair settings

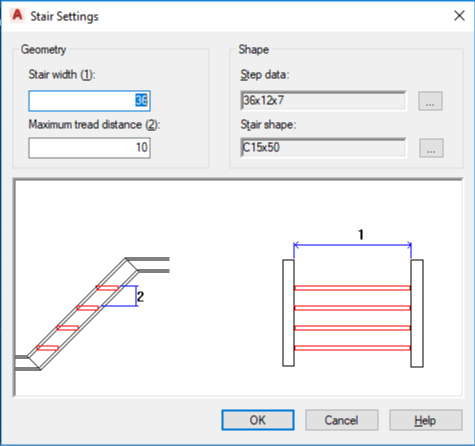

  1. On the ribbon, click Structure tab Parts panel Settings menu Stair Settings.
  2. In the Stair Settings dialog box, enter the desired geometry values.
  3. To change step data:
    • Under Shape, Step Data click the [...] button, In the Select Step dialog box, make desired changes and click OK.
  4. To change stair shape:
    • Under Shape, Stair Shape click the [...] button, In the Select Stair Shape dialog box, make desired changes and click Select.
  5. Click OK.

To explode a structural object

  1. On the ribbon, click Structure tab Modify panel Structural Explode.
  2. In the drawing area, click a structural trim object to explode.
