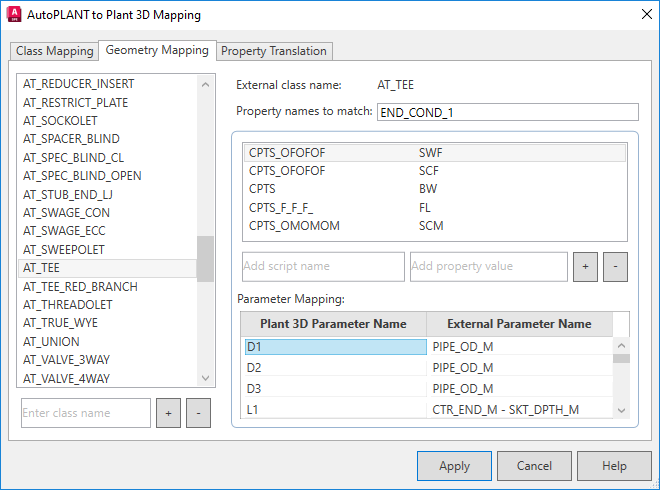

Selects graphic scripts and maps dimensional properties or parameters.
List of Options
- External Class Names List
- Lists AutoPLANT class names that can map to a Plant 3D class.
- Plus (+) Button
- Adds a new AutoPLANT class name to the External Class Names list. Enter text into the box and click the + button to add a class name.
-
Note: To reuse an existing script, right-click an existing class to copy the mapping information, then right-click the new class to paste the information. This action affects only this tab.
- Minus (-) Button
- Deletes an AutoPLANT class name from the External Class Names list.
- External Class Name
- Displays the AutoPLANT class name selected from the External Class Names list on the left pane.
- Property Names to Match
- Specifies AutoPLANT property names to match to Plant 3D endtype graphic scripts in varying contexts. For example, if the AutoPLANT ENDCOND1 is SWF, use the Plant 3D script name CPTS_OFOFOF; if it is BW, use CPTS, and so on.
- Separate multiple property names with commas.
- Add Script Name
- Adds a Plant 3D endtype graphics script name to the list.
-
- Plus (+) button. Adds a new row that includes the entered script name and property value.
- Minus (-) button. Deletes a selected row that includes the entered script name and property value.
- Add Property Value
- Adds property values for the AutoPLANT property. For example, the property is ENDCOND1 and the values are SWF, SCF, BW, and so on.

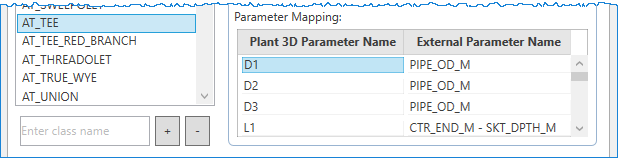

- Parameter Mapping
- Specifies parameter mapping between Plant 3D and AutoPLANT. Each geometry mapping has a corresponding set of parameters, which can vary depending on the shape.
- The image that follows shows a Plant 3D threaded female tee in the Catalog tab.
- The Plant 3D dimension parameters for the shape are listed, and you can enter them in the Parameter Mapping table in the Plant 3D Parameter Name column. You can then enter the corresponding AutoPLANT property name (or value).
- For example, for the selected mapping in the pane above, for the Plant 3D D1 parameter, use the AutoPLANT PIPEODM; for D2, use the same, and so on.
- Plant 3D Parameter Name. Specifies the Plant 3D graphic script dimension parameter to map to the AutoPLANT parameter.
- External Parameter Name or Value. Specifies the AutoPLANT parameter name, expression, or value to map to the Plant 3D parameter.
