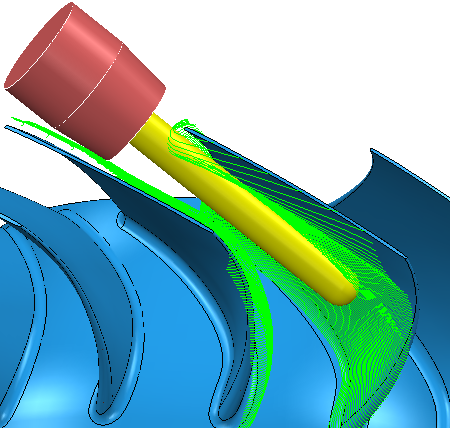

To change the view relative to the active Tool

Use the options on the View tab > Views panel > Tool menu to change the view to be relative to the active Tool instead of the active Workplane.

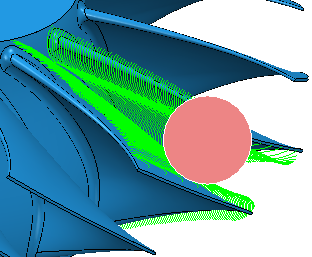

  • Down Axis — Click to change the view to one that looks down the Tool axis.

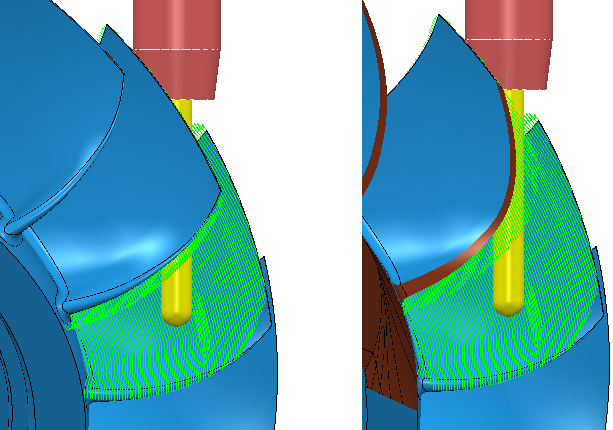

  • From Side — Click to change the view to one with the Tool vertical.
