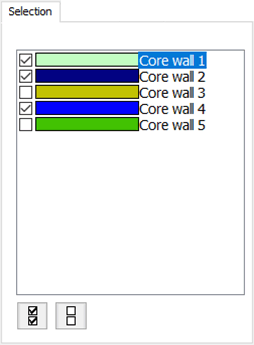

When the Selection tab is selected on the Diagrams for Core walls dialog, the following displays:
Select the core walls from the list for which the diagrams are displayed. The buttons at the bottom of the Selection tab allow you to select all or deselect all core walls.
