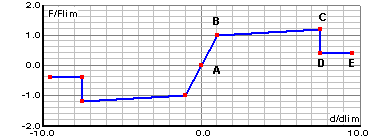

Hinge parameters:
- The slope between points B and C is 3% strain hardening.
- Points C, D, and E based on FEMA 273 (table 5.4) for b/2tf < 52/(Fyc)^1/2.
Bending
