Change Fascia Mitering

When the fascia on a gable end of a roof does not wrap the corner, the end is mitered. You can specify the mitering option: vertical, horizontal, or perpendicular.

The mitering options of a fascia can not be changed if the fascia either wraps a corner, or is not on a gable end.

1. In the drawing area, select the fascia.
2. Click Modify | Fascias tabRoof Fascia panel (Modify Mitering).
3. On the Mitering panel, select a mitering option:
   • Vertical
   • Horizontal
   • Perpendicular
4. Click on the end face of the fascia to change the miter option.


   Vertical miter

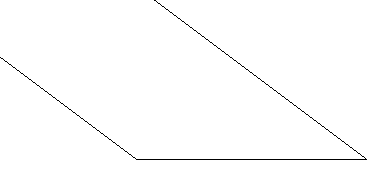

   Horizontal miter

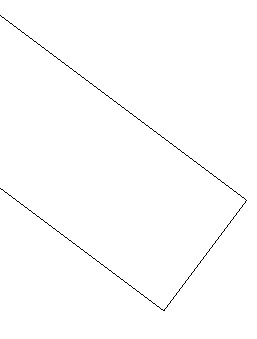

   Perpendicular miter

5. Press Esc to exit the Modify Mitering tool.

Gable end fascias are mitered to match the rafter cut of the roof.
