Create new finished architectural walls in a room using a wall segment or within a room's boundaries.
Video: Place by Room/Place by Segment
In Revit 2026.3 the limitation requiring the selected walls to be room bounding has been removed. You are now able to use any walls in your model or walls from linked models to create walls by room or by segment.

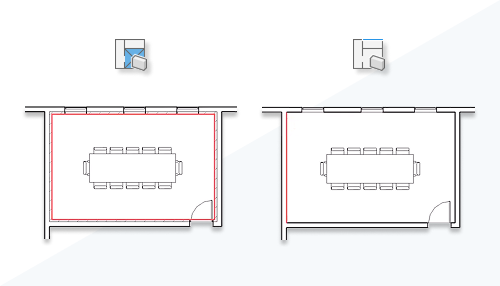

- Pick a closed area formed by walls and columns, enabling new walls within this room to be created with one click.
or
- Pick existing segments of walls and columns to create new walls.
Newly created walls will be adjacent to the targeted wall or column face, improving efficiency and productivity in creating multiple walls for core and finish.
For additional information, see Create Walls By Wall Segment or By Room.
