Run an Analysis and Explore results

In this tutorial, you learn how to start the analysis process and how to display the results of this analysis.

This tutorial should take about 10 minutes.

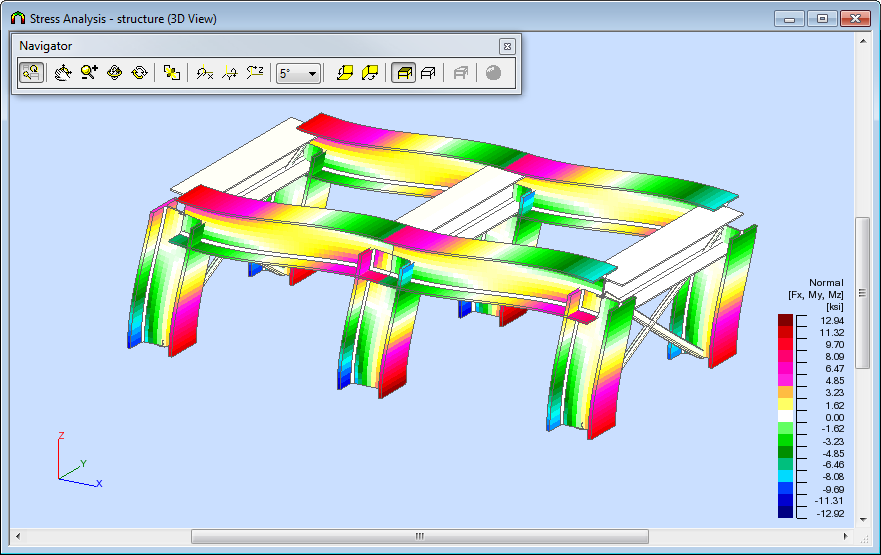

The stress maps for 3D structure is shown below.

Click here to start this tutorial.

Tasks list:

  1. Run a calculation
    Learn how to start the analysis process (linear static).
  2. Display beam results graphically
    Learn how to display bending moments on beams for a selected load case.
  3. Display results on bars in tabular form
    Learn how to display internal forces and displacements for particular load cases and combinations.
  4. Stress Analysis for Structure
    Learn how to obtain and analyze stress diagrams/maps for the structure
  5. Summary
    Congratulations! You have completed this tutorial.
