To define a scenario area of interest and home position

Scenarios often focus on a portion of a larger model. Define an area of interest in a scenario to improve performance and focus attention.

1. Open the model.
2. Click to open the Scenario Browser.
3. Click to open the Scenario Editor for a new scenario.

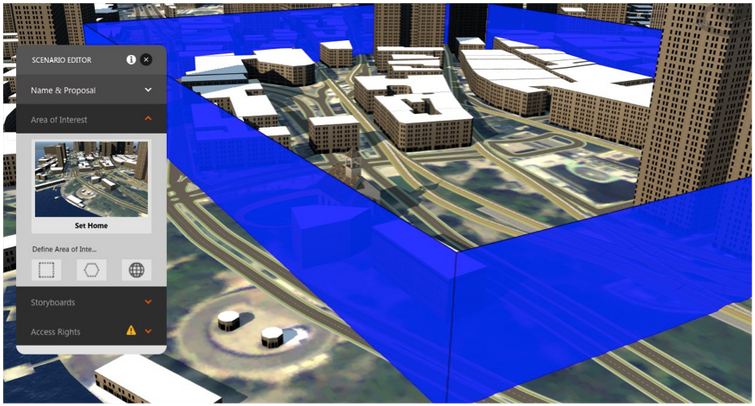

4. On the Scenario Editor asset card, click Area of Interest.
5. Select type of point identification box: rectangle, polygon, or entire model.

   Use entire model with caution, especially for large models.

6. Draw the area of interest. Double-click to finish.

   To cancel drawing, press Esc twice.

Set Home position

Your viewers can always return to the Home position after navigating scenario.

1. Click Set Home.
2. Zoom and pan to desired position, press Enter.

   To cancel, press Esc.
