Mtl Class Reference

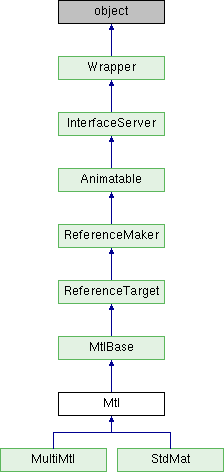

Inheritance diagram for Mtl:

Public Member Functions
def	CombineMaterials (*args)
def	CopySubMtl (self, *args)
def	GetActiveTexmap (self)
def	GetAmbient (self, mtlNum=0, backFace=True)
def	GetDiffuse (self, mtlNum=0, backFace=True)
def	GetNumSubMtls (self)
def	GetSelfIllum (self, mtlNum=0, backFace=True)
def	GetSelfIllumColor (self, mtlNum=0, backFace=True)
def	GetSelfIllumColorOn (self, mtlNum=0, backFace=True)
def	GetShininess (self, mtlNum=0, backFace=True)
def	GetShinyStrength (self, mtlNum=0, backFace=True)
def	GetSpecular (self, mtlNum=0, backFace=True)
def	GetSubMtl (self, *args)
def	GetSubMtlSlotName (self, *args)
def	GetSubMtlTVName (self, *args)
def	GetWireSize (self, mtlNum=0, backFace=True)
def	GetXParency (self, mtlNum=0, backFace=True)
def	SetActiveTexmap (self, *args)
def	SetAmbient (self, *args)
def	SetDiffuse (self, *args)
def	SetShininess (self, *args)
def	SetSpecular (self, *args)
def	SetSubMtl (self, *args)
def	SupportsRenderElements (self)
def	SupportsShaders (self)
def	VPDisplaySubMtl (self)
Public Member Functions inherited from MtlBase
def	ActivateTexDisplay (self, *args)
def	AnyMulti (self)
def	ClearMtlFlag (self, *args)
def	DeactivateMapsInTree (self)
def	GetActiveMB (self)
def	GetFullName (self)
def	GetGBufID (self)
def	GetMeditObjType (self)
def	GetMEditRotate (self)
def	GetMeditTiling (self)
def	GetName (self)
def	GetRefTarget (self)
def	GetTransparencyHint (self, *args)
def	IsMultiMtl (self)
def	LocalMappingsRequired (self, *args)
def	LocalRequirements (self, *args)
def	MappingsRequired (self, *args)
def	MapSlotType (self, *args)
def	Requirements (self, *args)
def	Reset (self)
def	SetActiveMB (self, *args)
def	SetGBufID (self, *args)
def	SetMeditObjType (self, *args)
def	SetMeditTiling (self, *args)
def	SetMtlFlag (self, *args)
def	SetName (self, *args)
def	SupportsMultiMapsInViewport (self)
def	SupportTexDisplay (self)
def	TestMtlFlag (self, *args)
def	TextureDisplayEnabled (self)
def	Update (self, *args)
def	Validity (self, *args)
Public Member Functions inherited from ReferenceTarget
def	FindDependentNode (self)
def	MaybeAutoDelete (self)
def	NotifyTarget (self, *args)
Public Member Functions inherited from ReferenceMaker
def	ClearFlagInHierarchy (self, *args)
def	DeleteMe (self)
def	DeleteReference (self, *args)
def	FindRef (self, *args)
def	GetNumRefs (self)
def	GetReference (self, *args)
def	NotifyChanged (self)
def	NotifyDependents (self, *args)
def	ReplaceReference (self, *args)
def	RescaleWorldUnits (self, *args)
Public Member Functions inherited from Animatable
def	AddNewKey (self, *args)
def	AssignController (self, *args)
def	CanAssignController (self, *args)
def	CanCopyAnim (self)
def	CanCopyTrack (self, *args)
def	CanDeleteSubAnim (self, *args)
def	CanMakeUnique (self)
def	ClearAFlag (self, *args)
def	ClearAFlagEx (self, *args)
def	ClearAllAppData (self)
def	ClearFlagBit (self, *args)
def	ClearFlagInAllAnimatables (*args)
def	CopyKeysFromTime (self, *args)
def	DeleteAppData (self, *args)
def	DeleteKeyAtTime (self, *args)
def	DeleteKeyByIndex (self, *args)
def	DeleteKeys (self, *args)
def	DeleteSubAnim (self, *args)
def	DeleteTime (self, *args)
def	DoesSupportTimeOperations (self)
def	EditTimeRange (self, *args)
def	FreeCaches (self)
def	GetAnimByHandle (*args)
def	GetAnimHandle (self)
def	GetAppData (self, *args)
def	GetClassID (self)
def	GetClassName (self)
def	GetCustomAttributeContainer (self)
def	GetHasSubElements (self, type=0)
def	GetKeyIndex (self, *args)
def	GetKeyTime (self, *args)
def	GetNextKeyTime (self, *args)
def	GetNodeName (self)
def	GetNumKeys (self)
def	GetNumSubAnims (self)
def	GetParameterBlock (self)
def	GetSubAnim (self, *args)
def	GetSubAnimName (self, *args)
def	GetSuperClassID (self)
def	GetTimeRange (self, *args)
def	InsertTime (self, *args)
def	IsAnimated (self)
def	IsKeyAtTime (self, *args)
def	IsSubClassOf (self, *args)
def	MoveKeys (self, *args)
def	ReverseTime (self, *args)
def	ScaleKeyValues (self, *args)
def	ScaleTime (self, *args)
def	SetAFlag (self, *args)
def	SetAFlagEx (self, *args)
def	SetAppData (self, *args)
def	SetFlagBit (self, *args)
def	SubNumToRefNum (self, *args)
def	TestAFlag (self, *args)
def	TestAFlagEx (self, *args)
def	TestFlagBit (self, *args)
Public Member Functions inherited from InterfaceServer
def	GetInterface (self, *args)
Public Member Functions inherited from Wrapper
def	GetUnwrappedPtr (self)

Static Public Attributes
	Ambient = _swig_property(GetAmbient, SetAmbient)
	CombineMaterials = staticmethod(CombineMaterials)
	Diffuse = _swig_property(GetDiffuse, SetDiffuse)
	SelfIllumColor = _swig_property(GetSelfIllumColor, SetSpecular)
	Shininess = _swig_property(GetShininess, SetShininess)
	Specular = _swig_property(GetSpecular, SetSpecular)
	SubMtls = _swig_property(lambda self: (self.GetSubMtl(i) for i in xrange(self.GetNumSubMtls())))
	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from MtlBase
	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from ReferenceTarget
	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from ReferenceMaker
	NumRefs = _swig_property(GetNumRefs)
	Refs = _swig_property(lambda self: (self.GetReference(i) for i in xrange(self.GetNumRefs())))
	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from Animatable
	AnimHandle = _swig_property(GetAnimHandle)
	ClassID = _swig_property(GetClassID)
	ClearFlagInAllAnimatables = staticmethod(ClearFlagInAllAnimatables)
	GetAnimByHandle = staticmethod(GetAnimByHandle)
	KeyTimes = _swig_property(lambda self: (self.GetKeyTime(i) for i in xrange(self.GetNumKeys())))
	NodeName = _swig_property(GetNodeName)
	NumSubAnims = _swig_property(GetNumSubAnims)
	ParameterBlock = _swig_property(GetParameterBlock)
	SubAnimNames = _swig_property(lambda self: (self.GetSubAnimName(i) for i in xrange(self.GetNumSubAnims())))
	SubAnims = _swig_property(lambda self: (self.GetSubAnim(i) for i in xrange(self.GetNumSubAnims())))
	SuperClassID = _swig_property(GetSuperClassID)
	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from InterfaceServer
	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from Wrapper
	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')

Detailed Description

Material base class.

Member Function Documentation

CombineMaterials()

def CombineMaterials

(

*

args

)

CombineMaterials(Mtl mat1, Mtl mat2, int & mat2Offset) -> Mtl

CopySubMtl()

def CopySubMtl	(		self,
		*	args
	)

CopySubMtl(Mtl self, HWND hwnd, int ifrom, int ito)

GetActiveTexmap()

def GetActiveTexmap

(

self

)

GetActiveTexmap(Mtl self) -> MtlBase

GetAmbient()

def GetAmbient	(		self,
			mtlNum = 0,
			backFace = True
	)

GetAmbient(Mtl self, int mtlNum=0, bool backFace=True) -> Color
GetAmbient(Mtl self, int mtlNum=0) -> Color
GetAmbient(Mtl self) -> Color

GetDiffuse()

def GetDiffuse	(		self,
			mtlNum = 0,
			backFace = True
	)

GetDiffuse(Mtl self, int mtlNum=0, bool backFace=True) -> Color
GetDiffuse(Mtl self, int mtlNum=0) -> Color
GetDiffuse(Mtl self) -> Color

GetNumSubMtls()

def GetNumSubMtls

(

self

)

GetNumSubMtls(Mtl self) -> int

GetSelfIllum()

def GetSelfIllum	(		self,
			mtlNum = 0,
			backFace = True
	)

GetSelfIllum(Mtl self, int mtlNum=0, bool backFace=True) -> float
GetSelfIllum(Mtl self, int mtlNum=0) -> float
GetSelfIllum(Mtl self) -> float

GetSelfIllumColor()

def GetSelfIllumColor	(		self,
			mtlNum = 0,
			backFace = True
	)

GetSelfIllumColor(Mtl self, int mtlNum=0, bool backFace=True) -> Color
GetSelfIllumColor(Mtl self, int mtlNum=0) -> Color
GetSelfIllumColor(Mtl self) -> Color

GetSelfIllumColorOn()

def GetSelfIllumColorOn	(		self,
			mtlNum = 0,
			backFace = True
	)

GetSelfIllumColorOn(Mtl self, int mtlNum=0, bool backFace=True) -> bool
GetSelfIllumColorOn(Mtl self, int mtlNum=0) -> bool
GetSelfIllumColorOn(Mtl self) -> bool

GetShininess()

def GetShininess	(		self,
			mtlNum = 0,
			backFace = True
	)

GetShininess(Mtl self, int mtlNum=0, bool backFace=True) -> float
GetShininess(Mtl self, int mtlNum=0) -> float
GetShininess(Mtl self) -> float

GetShinyStrength()

def GetShinyStrength	(		self,
			mtlNum = 0,
			backFace = True
	)

GetShinyStrength(Mtl self, int mtlNum=0, bool backFace=True) -> float
GetShinyStrength(Mtl self, int mtlNum=0) -> float
GetShinyStrength(Mtl self) -> float

GetSpecular()

def GetSpecular	(		self,
			mtlNum = 0,
			backFace = True
	)

GetSpecular(Mtl self, int mtlNum=0, bool backFace=True) -> Color
GetSpecular(Mtl self, int mtlNum=0) -> Color
GetSpecular(Mtl self) -> Color

GetSubMtl()

def GetSubMtl	(		self,
		*	args
	)

GetSubMtl(Mtl self, int i) -> Mtl

GetSubMtlSlotName()

def GetSubMtlSlotName	(		self,
		*	args
	)

GetSubMtlSlotName(Mtl self, int i) -> WStr

GetSubMtlTVName()

def GetSubMtlTVName	(		self,
		*	args
	)

GetSubMtlTVName(Mtl self, int i) -> WStr

GetWireSize()

def GetWireSize	(		self,
			mtlNum = 0,
			backFace = True
	)

GetWireSize(Mtl self, int mtlNum=0, bool backFace=True) -> float
GetWireSize(Mtl self, int mtlNum=0) -> float
GetWireSize(Mtl self) -> float

GetXParency()

def GetXParency	(		self,
			mtlNum = 0,
			backFace = True
	)

GetXParency(Mtl self, int mtlNum=0, bool backFace=True) -> float
GetXParency(Mtl self, int mtlNum=0) -> float
GetXParency(Mtl self) -> float

SetActiveTexmap()

def SetActiveTexmap	(		self,
		*	args
	)

SetActiveTexmap(Mtl self, MtlBase txm)

SetAmbient()

def SetAmbient	(		self,
		*	args
	)

SetAmbient(Mtl self, Color c, TimeValue t=Autodesk::Max::Now())
SetAmbient(Mtl self, Color c)

SetDiffuse()

def SetDiffuse	(		self,
		*	args
	)

SetDiffuse(Mtl self, Color c, TimeValue t=Autodesk::Max::Now())
SetDiffuse(Mtl self, Color c)

SetShininess()

def SetShininess	(		self,
		*	args
	)

SetShininess(Mtl self, float v, TimeValue t=Autodesk::Max::Now())
SetShininess(Mtl self, float v)

SetSpecular()

def SetSpecular	(		self,
		*	args
	)

SetSpecular(Mtl self, Color c, TimeValue t=Autodesk::Max::Now())
SetSpecular(Mtl self, Color c)

SetSubMtl()

def SetSubMtl	(		self,
		*	args
	)

SetSubMtl(Mtl self, int i, Mtl m)

SupportsRenderElements()

def SupportsRenderElements

(

self

)

SupportsRenderElements(Mtl self) -> bool

SupportsShaders()

def SupportsShaders

(

self

)

SupportsShaders(Mtl self) -> bool

VPDisplaySubMtl()

def VPDisplaySubMtl

(

self

)

VPDisplaySubMtl(Mtl self) -> int
