Geometry class. More...

#include <fbgeometry.h>

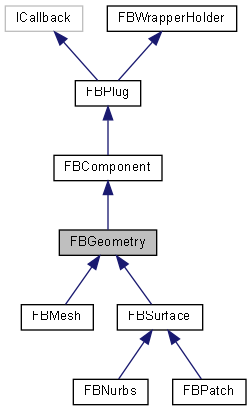

Inheritance diagram for FBGeometry:

[legend]

Public Member Functions
Simple Geometry Editing Interface:
Geometries created with SDK can only use the kFBGeometryMapping_ALL_SAME or kFBGeometryMapping_BY_POLYGON mapping mode for material, kFBGeometryMapping_BY_CONTROL_POINT / kFBGeometryReference_DIRECT for Normal, UV, Color, Tangent and Binormal. And only support one set of UV
bool	GeometryBegin ()
	Begin geometry editing. More...

bool	GeometryEnd ()
	End geometry editing. More...

bool	IsEditingEnabled () const
	Is geometry editing enabled. More...

void	VertexInit (int pSize, bool pResize, bool pInitUV=true, bool pInitVertexColor=false)
	Resize or Reserve vertex, normal and UV array for performance. More...

bool	VertexClear ()
	Clear all Vertex arrays. More...

int	VertexAdd (FBVertex pVertex)
	Add a vertex. More...

int	VertexAdd (FBVertex pVertex, FBNormal pNormal)
	Add a vertex. More...

int	VertexAdd (FBVertex pVertex, FBNormal pNormal, FBUV pUV)
	Add a vertex. More...

int	VertexAdd (FBVertex pVertex, FBNormal pNormal, FBUV pUV, FBColorF pVertexColor)
	Add a vertex. More...

int	VertexAdd (double px, double py, double pz)
	Add a vertex. More...

int	VertexAdd (double px, double py, double pz, double nx, double ny, double nz)
	Begin geometry editing. More...

int	VertexAdd (double px, double py, double pz, double nx, double ny, double nz, double UVu, double UVv)
	Begin geometry editing. More...

int	VertexAdd (double px, double py, double pz, double nx, double ny, double nz, double UVu, double UVv, double pRed, double pGreen, double pBlue, double pAlpha)
	Begin geometry editing. More...

bool	VertexSet (FBVertex pVertex, int pIndex=-1)
	Set a vertex. More...

bool	VertexSet (double px, double py, double pz, int pIndex=-1)
	Set a vertex. More...

bool	VertexNormalSet (FBNormal pVertex, int pIndex=-1)
	Set a normal at a vertex. More...

bool	VertexNormalSet (double px, double py, double pz, int pIndex=-1)
	Set a normal at a vertex. More...

bool	VertexUVSet (FBUV pUV, int pIndex=-1)
	Set a UV coordinate. More...

bool	VertexUVSet (float pU, float pV, int pIndex=-1)
	Set a UV coordinate. More...

bool	VertexColorSet (FBColorF pColor, int pIndex=-1)
	Set a Vertex Color. More...

bool	VertexColorSet (float pRed, float pGreen, float pBlue, float pAlpha, int pIndex=-1)
	Set a UV coordinate. More...

Query interface for Vertex's Position, Normal, UV of default set.
int	VertexCount () const
	Get the number of vertices in the geometry. More...

FBVertex	VertexGet (int pIndex) const
	Get a vertex. More...

FBVertex *	GetVertexes () const
	Get a pointer to the array of vertexes. More...

FBNormal	VertexNormalGet (int pIndex=-1) const
	Get a normal at a vertex. More...

FBUV	VertexUVGet (int pIndex=-1) const
	Get a UV coordinate. More...

FBColorF	VertexColorGet (int pIndex=-1) const
	Get a Vertex Color. More...

Vertex Selection/Manipulation Interface.
bool	VertexGetSelected (int pIndex)
	Get the selected state of a vertex. More...

bool	VertexSetSelected (int pIndex, bool pState)
	Set the selected state of a vertex. More...

bool	VertexGetVisible (int pIndex)
	Get the visible state of a vertex. More...

bool	VertexSetVisible (int pIndex, bool pState)
	Set the visible state of a vertex. More...

bool	VertexGetTransformable (int pIndex)
	Get the Transformable state of a vertex. More...

Shape Management Interface
int	ShapeGetCount () const
	Get Shape Count. More...

const char *	ShapeGetName (int pShapeIdx) const
	Return the shape Name. More...

int	ShapeAdd (const char *pName)
	Add new shape. More...

void	ShapeClearAll ()
	Clears all the shapes. More...

void	ShapeInit (int pShapeIdx, int pDiffSize, bool pWithNormal=false)
	Init the shape. More...

int	ShapeGetDiffPointCount (int pShapeIdx) const
	Return the shape's total diff points count. More...

bool	ShapeSetDiffPoint (int pShapeIdx, int pDiffIndex, int pOriIndex, const FBVertex &pPosDiff)
	Set the differentiate point. More...

bool	ShapeSetDiffPoint (int pShapeIdx, int pDiffIndex, int pOriIndex, const FBVertex &pPosDiff, const FBNormal &pNormalDiff)
	Set the differentiate point. More...

bool	ShapeGetDiffPoint (int pShapeIdx, int pDiffIndex, int &pOriIndex, FBVertex &pPosDiff) const
	Get the differentiate point. More...

bool	ShapeGetDiffPoint (int pShapeIdx, int pDiffIndex, int &pOriIndex, FBVertex &pPosDiff, FBNormal &pNormalDiff) const
	Get the differentiate point. More...

Geometry Editing Notification
void	ModifyNotify (kFBGeometryUpdateFlags pFlags=kFBGeometryUpdateAll, int pFirstIndex=-1, int pLastIndex=-1)
	The geometry has change, update the necessary flags. More...

Public Member Functions inherited from FBComponent
	FBComponent (HIObject pObject)
	Constructor. More...

virtual	~FBComponent ()
	Destructor. More...

virtual bool	FBCreate ()
	Open Reality Creation function. More...

virtual void	FBDestroy ()
	Open Reality destruction function. More...

virtual void	FBDelete () override
	Open Reality deletion function. More...

virtual bool	SetHIObject (HIObject pObject, bool pSDKComponent) override
	Assign component to an internal pointer. More...

virtual int	PropertyAdd (FBProperty *pProperty)
	Add a property to the component's property manager. More...

bool	PropertyAddReferenceProperty (FBProperty *pReferenceProperty)
	Add a reference property to the component's property manager. More...

void	PropertyRemove (FBProperty *pProperty)
	Remove a Property from the component's Property manager. More...

void	PropertyGetModifiedList (FBArrayTemplate< FBProperty * > &pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading. More...

FBProperty *	PropertyCreate (const char pName, FBPropertyType pType, const char pDataType, bool pAnimatable, bool pIsUser=false, FBProperty *pReferenceSource=NULL)
	Create user or dynamic property. More...

FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated). More...

void	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags. More...

bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled. More...

void	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags. More...

void	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags. More...

void	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status. More...

bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled. More...

bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, const char pNamespaceName, const char pReplaceTo=NULL, bool pAddRight=true)
	ProcessNamespaceHierarchy. More...

bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, const char pNamespaceName, const char pReplaceTo=NULL, bool pAddRight=true)
	ProcessObjectNamespace. More...

virtual const char *	ClassName () override
	Get the class name. More...

virtual bool	UseCustomPropertyViewSet () const
	Use the custom property viewSet or not. More...

const char *	GetFullName (void)
	Get the full name. More...

void	SetOwnerNamespace (FBNamespace *pOwnerNSObj)
	Set the owner Namespace object. More...

FBNamespace *	GetOwnerNamespace (void)
	Get the owner Namespace object. More...

FBFileReference *	GetOwnerFileReference (void)
	Get the owner FileReference object. More...

void	HardSelect ()
	HardSelect. More...

virtual bool	Is (int pTypeId) override
	Returns true if object is of type TypeId. More...

virtual int	GetTypeId () override
	GetTypeId( int pTypeId ) More...

Public Member Functions inherited from FBWrapperHolder
FBScriptWrapper *	GetWrapper ()
	Return the wrapper interface of this FBObject. More...

void	AddWrapper (FBScriptWrapper *)

void	RemoveWrapper (FBScriptWrapper *)

Protected Member Functions
	FBGeometry (const char *pName, HIObject pObject=NULL)
	Constructor. More...

Protected Member Functions inherited from FBPlug
bool	IsSDKComponent ()
	Return whether or not item is an SDK component. More...

bool	ConnectSrc (FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection. More...

bool	ConnectDst (FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection. More...

bool	ConnectSrcAt (int pDst_SrcIndex, FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection. More...

bool	ConnectDstAt (int pSrc_DstIndex, FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection. More...

bool	DisconnectDst (FBPlug *pDst)
	Remove a destination connection. More...

bool	DisconnectSrc (FBPlug *pSrc)
	Remove a source connection. More...

void	DisconnectAllSrc ()
	Remove all source connections. More...

void	DisconnectAllDst ()
	Remove all destination connections. More...

bool	DisconnectDstAt (int pIndex)
	Remove a destination connection at a specified index. More...

bool	DisconnectSrcAt (int pIndex)
	Remove a source connection at a specified index. More...

bool	ReplaceDstAt (int pIndex, FBPlug *pDst)
	Replace a destination connection at a specified index. More...

bool	ReplaceSrcAt (int pIndex, FBPlug *pSrc)
	Replace a source connection at a specified index. More...

bool	SwapSrc (int pIndexA, int pIndexB)
	Swap source connection at index A with source connection at index B. More...

bool	MoveSrcAt (int pIndex, int pAtIndex)
	Move source connection at pIndex to pAtIndex. More...

bool	MoveSrcAt (FBPlug pSrc, FBPlug pAtSrc)
	Move source connection pSrc to the position of pAtSrc. More...

int	GetSrcCount ()
	Get source connection count. More...

FBPlug *	GetSrc (int pIndex)
	Get a source connection's plug at specified index. More...

FBConnectionType	GetSrcType (int pIndex)
	Get a source connection's type at specified index. More...

int	GetDstCount ()
	Get destination connection count. More...

FBPlug *	GetDst (int pIndex)
	Get a destination connection's plug at specified index. More...

FBConnectionType	GetDstType (int pIndex)
	Get a destination connection's type at specified index. More...

bool	BeginChange ()
	Begins a change on multiple plugs. More...

void	EndChange ()
	Ends a change on multiple plugs. More...

void	SetSelfModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's self modification flag. More...

bool	GetSelfModified (FBPlugModificationFlag pFlag)
	Tell if the plug's self has changed. More...

void	SetContentModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's owned property/object's modification flag. More...

bool	GetContentModified (FBPlugModificationFlag pFlag)
	Tell if the plug's content has changed. More...

int	GetPlugConnectionModifiedList (FBPlugList &pPlugList, FBPlugModificationFlag pConnectionModificatonFlag, bool pAddRemove)
	Get plug's modified src/dst property/object connection added/removed List. More...

bool	RevertModification (FBPlugModificationFlag pFlag=kFBAllModifiedMask)
	Revert the plug's modification to original status. More...

void	SetStatusFlag (FBPlugStatusFlag pStatus, bool pValue)
	Set the plug's status flag. More...

bool	GetStatusFlag (FBPlugStatusFlag pStatus) const
	Tell if the plug's status has changed. More...

FBPlug *	GetOwner ()
	Get the owner of this plug. More...

FBPlug *	GetOwned (int pIndex)
	Get the owned plug at specified index. More...

int	GetOwnedCount ()
	Get the owned plug count. More...

virtual bool	PlugDataNotify (FBConnectionAction pAction, FBPlug pThis, void pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugDataNotify when overloaded is equivalent of FBSystem.OnConnectionDataNotify but in the context of the derived object only. More...

virtual bool	PlugStateNotify (FBConnectionAction pAction, FBPlug pThis, void pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugStateNotify when overloaded is equivalent of FBSystem.OnConnectionStateNotify but in the context of the derived object only. More...

virtual bool	PlugNotify (FBConnectionAction pAction, FBPlug pThis, int pIndex, FBPlug pPlug=NULL, FBConnectionType pConnectionType=kFBConnectionTypeNone, FBPlug *pNewPlug=NULL)
	PlugNotify when overloaded is equivalent of FBSystem.OnConnectionNotify but in the context of the derived object only. More...

Interface for direct manipulating Geometry Position, Normal, Color, UV and Material arrays.
FBPropertyGeometryMappingMode	NormalMappingMode
	Read Only Property: Normal mapping mode. More...

FBPropertyGeometryReferenceMode	NormalReferenceMode
	Read Only Property: Normal reference mode. More...

FBPropertyGeometryMappingMode	TangentMappingMode
	Read Only Property: Tangent mapping mode. More...

FBPropertyGeometryReferenceMode	TangentReferenceMode
	Read Only Property: Tangent reference mode. More...

FBPropertyGeometryMappingMode	BinormalMappingMode
	Read Only Property: Binormal mapping mode. More...

FBPropertyGeometryReferenceMode	BinormalReferenceMode
	Read Only Property: Binormal reference mode. More...

FBPropertyGeometryMappingMode	VertexColorMappingMode
	Read Only Property: Vertex Color mapping mode. More...

FBPropertyGeometryReferenceMode	VertexColorReferenceMode
	Read Only Property: Vertex Color reference mode. More...

FBPropertyGeometryMappingMode	MaterialMappingMode
	Read Property: Material mapping mode. More...

bool	VertexArrayInit (int pVertexcount, bool pUniqueMaterial, unsigned int pFBGeometryArrayIDs=0)
	Init geometry vertex arrays. More...

bool	VertexArrayClear ()
	Clear all geometry vertex arrays. More...

FBVertex *	GetPositionsArray (int &pOutArrayCount) const
	Get a pointer to the position array. More...

int *	GetNormalsIndexArray (int &pOutArrayCount) const
	Get a pointer to the index array of normals. More...

FBNormal *	GetNormalsDirectArray (int &pOutArrayCount) const
	Get a pointer to the direct array of normals. More...

int *	GetTangentsIndexArray (int &pOutArrayCount) const
	Get a pointer to the index array of tangents. More...

FBNormal *	GetTangentsDirectArray (int &pOutArrayCount) const
	Get a pointer to the direct array of tangents. More...

int *	GetBinormalsIndexArray (int &pOutArrayCount) const
	Get a pointer to the index array of binormals. More...

FBNormal *	GetBinormalsDirectArray (int &pOutArrayCount) const
	Get a pointer to the direct array of binormals. More...

int *	GetVertexColorsIndexArray (int &pOutArrayCount) const
	Get a pointer to the index array of vertex color. More...

FBColorF *	GetVertexColorsDirectArray (int &pOutArrayCount) const
	Get a pointer to the direct array of vertex color. More...

FBStringList	GetUVSets () const
	Get available UVSet name. More...

FBGeometryMappingMode	GetUVSetMappingMode (const char *pUVSetName=NULL) const
	Get UVSet mapping mode. More...

FBGeometryReferenceMode	GetUVSetReferenceMode (const char *pUVSetName=NULL) const
	Get UVSet reference mode. More...

int *	GetUVSetIndexArray (int &pOutArrayCount, const char *pUVSetName=NULL) const
	Get a pointer to the index array of UVset. More...

FBUV *	GetUVSetDirectArray (int &pOutArrayCount, const char *pUVSetName=NULL) const
	Get a pointer to the direct array of UVset Modify array value will be only effective when geometry editing is enabled. More...

int *	GetMaterialIndexArray (int &pOutArrayCount) const
	Get a pointer to the index array of Material. More...

Additional Inherited Members
Static Public Member Functions inherited from FBComponent
static int	GetInternalClassId ()

static void	FBComponentSetName (FBComponent pObject, const char pName)

static const char *	FBComponentGetName (FBComponent *pObject)

static void	FBComponentSetLongName (FBComponent pObject, const char pName)

static const char *	FBComponentGetLongName (FBComponent *pObject)

Public Attributes inherited from FBComponent
FBPropertyManager	PropertyList
	Read Only Property: Manages all of the properties for the component. More...

FBPropertyListComponent	Components
	List: List of components. More...

FBPropertyListComponent	Parents
	List: Parents. More...

FBPropertyBool	Selected
	Read Write Property: Selected property. More...

FBPropertyString	Name
	Read Write Property: Unique name of object. More...

FBPropertyString	LongName
	Read Write Property: Name and namespace for object. More...

FBPropertyFolder	Folder
	Read Write Property: The folder that contain this component. More...

Static Public Attributes inherited from FBComponent
static int	TypeInfo
	Contains the Type information of the object. More...

Static Protected Member Functions inherited from FBPlug
static int	GetInternalClassId ()
	Internal class Id. More...

Protected Attributes inherited from FBPlug
bool	mAllocated
	Contain the Allocation State of the Component. More...

HIObject	mObject
	Handle on the Plug. More...

bool	mSDKComponent
	bool Plug is an SDK component. More...

Static Protected Attributes inherited from FBPlug
static const char *	ClassGroupName
	ClassGroupName of the object. More...

static int	TypeInfo
	TypeInfo. More...

static int	mGlobalTypeInfo
	Represente the Type Index. More...

Detailed Description

Geometry class.

This class groups all geometry related elements which are shared across the different subclasses (FBMesh, FBSurface, FBNurbs and FBPatch). Geometry Material always use kFBGeometryReference_INDEX mode. While Normal, UV could have different combination of mapping and reference modes.

Geometries created with SDK can support FBGeometryMapping_ALL_SAME or kFBGeometryMapping_BY_POLYGON for material, and kFBGeometryMapping_BY_CONTROL_POINT for Normal, Tangent, Binormal, Color and UV. Only one set of UV could be supported.

Geometries passed from FBXSDK pipeline could have various complex mapping/reference mode combination for material, normal and UV. And could potentially contains multiple set of UVs.

Definition at line 168 of file fbgeometry.h.

Constructor & Destructor Documentation

◆ FBGeometry()

FBGeometry	(	const char *	pName,
		HIObject	pObject = `NULL`
	)

protected

Constructor.

Parameters

pName	Name of Geometry.
pObject	For internal use only(default=NULL).

Member Function Documentation

◆ GeometryBegin()

bool GeometryBegin ( )

Begin geometry editing.

Returns: true if successful.

◆ GeometryEnd()

bool GeometryEnd ( )

End geometry editing.

Returns: true if successful.

◆ GetBinormalsDirectArray()

FBNormal* GetBinormalsDirectArray ( int & pOutArrayCount ) const

Get a pointer to the direct array of binormals.

Modify array value will be only effective when geometry editing is enabled.

See also: GeometryBegin()/GeometryEnd()

Parameters

pOutArrayCount To return the length the array.

Returns: Pointer to direct array of binormals, or NULL if the array hasn't been allocated yet.

◆ GetBinormalsIndexArray()

int* GetBinormalsIndexArray ( int & pOutArrayCount ) const

Get a pointer to the index array of binormals.

Modify array value will be only effective when geometry editing is enabled.

See also: GeometryBegin()/GeometryEnd()

Parameters

pOutArrayCount To return the length the array.

Returns: Pointer to index array of binormals, or NULL if the array hasn't been allocated yet.

◆ GetMaterialIndexArray()

int* GetMaterialIndexArray ( int & pOutArrayCount ) const

Get a pointer to the index array of Material.

Modify array value will be only effective when geometry editing is enabled.

See also: GeometryBegin()/GeometryEnd()

Parameters

pOutArrayCount To return the length the array.

Returns: Pointer to index array of Material, or NULL if the array hasn't been allocated yet.

◆ GetNormalsDirectArray()

FBNormal* GetNormalsDirectArray ( int & pOutArrayCount ) const

Get a pointer to the direct array of normals.

Modify array value will be only effective when geometry editing is enabled.

See also: GeometryBegin()/GeometryEnd()

Parameters

pOutArrayCount To return the length the array.

Returns: Pointer to direct array of normals, or NULL if the array hasn't been allocated yet.

◆ GetNormalsIndexArray()

int* GetNormalsIndexArray ( int & pOutArrayCount ) const

Get a pointer to the index array of normals.

Modify array value will be only effective when geometry editing is enabled.

See also: GeometryBegin()/GeometryEnd()

Parameters

pOutArrayCount To return the length the array.

Returns: Pointer to index array of normals, or NULL if the array hasn't been allocated yet.

◆ GetPositionsArray()

FBVertex* GetPositionsArray ( int & pOutArrayCount ) const

Get a pointer to the position array.

Modify array value will be only effective when geometry editing is enabled.

See also: GeometryBegin()/GeometryEnd()

Parameters

pOutArrayCount To return the length the array.

Returns: Pointer to index array of normals, or NULL if the array hasn't been allocated yet.

◆ GetTangentsDirectArray()

FBNormal* GetTangentsDirectArray ( int & pOutArrayCount ) const

Get a pointer to the direct array of tangents.

Modify array value will be only effective when geometry editing is enabled.

See also: GeometryBegin()/GeometryEnd()

Parameters

pOutArrayCount To return the length the array.

Returns: Pointer to direct array of tangents, or NULL if the array hasn't been allocated yet.

◆ GetTangentsIndexArray()

int* GetTangentsIndexArray ( int & pOutArrayCount ) const

Get a pointer to the index array of tangents.

Modify array value will be only effective when geometry editing is enabled.

See also: GeometryBegin()/GeometryEnd()

Parameters

pOutArrayCount To return the length the array.

Returns: Pointer to index array of tangents, or NULL if the array hasn't been allocated yet.

◆ GetUVSetDirectArray()

FBUV* GetUVSetDirectArray	(	int &	pOutArrayCount,
		const char *	pUVSetName = `NULL`
	)		const

Get a pointer to the direct array of UVset Modify array value will be only effective when geometry editing is enabled.

See also: GeometryBegin()/GeometryEnd()

Parameters

pOutArrayCount	To return the length the array.
pUVSetName	The name of UVset, NULL for the first UVset.

Returns: pointer to the array of UV, or NULL is the array hasn't been allocated yet.

◆ GetUVSetIndexArray()

int* GetUVSetIndexArray	(	int &	pOutArrayCount,
		const char *	pUVSetName = `NULL`
	)		const

Get a pointer to the index array of UVset.

Modify array value will be only effective when geometry editing is enabled.

See also: GeometryBegin()/GeometryEnd()

Parameters

pOutArrayCount	To return the length the array.
pUVSetName	The name of UVset, NULL for the first UVset.

Returns: Pointer to index array of UVSet, or NULL if the array hasn't been allocated yet.

◆ GetUVSetMappingMode()

FBGeometryMappingMode GetUVSetMappingMode ( const char * pUVSetName = NULL ) const

Get UVSet mapping mode.

Parameters

pUVSetName The name of UVset, NULL for the first UVset.

Returns: Mapping mode of the UVset.

◆ GetUVSetReferenceMode()

FBGeometryReferenceMode GetUVSetReferenceMode ( const char * pUVSetName = NULL ) const

Get UVSet reference mode.

Parameters

pUVSetName The name of UVset, NULL for the first UVset.

Returns: Reference mode of the UVset.

◆ GetUVSets()

FBStringList GetUVSets ( ) const

Get available UVSet name.

Returns: StringList contain all the available UVSets' name.

◆ GetVertexColorsDirectArray()

FBColorF* GetVertexColorsDirectArray ( int & pOutArrayCount ) const

Get a pointer to the direct array of vertex color.

Modify array value will be only effective when geometry editing is enabled.

See also: GeometryBegin()/GeometryEnd()

Parameters

pOutArrayCount To return the length the array.

Returns: Pointer to direct array of vertex colors, or NULL if the array hasn't been allocated yet.

◆ GetVertexColorsIndexArray()

int* GetVertexColorsIndexArray ( int & pOutArrayCount ) const

Get a pointer to the index array of vertex color.

Modify array value will be only effective when geometry editing is enabled.

See also: GeometryBegin()/GeometryEnd()

Parameters

pOutArrayCount To return the length the array.

Returns: Pointer to index array of vertex color, or NULL if the array hasn't been allocated yet.

◆ GetVertexes()

FBVertex* GetVertexes ( ) const

Get a pointer to the array of vertexes.

Returns: pointer to the array of vertexes, or NULL if the array has not been allocated.

◆ IsEditingEnabled()

bool IsEditingEnabled ( ) const

Is geometry editing enabled.

Returns: true if enabled.

◆ ModifyNotify()

void ModifyNotify	(	kFBGeometryUpdateFlags	pFlags = `kFBGeometryUpdateAll`,
		int	pFirstIndex = `-1`,
		int	pLastIndex = `-1`
	)

The geometry has change, update the necessary flags.

Parameters

pFlags	flags for the kind of update that was done.
pFirstIndex	Correspond to the start index of modification of points or normals.
pLastIndex	Correspond to the last index of modification of points or normals.

◆ ShapeAdd()

int ShapeAdd ( const char * pName )

Add new shape.

Parameters

pName the shape name

Returns: the index of the new shape, -1 if the shape adding fail.

◆ ShapeClearAll()

void ShapeClearAll ( )

Clears all the shapes.

◆ ShapeGetCount()

int ShapeGetCount ( ) const

Get Shape Count.

◆ ShapeGetDiffPoint() [1/2]

bool ShapeGetDiffPoint	(	int	pShapeIdx,
		int	pDiffIndex,
		int &	pOriIndex,
		FBVertex &	pPosDiff
	)		const

Get the differentiate point.

Parameters

pShapeIdx	The index of the shape
pDiffIndex	The index of the diff point in this shape.
pOriIndex	The index of the diff point in the original geometry.
pPosDiff	The position differentiation.

◆ ShapeGetDiffPoint() [2/2]

bool ShapeGetDiffPoint	(	int	pShapeIdx,
		int	pDiffIndex,
		int &	pOriIndex,
		FBVertex &	pPosDiff,
		FBNormal &	pNormalDiff
	)		const

Get the differentiate point.

Parameters

pShapeIdx	The index of the shape
pDiffIndex	The index of the diff point in this shape.
pOriIndex	The index of the diff point in the original geometry.
pPosDiff	The position differentiation.
pNormalDiff	The normal differentiation.

◆ ShapeGetDiffPointCount()

int ShapeGetDiffPointCount ( int pShapeIdx ) const

Return the shape's total diff points count.

Parameters

pShapeIdx The index of the shape

◆ ShapeGetName()

const char* ShapeGetName ( int pShapeIdx ) const

Return the shape Name.

◆ ShapeInit()

void ShapeInit	(	int	pShapeIdx,
		int	pDiffSize,
		bool	pWithNormal = `false`
	)

Init the shape.

Parameters

pShapeIdx	The index of the shape to be initialized
pDiffSize	Total number of different point (pos or normal) compared to base geometry.
pWithNormal	Currently normal won't be considered during shape blending.

◆ ShapeSetDiffPoint() [1/2]

bool ShapeSetDiffPoint	(	int	pShapeIdx,
		int	pDiffIndex,
		int	pOriIndex,
		const FBVertex &	pPosDiff
	)

Set the differentiate point.

Parameters

pShapeIdx	The index of the shape
pDiffIndex	The index of the diff point in this shape.
pOriIndex	The index of the diff point in the original geometry.
pPosDiff	The position differentiation.

◆ ShapeSetDiffPoint() [2/2]

bool ShapeSetDiffPoint	(	int	pShapeIdx,
		int	pDiffIndex,
		int	pOriIndex,
		const FBVertex &	pPosDiff,
		const FBNormal &	pNormalDiff
	)

Set the differentiate point.

Parameters

pShapeIdx	The index of the shape
pDiffIndex	The index of the diff point in this shape.
pOriIndex	The index of the diff point in the original geometry.
pPosDiff	The position differentiation.
pNormalDiff	The normal differentiation.

◆ VertexAdd() [1/8]

int VertexAdd	(	double	px,
		double	py,
		double	pz
	)

Add a vertex.

Parameters

px	X coordinate of vertex to add.
py	Y coordinate of vertex to add.
pz	Z coordinate of vertex to add.

Returns: Index where vertex was added.

Remarks: Set Normal with default value

◆ VertexAdd() [2/8]

int VertexAdd	(	double	px,
		double	py,
		double	pz,
		double	nx,
		double	ny,
		double	nz
	)

Begin geometry editing.

Returns: true if successful.

◆ VertexAdd() [3/8]

int VertexAdd	(	double	px,
		double	py,
		double	pz,
		double	nx,
		double	ny,
		double	nz,
		double	UVu,
		double	UVv
	)

Begin geometry editing.

Returns: true if successful.

◆ VertexAdd() [4/8]

int VertexAdd	(	double	px,
		double	py,
		double	pz,
		double	nx,
		double	ny,
		double	nz,
		double	UVu,
		double	UVv,
		double	pRed,
		double	pGreen,
		double	pBlue,
		double	pAlpha
	)

Begin geometry editing.

Returns: true if successful.

◆ VertexAdd() [5/8]

int VertexAdd ( FBVertex pVertex )

Add a vertex.

Parameters

pVertex Vertex values used to add vertex.

Returns: Index where vertex was added.

Remarks: Set Normal with default value

◆ VertexAdd() [6/8]

int VertexAdd	(	FBVertex	pVertex,
		FBNormal	pNormal
	)

Add a vertex.

Parameters

pVertex	Vertex values used to add vertex.
pNormal	Normal values used to add vertex.

Returns: Index where vertex was added.

◆ VertexAdd() [7/8]

int VertexAdd	(	FBVertex	pVertex,
		FBNormal	pNormal,
		FBUV	pUV
	)

Add a vertex.

Parameters

pVertex	Vertex values used to add vertex.
pNormal	Normal values used to add vertex.
pUV	UV values used to add vertex.

Returns: Index where vertex was added.

◆ VertexAdd() [8/8]

int VertexAdd	(	FBVertex	pVertex,
		FBNormal	pNormal,
		FBUV	pUV,
		FBColorF	pVertexColor
	)

Add a vertex.

Parameters

pVertex	Vertex values used to add vertex.
pNormal	Normal values used to add vertex.
pUV	UV values used to add vertex.
pVertexColor	Color values used to add vertex.

Returns: Index where vertex was added.

◆ VertexArrayClear()

bool VertexArrayClear ( )

Clear all geometry vertex arrays.

Call this function to clear Position, Normal, UV, Color and etc vertex arrays, and it won't affect geometry's topology (polygon, Surface and etc.,).

Returns: true if successful.

◆ VertexArrayInit()

bool VertexArrayInit	(	int	pVertexcount,
		bool	pUniqueMaterial,
		unsigned int	pFBGeometryArrayIDs = `0`
	)

Init geometry vertex arrays.

Init position, normal and UV arrays (tangent, bi-normal and color on demand) with kFBGeometryMapping_BY_CONTROL_POINT / kFBGeometryReference_DIRECT mode. Will call VertexArrayClear() internally. User should then call GetXXXDirectyArray() to edit the vertex attributes directly.

Parameters

pVertexcount	number of control points (vertex)
pUniqueMaterial	User could specify per polygon mapping mode for mesh
pFBGeometryArrayIDs	Request to init other attribute arrays, bitwise combined value of FBGeometryArrayID enum items, currently support Tangent, Binormal and VertexColor. Only useful for mesh.

◆ VertexClear()

bool VertexClear ( )

Clear all Vertex arrays.

Call this function to clear Position, Normal, UV, Color and etc vertex arrays, and it won't affect geometry's topology (polygon, Surface and etc.,).

Returns: true if successful.

◆ VertexColorGet()

FBColorF VertexColorGet ( int pIndex = -1 ) const

Get a Vertex Color.

Parameters

pIndex Index of Vertex to get Color for(default=-1).

Returns: Color of vertex at UVSetIndex.

◆ VertexColorSet() [1/2]

bool VertexColorSet	(	FBColorF	pColor,
		int	pIndex = `-1`
	)

Set a Vertex Color.

Parameters

pColor	Vertex Color to set.
pIndex	Index of Vertex to affect with pColor(default=-1).

Returns: true if successful.

◆ VertexColorSet() [2/2]

bool VertexColorSet	(	float	pRed,
		float	pGreen,
		float	pBlue,
		float	pAlpha,
		int	pIndex = `-1`
	)

Set a UV coordinate.

Parameters

pRed	Red Color Channel to set, range [0, 1].
pGreen	Green Color Channel to set, range [0, 1].
pBlue	Blue Color Channel to set, range [0, 1].
pAlpha	Alpha Color Channel to set, range [0, 1].
pIndex	Index of Vertex to affect with Red, Green, Blue and Alpha (default=-1).

Returns: true if successful.

◆ VertexCount()

int VertexCount ( ) const

Get the number of vertices in the geometry.

Returns: Number of vertices in the geometry.

◆ VertexGet()

FBVertex VertexGet ( int pIndex ) const

Get a vertex.

Parameters

pIndex Index of vertex to get.

Returns: Vertex stored at pIndex.

◆ VertexGetSelected()

bool VertexGetSelected ( int pIndex )

Get the selected state of a vertex.

Parameters

pIndex The index of the vertex

Returns: true if the vertex is selected, false if not

◆ VertexGetTransformable()

bool VertexGetTransformable ( int pIndex )

Get the Transformable state of a vertex.

Parameters

pIndex The index of the vertex

Returns: true if the vertex is Transformable, false if not

◆ VertexGetVisible()

bool VertexGetVisible ( int pIndex )

Get the visible state of a vertex.

Parameters

pIndex The index of the vertex

Returns: true if the vertex is visible, false if not

◆ VertexInit()

void VertexInit	(	int	pSize,
		bool	pResize,
		bool	pInitUV = `true`,
		bool	pInitVertexColor = `false`
	)

Resize or Reserve vertex, normal and UV array for performance.

Parameters

pSize	Number of vertices to resize or reserve.
pResize	True, for the geometry with known vertex count, we should resize the arrays to fixed size, and call VertexSet() afterwards; False, While for dynamic size geometry, we should only reserve the arrays with the estimated optimal size, then call VertexAdd() to dynamically increase the vertex count.
pInitUV	init Vertex UV array if true
pInitVertexColor	Init Vertex Color Array if true.

◆ VertexNormalGet()

FBNormal VertexNormalGet ( int pIndex = -1 ) const

Get a normal at a vertex.

Parameters

pIndex Vertex to get normal at(default=-1).

Returns: Normal of vertex at pIndex.

◆ VertexNormalSet() [1/2]

bool VertexNormalSet	(	double	px,
		double	py,
		double	pz,
		int	pIndex = `-1`
	)

Set a normal at a vertex.

Parameters

px	X coordinate of normal.
py	Y coordinate of normal.
pz	Z coordinate of normal.
pIndex	Index of vertex to set Normal at(default=-1).

Returns: true if successful.

◆ VertexNormalSet() [2/2]

bool VertexNormalSet	(	FBNormal	pVertex,
		int	pIndex = `-1`
	)

Set a normal at a vertex.

Parameters

pVertex	Normal to set.
pIndex	Index of vertex to set Normal at(default=-1).

Returns: true if successful.

◆ VertexSet() [1/2]

bool VertexSet	(	double	px,
		double	py,
		double	pz,
		int	pIndex = `-1`
	)

Set a vertex.

Parameters

px	X coordinate to set.
py	Y coordinate to set.
pz	Z coordinate to set.
pIndex	Index of vertex to set(default=-1).

Returns: true if successful.

◆ VertexSet() [2/2]

bool VertexSet	(	FBVertex	pVertex,
		int	pIndex = `-1`
	)

Set a vertex.

Parameters

pVertex	Vertex values used to set vertex.
pIndex	Index of vertex to affect (default=-1).

Returns: true if successful.

◆ VertexSetSelected()

bool VertexSetSelected	(	int	pIndex,
		bool	pState
	)

Set the selected state of a vertex.

Parameters

pIndex	The index of the vertex
pState	The true to selected, false to deselect

Returns: true if the vertex is selected, false if not

◆ VertexSetVisible()

bool VertexSetVisible	(	int	pIndex,
		bool	pState
	)

Set the visible state of a vertex.

Parameters

pIndex	The index of the vertex
pState	true to be visible

Returns: true if the vertex is visible, false if not

◆ VertexUVGet()

FBUV VertexUVGet ( int pIndex = -1 ) const

Get a UV coordinate.

Parameters

pIndex Index of Vertex to get UV coordinate for(default=-1).

Returns: UV coordinate of vertex at UVSetIndex.

◆ VertexUVSet() [1/2]

bool VertexUVSet	(	FBUV	pUV,
		int	pIndex = `-1`
	)

Set a UV coordinate.

Parameters

pUV	UV coordinate to set.
pIndex	Index of Vertex to affect with UV coordinate(default=-1).

Returns: true if successful.

◆ VertexUVSet() [2/2]

bool VertexUVSet	(	float	pU,
		float	pV,
		int	pIndex = `-1`
	)

Set a UV coordinate.

Parameters

pU	U coordinate to set.
pV	V coordinate to set.
pIndex	Index of Vertex to affect with UV coordinate(default=-1).

Returns: true if successful.

Member Data Documentation

◆ BinormalMappingMode

FBPropertyGeometryMappingMode BinormalMappingMode

Read Only Property: Binormal mapping mode.

Definition at line 439 of file fbgeometry.h.

◆ BinormalReferenceMode

FBPropertyGeometryReferenceMode BinormalReferenceMode

Read Only Property: Binormal reference mode.

Definition at line 440 of file fbgeometry.h.

◆ MaterialMappingMode

FBPropertyGeometryMappingMode MaterialMappingMode

Read Property: Material mapping mode.

Definition at line 506 of file fbgeometry.h.

◆ NormalMappingMode

FBPropertyGeometryMappingMode NormalMappingMode

Read Only Property: Normal mapping mode.

Definition at line 405 of file fbgeometry.h.

◆ NormalReferenceMode

FBPropertyGeometryReferenceMode NormalReferenceMode

Read Only Property: Normal reference mode.

Definition at line 406 of file fbgeometry.h.

◆ TangentMappingMode

FBPropertyGeometryMappingMode TangentMappingMode

Read Only Property: Tangent mapping mode.

Definition at line 422 of file fbgeometry.h.

◆ TangentReferenceMode

FBPropertyGeometryReferenceMode TangentReferenceMode

Read Only Property: Tangent reference mode.

Definition at line 423 of file fbgeometry.h.

◆ VertexColorMappingMode

FBPropertyGeometryMappingMode VertexColorMappingMode

Read Only Property: Vertex Color mapping mode.

Definition at line 456 of file fbgeometry.h.

◆ VertexColorReferenceMode

FBPropertyGeometryReferenceMode VertexColorReferenceMode

Read Only Property: Vertex Color reference mode.

Definition at line 457 of file fbgeometry.h.

The documentation for this class was generated from the following file:

fbgeometry.h

Public Member Functions

Protected Member Functions

Interface for direct manipulating Geometry Position, Normal, Color, UV and Material arrays.

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FBGeometry()

Member Function Documentation

◆ GeometryBegin()

◆ GeometryEnd()

◆ GetBinormalsDirectArray()

◆ GetBinormalsIndexArray()

◆ GetMaterialIndexArray()

◆ GetNormalsDirectArray()

◆ GetNormalsIndexArray()

◆ GetPositionsArray()

◆ GetTangentsDirectArray()

◆ GetTangentsIndexArray()

◆ GetUVSetDirectArray()

◆ GetUVSetIndexArray()

◆ GetUVSetMappingMode()

◆ GetUVSetReferenceMode()

◆ GetUVSets()

◆ GetVertexColorsDirectArray()

◆ GetVertexColorsIndexArray()

◆ GetVertexes()

◆ IsEditingEnabled()

◆ ModifyNotify()

◆ ShapeAdd()

◆ ShapeClearAll()

◆ ShapeGetCount()

◆ ShapeGetDiffPoint() [1/2]

◆ ShapeGetDiffPoint() [2/2]

◆ ShapeGetDiffPointCount()

◆ ShapeGetName()

◆ ShapeInit()

◆ ShapeSetDiffPoint() [1/2]

◆ ShapeSetDiffPoint() [2/2]

◆ VertexAdd() [1/8]

◆ VertexAdd() [2/8]

◆ VertexAdd() [3/8]

◆ VertexAdd() [4/8]

◆ VertexAdd() [5/8]

◆ VertexAdd() [6/8]

◆ VertexAdd() [7/8]

◆ VertexAdd() [8/8]

◆ VertexArrayClear()

◆ VertexArrayInit()

◆ VertexClear()

◆ VertexColorGet()

◆ VertexColorSet() [1/2]

◆ VertexColorSet() [2/2]

◆ VertexCount()

◆ VertexGet()

◆ VertexGetSelected()

◆ VertexGetTransformable()

◆ VertexGetVisible()

◆ VertexInit()

◆ VertexNormalGet()

◆ VertexNormalSet() [1/2]

◆ VertexNormalSet() [2/2]

◆ VertexSet() [1/2]

◆ VertexSet() [2/2]

◆ VertexSetSelected()

◆ VertexSetVisible()

◆ VertexUVGet()

◆ VertexUVSet() [1/2]

◆ VertexUVSet() [2/2]

Member Data Documentation

◆ BinormalMappingMode

◆ BinormalReferenceMode

◆ MaterialMappingMode

◆ NormalMappingMode

◆ NormalReferenceMode

◆ TangentMappingMode

◆ TangentReferenceMode

◆ VertexColorMappingMode

◆ VertexColorReferenceMode
