Connections Basic Open Reality SDK Element. More...

#include <fbplug.h>

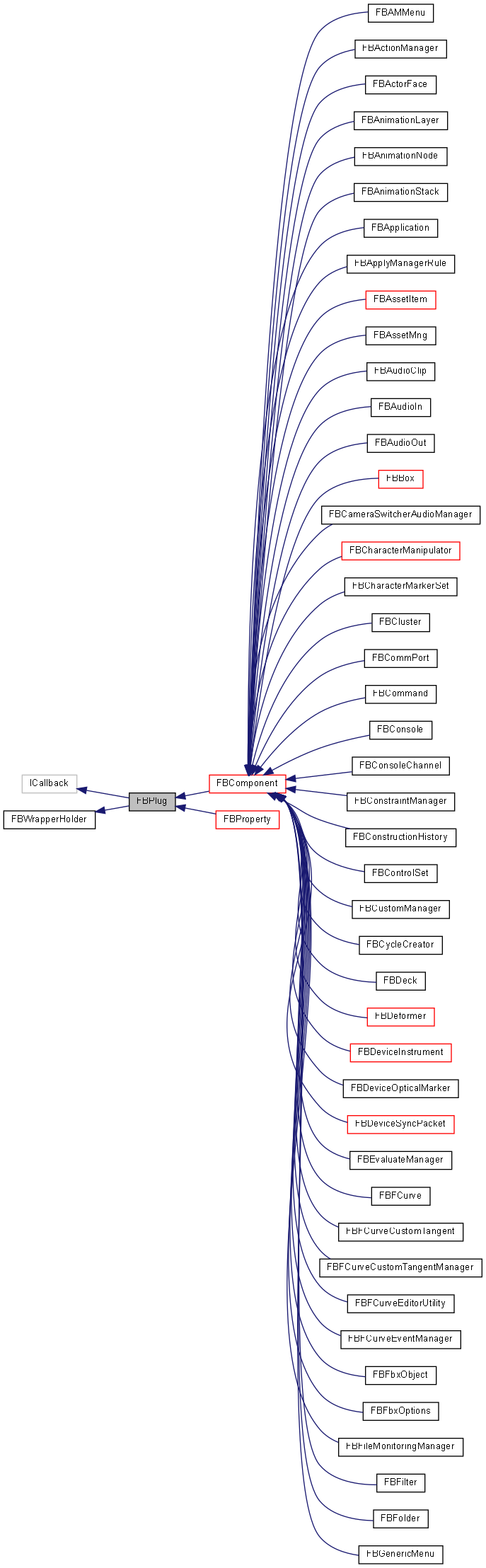

Inheritance diagram for FBPlug:

[legend]

Protected Member Functions
bool	IsSDKComponent ()
	Return whether or not item is an SDK component. More...

bool	ConnectSrc (FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection. More...

bool	ConnectDst (FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection. More...

bool	ConnectSrcAt (int pDst_SrcIndex, FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection. More...

bool	ConnectDstAt (int pSrc_DstIndex, FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection. More...

bool	DisconnectDst (FBPlug *pDst)
	Remove a destination connection. More...

bool	DisconnectSrc (FBPlug *pSrc)
	Remove a source connection. More...

void	DisconnectAllSrc ()
	Remove all source connections. More...

void	DisconnectAllDst ()
	Remove all destination connections. More...

bool	DisconnectDstAt (int pIndex)
	Remove a destination connection at a specified index. More...

bool	DisconnectSrcAt (int pIndex)
	Remove a source connection at a specified index. More...

bool	ReplaceDstAt (int pIndex, FBPlug *pDst)
	Replace a destination connection at a specified index. More...

bool	ReplaceSrcAt (int pIndex, FBPlug *pSrc)
	Replace a source connection at a specified index. More...

bool	SwapSrc (int pIndexA, int pIndexB)
	Swap source connection at index A with source connection at index B. More...

bool	MoveSrcAt (int pIndex, int pAtIndex)
	Move source connection at pIndex to pAtIndex. More...

bool	MoveSrcAt (FBPlug pSrc, FBPlug pAtSrc)
	Move source connection pSrc to the position of pAtSrc. More...

int	GetSrcCount ()
	Get source connection count. More...

FBPlug *	GetSrc (int pIndex)
	Get a source connection's plug at specified index. More...

FBConnectionType	GetSrcType (int pIndex)
	Get a source connection's type at specified index. More...

int	GetDstCount ()
	Get destination connection count. More...

FBPlug *	GetDst (int pIndex)
	Get a destination connection's plug at specified index. More...

FBConnectionType	GetDstType (int pIndex)
	Get a destination connection's type at specified index. More...

bool	BeginChange ()
	Begins a change on multiple plugs. More...

void	EndChange ()
	Ends a change on multiple plugs. More...

void	SetSelfModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's self modification flag. More...

bool	GetSelfModified (FBPlugModificationFlag pFlag)
	Tell if the plug's self has changed. More...

void	SetContentModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's owned property/object's modification flag. More...

bool	GetContentModified (FBPlugModificationFlag pFlag)
	Tell if the plug's content has changed. More...

int	GetPlugConnectionModifiedList (FBPlugList &pPlugList, FBPlugModificationFlag pConnectionModificatonFlag, bool pAddRemove)
	Get plug's modified src/dst property/object connection added/removed List. More...

bool	RevertModification (FBPlugModificationFlag pFlag=kFBAllModifiedMask)
	Revert the plug's modification to original status. More...

void	SetStatusFlag (FBPlugStatusFlag pStatus, bool pValue)
	Set the plug's status flag. More...

bool	GetStatusFlag (FBPlugStatusFlag pStatus) const
	Tell if the plug's status has changed. More...

FBPlug *	GetOwner ()
	Get the owner of this plug. More...

FBPlug *	GetOwned (int pIndex)
	Get the owned plug at specified index. More...

int	GetOwnedCount ()
	Get the owned plug count. More...

virtual const char *	ClassName ()
	internal System vars. More...

virtual bool	Is (int pTypeId)
	Is( int pTypeId ) More...

virtual int	GetTypeId ()
	GetTypeId( int pTypeId ) More...

virtual bool	PlugDataNotify (FBConnectionAction pAction, FBPlug pThis, void pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugDataNotify when overloaded is equivalent of FBSystem.OnConnectionDataNotify but in the context of the derived object only. More...

virtual bool	PlugStateNotify (FBConnectionAction pAction, FBPlug pThis, void pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugStateNotify when overloaded is equivalent of FBSystem.OnConnectionStateNotify but in the context of the derived object only. More...

virtual bool	PlugNotify (FBConnectionAction pAction, FBPlug pThis, int pIndex, FBPlug pPlug=NULL, FBConnectionType pConnectionType=kFBConnectionTypeNone, FBPlug *pNewPlug=NULL)
	PlugNotify when overloaded is equivalent of FBSystem.OnConnectionNotify but in the context of the derived object only. More...

virtual void	FBDelete ()
	Actual destructor for a FBPlug. More...

Static Protected Member Functions
static int	GetInternalClassId ()
	Internal class Id. More...

Protected Attributes
bool	mAllocated
	Contain the Allocation State of the Component. More...

HIObject	mObject
	Handle on the Plug. More...

bool	mSDKComponent
	bool Plug is an SDK component. More...

Static Protected Attributes
static const char *	ClassGroupName
	ClassGroupName of the object. More...

static int	TypeInfo
	TypeInfo. More...

static int	mGlobalTypeInfo
	Represente the Type Index. More...

Additional Inherited Members
Public Member Functions inherited from FBWrapperHolder
FBScriptWrapper *	GetWrapper ()
	Return the wrapper interface of this FBObject. More...

void	AddWrapper (FBScriptWrapper *)

void	RemoveWrapper (FBScriptWrapper *)

Detailed Description

Connections Basic Open Reality SDK Element.

Most elements that are available in the SDK inherit from this base class since FBComponent and FBProperty inherit from FBPlug. Basically, all objects can be connected together because they are all "plugs". To simplify the graph, you can think of a "source" connection as a child, and a "destination" connection as a parent. Also, it is correct to assume that a source affect/work on its destination. For example, a shader applied on an object would be seen as the source while the object is the destination. So FBPlug is a set of functions that enables you to control those connections with flexibility and ease.

Definition at line 220 of file fbplug.h.

Member Function Documentation

◆ BeginChange()

bool BeginChange ( )

protected

Begins a change on multiple plugs.

Returns: A boolean indicating success (True) or failure (False).

◆ ClassName()

virtual const char* ClassName ( )

protectedvirtual

internal System vars.

Reimplemented in FBCustomManager, and FBComponent.

◆ ConnectDst()

bool ConnectDst	(	FBPlug *	pDst,
		FBConnectionType	pConnectionType = `kFBConnectionTypeNone`
	)

protected

Add a destination connection.

Parameters

pDst	Destination plug.
pConnectionType	Type of connection, taken from FBConnectionType. Default value should work in all cases.

Returns: A boolean indicating success (True) or failure (False)

◆ ConnectDstAt()

bool ConnectDstAt	(	int	pSrc_DstIndex,
		FBPlug *	pDst,
		FBConnectionType	pConnectionType = `kFBConnectionTypeNone`
	)

protected

Add a destination connection.

Parameters

pSrc_DstIndex	Index that tells where to add this destination connection in the source's connection list. if index is out of bound, and this destination connection will be appended at the end.
pDst	Destination plug.
pConnectionType	Type of connection, taken from FBConnectionType. Default value should work in all cases.

Returns: A boolean indicating success (True) or failure (False).

◆ ConnectSrc()

bool ConnectSrc	(	FBPlug *	pSrc,
		FBConnectionType	pConnectionType = `kFBConnectionTypeNone`
	)

protected

Add a source connection.

Parameters

pSrc	Source plug.
pConnectionType	Type of connection, taken from FBConnectionType. Default value should work in all cases.

Returns: A boolean indicating success (True) or failure (False).

◆ ConnectSrcAt()

bool ConnectSrcAt	(	int	pDst_SrcIndex,
		FBPlug *	pSrc,
		FBConnectionType	pConnectionType = `kFBConnectionTypeNone`
	)

protected

Add a source connection.

Parameters

pDst_SrcIndex	Index that tells where to add this source connection in the destination's connection list. if index is out of bound, and this source connection will be appended at the end.
pSrc	Source plug.
pConnectionType	Type of connection, taken from FBConnectionType. Default value should work in all cases.

Returns: A boolean indicating success (True) or failure (False).

◆ DisconnectAllDst()

void DisconnectAllDst ( )

protected

Remove all destination connections.

◆ DisconnectAllSrc()

void DisconnectAllSrc ( )

protected

Remove all source connections.

◆ DisconnectDst()

bool DisconnectDst ( FBPlug * pDst )

protected

Remove a destination connection.

Parameters

pDst	Destination plug.

Returns: A boolean indicating success (True) or failure (False).

◆ DisconnectDstAt()

bool DisconnectDstAt ( int pIndex )

protected

Remove a destination connection at a specified index.

Parameters

pIndex Destination plug index.

Returns: A boolean indicating success (True) or failure (False).

◆ DisconnectSrc()

bool DisconnectSrc ( FBPlug * pSrc )

protected

Remove a source connection.

Parameters

pSrc	Source plug.

Returns: A boolean indicating success (True) or failure (False).

◆ DisconnectSrcAt()

bool DisconnectSrcAt ( int pIndex )

protected

Remove a source connection at a specified index.

Parameters

pIndex Source plug index.

Returns: A boolean indicating success (True) or failure (False).

◆ EndChange()

void EndChange ( )

protected

Ends a change on multiple plugs.

◆ FBDelete()

virtual void FBDelete ( )

protectedvirtual

Actual destructor for a FBPlug.

It should never be called from client code. This is meant for internal use only!

Reimplemented in FBVideoClip, FBLayeredTexture, FBTexture, FBStoryGroupClip, FBStoryClip, FBStoryTrack, FBStoryFolder, FBScene, FBMotionBlendEdit, FBMotionClip, FBModel, FBKeyingGroup, FBImage, FBSet, FBGroup, FBFolder, FBTake, FBAnimationLayer, FBAnimationStack, FBFCurveCustomTangent, FBFCurve, FBComponent, FBCharacterFace, FBActorFace, FBCharacterExtension, FBCharacter, FBActor, FBAudioClip, and FBGenericMenu.

◆ GetContentModified()

bool GetContentModified ( FBPlugModificationFlag pFlag )

protected

Tell if the plug's content has changed.

Parameters

pFlag bitwise AND of content modification flags.

Returns: true if content connection changed.

◆ GetDst()

FBPlug* GetDst ( int pIndex )

protected

Get a destination connection's plug at specified index.

Parameters

pIndex Index of the destination connection's plug.

Returns: Destination plug at specified index.

◆ GetDstCount()

int GetDstCount ( )

protected

Get destination connection count.

Returns: Total destinations connections count.

◆ GetDstType()

FBConnectionType GetDstType ( int pIndex )

protected

Get a destination connection's type at specified index.

Parameters

pIndex Index of the destination connection's type.

Returns: Destination connection's type at specified index.

◆ GetInternalClassId()

static int GetInternalClassId ( )

staticprotected

Internal class Id.

◆ GetOwned()

FBPlug* GetOwned ( int pIndex )

protected

Get the owned plug at specified index.

Parameters

pIndex Index of the owned plug to get.

Returns: The owned plug at specified index.

◆ GetOwnedCount()

int GetOwnedCount ( )

protected

Get the owned plug count.

Returns: The owned plug count.

◆ GetOwner()

FBPlug* GetOwner ( )

protected

Get the owner of this plug.

Very useful for properties since they are plugs too.

Returns: The owner of this plug.

◆ GetPlugConnectionModifiedList()

int GetPlugConnectionModifiedList	(	FBPlugList &	pPlugList,
		FBPlugModificationFlag	pConnectionModificatonFlag,
		bool	pAddRemove
	)

protected

Get plug's modified src/dst property/object connection added/removed List.

Parameters

pPlugList	plug list to fill up.
pConnectionModificatonFlag	Src/Dst Property/Object connection modification flag.
pAddRemove	Ask for the added list if true, removed list if false.

Returns: count of list;

◆ GetSelfModified()

bool GetSelfModified ( FBPlugModificationFlag pFlag )

protected

Tell if the plug's self has changed.

Parameters

pFlag bitwise AND of self modification flags.

Returns: true if self changed

◆ GetSrc()

FBPlug* GetSrc ( int pIndex )

protected

Get a source connection's plug at specified index.

Parameters

pIndex Index of the source connection's plug.

Returns: Source plug at specified index.

◆ GetSrcCount()

int GetSrcCount ( )

protected

Get source connection count.

Returns: Total sources connections count.

◆ GetSrcType()

FBConnectionType GetSrcType ( int pIndex )

protected

Get a source connection's type at specified index.

Parameters

pIndex Index of the source connection's type.

Returns: Source connection's type at specified index.

◆ GetStatusFlag()

bool GetStatusFlag ( FBPlugStatusFlag pStatus ) const

protected

Tell if the plug's status has changed.

Parameters

pStatus bitwise AND of self modification flags.

Returns: true if self changed

◆ GetTypeId()

virtual int GetTypeId ( )

protectedvirtual

GetTypeId( int pTypeId )

Returns: The TypeInfo of the object

Reimplemented in FBCustomManager, and FBComponent.

◆ Is()

virtual bool Is ( int pTypeId )

protectedvirtual

Is( int pTypeId )

Parameters

pTypeId Type Identification.

Returns: True if Plug is a Instance of pTypeId.

Reimplemented in FBCustomManager, and FBComponent.

◆ IsSDKComponent()

bool IsSDKComponent ( )

protected

Return whether or not item is an SDK component.

◆ MoveSrcAt() [1/2]

bool MoveSrcAt	(	FBPlug *	pSrc,
		FBPlug *	pAtSrc
	)

protected

Move source connection pSrc to the position of pAtSrc.

Parameters

pSrc	Plug.
pAtSrc	Plug that mark where we want to insert (will insert before this one).

Returns: A boolean indicating success (True) or failure (False).

Remarks: This is not like the swap function since the connection at pAtSrc is untouched.

◆ MoveSrcAt() [2/2]

bool MoveSrcAt	(	int	pIndex,
		int	pAtIndex
	)

protected

Move source connection at pIndex to pAtIndex.

Parameters

pIndex	Plug current index.
pAtIndex	Plug new index.

Returns: A boolean indicating success (True) or failure (False).

Remarks: This is not like the swap function since the connection at pAtIndex is untouched.

◆ PlugDataNotify()

virtual bool PlugDataNotify	(	FBConnectionAction	pAction,
		FBPlug *	pThis,
		void *	pData = `NULL`,
		void *	pDataOld = `NULL`,
		int	pDataSize = `0`
	)

protectedvirtual

PlugDataNotify when overloaded is equivalent of FBSystem.OnConnectionDataNotify but in the context of the derived object only.

Parameters

pAction	Plug action, the event type.
pThis	Plug concerned.
pData	Current data, meaning depends of plug action.
pDataOld	Previous data, meaning depends of plug action.
pDataSize	Size of data.

Returns: unused should return true

◆ PlugNotify()

virtual bool PlugNotify	(	FBConnectionAction	pAction,
		FBPlug *	pThis,
		int	pIndex,
		FBPlug *	pPlug = `NULL`,
		FBConnectionType	pConnectionType = `kFBConnectionTypeNone`,
		FBPlug *	pNewPlug = `NULL`
	)

protectedvirtual

PlugNotify when overloaded is equivalent of FBSystem.OnConnectionNotify but in the context of the derived object only.

Parameters

pAction	Plug action, the event type.
pThis	Plug concerned.
pIndex	Index of the plug.
pPlug	Other plug concerned.
pConnectionType	Connection type between the plugs.
pNewPlug	New plug (for the replace event).

Returns: should by default return true except in the case of connection requests (kFBRequestConnectSrc or kFBRequestConnectDst)

◆ PlugStateNotify()

virtual bool PlugStateNotify	(	FBConnectionAction	pAction,
		FBPlug *	pThis,
		void *	pData = `NULL`,
		void *	pDataOld = `NULL`,
		int	pDataSize = `0`
	)

protectedvirtual

PlugStateNotify when overloaded is equivalent of FBSystem.OnConnectionStateNotify but in the context of the derived object only.

Parameters

pAction	Plug action, the event type.
pThis	Plug concerned.
pData	Current data, meaning depends of plug action.
pDataOld	Previous data, meaning depends of plug action.
pDataSize	Size of data.

Returns: unused should return true except in the case of property rename kFBRename

◆ ReplaceDstAt()

bool ReplaceDstAt	(	int	pIndex,
		FBPlug *	pDst
	)

protected

Replace a destination connection at a specified index.

Parameters

pIndex	Destination plug index.
pDst	Plug that will replace the other at index.

Returns: A boolean indicating success (True) or failure (False).

◆ ReplaceSrcAt()

bool ReplaceSrcAt	(	int	pIndex,
		FBPlug *	pSrc
	)

protected

Replace a source connection at a specified index.

Parameters

pIndex	Source plug index.
pSrc	Plug that will replace the other at index.

Returns: A boolean indicating success (True) or failure (False).

◆ RevertModification()

bool RevertModification ( FBPlugModificationFlag pFlag = kFBAllModifiedMask )

protected

Revert the plug's modification to original status.

Parameters

pFlag the type of modification to be reverted.

Returns: true if revert successfully.

◆ SetContentModified()

void SetContentModified	(	FBPlugModificationFlag	pFlag,
		bool	pBool
	)

protected

Set the plug's owned property/object's modification flag.

Parameters

pFlag	bitwise AND of content modification flags.
pBool	true if content has modification.

◆ SetSelfModified()

void SetSelfModified	(	FBPlugModificationFlag	pFlag,
		bool	pBool
	)

protected

Set the plug's self modification flag.

Parameters

pFlag	bitwise AND of self modification flags.
pBool	true if self changed.

◆ SetStatusFlag()

void SetStatusFlag	(	FBPlugStatusFlag	pStatus,
		bool	pValue
	)

protected

Set the plug's status flag.

Parameters

pStatus	bitwise AND of status flags.
pValue	true if status has modification.

◆ SwapSrc()

bool SwapSrc	(	int	pIndexA,
		int	pIndexB
	)

protected

Swap source connection at index A with source connection at index B.

Parameters

pIndexA	Plug index.
pIndexB	Other plug index.

Returns: A boolean indicating success (True) or failure (False).

Member Data Documentation

◆ ClassGroupName

const char* ClassGroupName

staticprotected

ClassGroupName of the object.

Definition at line 466 of file fbplug.h.

◆ mAllocated

bool mAllocated

protected

Contain the Allocation State of the Component.

Definition at line 472 of file fbplug.h.

◆ mGlobalTypeInfo

int mGlobalTypeInfo

staticprotected

Represente the Type Index.

Definition at line 522 of file fbplug.h.

◆ mObject

HIObject mObject

protected

Handle on the Plug.

Definition at line 524 of file fbplug.h.

◆ mSDKComponent

bool mSDKComponent

protected

bool Plug is an SDK component.

Definition at line 525 of file fbplug.h.

◆ TypeInfo

int TypeInfo

staticprotected

TypeInfo.

Definition at line 469 of file fbplug.h.

The documentation for this class was generated from the following file:

fbplug.h

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ BeginChange()

◆ ClassName()

◆ ConnectDst()

◆ ConnectDstAt()

◆ ConnectSrc()

◆ ConnectSrcAt()

◆ DisconnectAllDst()

◆ DisconnectAllSrc()

◆ DisconnectDst()

◆ DisconnectDstAt()

◆ DisconnectSrc()

◆ DisconnectSrcAt()

◆ EndChange()

◆ FBDelete()

◆ GetContentModified()

◆ GetDst()

◆ GetDstCount()

◆ GetDstType()

◆ GetInternalClassId()

◆ GetOwned()

◆ GetOwnedCount()

◆ GetOwner()

◆ GetPlugConnectionModifiedList()

◆ GetSelfModified()

◆ GetSrc()

◆ GetSrcCount()

◆ GetSrcType()

◆ GetStatusFlag()

◆ GetTypeId()

◆ Is()

◆ IsSDKComponent()

◆ MoveSrcAt() [1/2]

◆ MoveSrcAt() [2/2]

◆ PlugDataNotify()

◆ PlugNotify()

◆ PlugStateNotify()

◆ ReplaceDstAt()

◆ ReplaceSrcAt()

◆ RevertModification()

◆ SetContentModified()

◆ SetSelfModified()

◆ SetStatusFlag()

◆ SwapSrc()

Member Data Documentation

◆ ClassGroupName

◆ mAllocated

◆ mGlobalTypeInfo

◆ mObject

◆ mSDKComponent

◆ TypeInfo
