What's New in Autodesk Robot Structural Analysis Professional 2023

Learn about new features and improvements in the latest release of Autodesk Robot Structural Analysis Professional.

Highlights

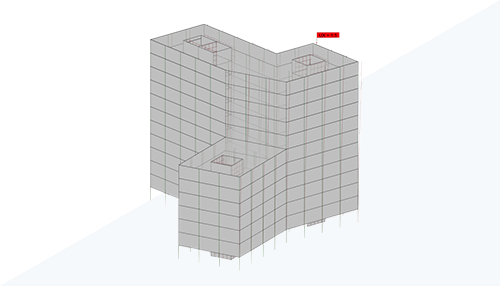

Gravity Analysis with Load Take-Down Method

The Load Takedown Method distributes loads from floors onto beams, columns, and walls. The load is transferred down from the upper storey to the storey below and down to the foundation.

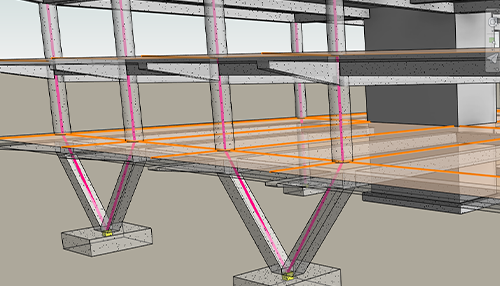

Integration with the Revit Contextual Analytical Model

You can control and accurately create your Revit analytical model in the context of any structural physical model geometries.

New Help Languages

The entire online help content has been translated to new languages: Spanish and Portuguese (Brazilian).

Groups Created on DWG/DXF File Import

Enhanced the DWG/DXF file import with groups of objects created out of the parent layer.

Nodal Displacement in Separate XYZ Directions

Descriptions for nodal displacement can be displayed in the separate UX, UY, and UZ directions.

Enhanced Results Presentation

Display an enhanced results map legend with either the top or the bottom envelope information.

Color for Results Presentation in the Form of Crosses

You can now set the color for results presentation in the form of crosses more easily.

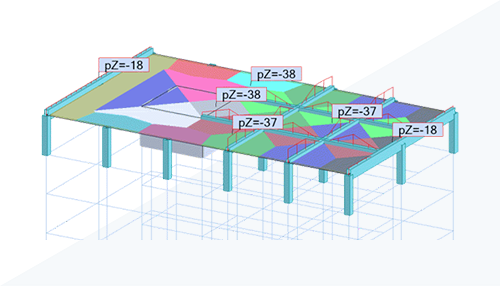

Improved Load Distribution from Cladding to Members and Walls

Load distribution from claddings to beams, columns, and panels was improved in terms of quality and performance.

New Product Branding

Introduced new style, logo, and colors.

New Installer

The 2023 Autodesk products provide a new, faster, and more reliable install and deployment experience.

Windows 11 Support

The 2023 product release is compatible with the new Microsoft® Windows® 11 operating system.

More Features

Regional Settings for Brazil

Regional settings for Brazil have been enriched with new design codes and content.

Eurocode Wind Load for Frames

Wind load automation for 2D and 3D frames according to EN1991-1-4:2005 was updated.

Seismic Spectral Analysis Regional Code Updates

The current national codes for France, Portugal, and the United States were implemented for seismic spectral analysis.

Load Combination Regional Code Updates

The current national codes for Brazil, Denmark, and Finland were implemented for load combinations.

Steel Design Regional Code Updates

The current national codes for Brazil, Canada, and Denmark were implemented for steel design and optimization.

Steel Design Content for Brazil

New content related to the Steel design according to the Brazilian standards was implemented.

Reinforced Concrete Design for USA

The United States ACI 318 and ACI 318 Metric standards 2019 edition were implemented for Required and Provided reinforcement design for beams, columns, foundations, slabs, and walls.

Reinforced Concrete Design Content for Brazil

New content related to the Reinforced Concrete design according to the Brazilian standards was implemented.

Reinforced Concrete Design Improvements

Additional enhancements have been introduced to the concrete design modules.

For technical details, performance enhancements, and fixes, see the release notes.

Earlier Versions

If you are looking for new feature information in earlier versions of Autodesk Robot Structural Analysis Professional, please refer to the help documentation archive.
