Base class for constraints. More...

#include <pyfbsdk_generated.h>

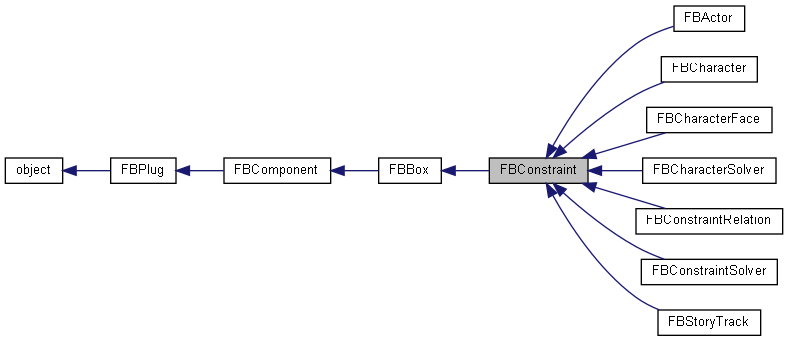

Inheritance diagram for FBConstraint:

[legend]

Public Member Functions
	FBConstraint (str pName)
	Constructor. More...

FBAnimationNode	AnimationNodeInCreate (kReference pUserId, FBModel pModel, str pAttribute)

FBAnimationNode	AnimationNodeInCreate (kReference pUserId, FBProperty pProperty)
	Animation Node Creations (IN). More...

FBAnimationNode	AnimationNodeOutCreate (kReference pUserId, FBModel pModel, str pAttribute)
	Animation Node Creations (IN/OUT). More...

FBConstraint	Clone ()
	Clone the constraint. More...

bool	DeformerBind (FBModel pModel)
	Bind/Unbind pModel to deformation constraint. More...

bool	DeformerUnBind (FBModel pModel)

bool	Disable (FBModel pModel)
	Disable constraint on pModel. More...

	FreezeSRT (FBModel pModel, bool pS, bool pR, bool pT)
	Freeze current model state. More...

	FreezeSuggested ()
	Suggest 'freeze'. More...

bool	ReferenceAdd (int pGroupIndex, FBModel pModel)
	Add a reference to a specified group. More...

FBModel	ReferenceGet (int pGroupIndex, int pItemIndex=0)
	Get a reference. More...

int	ReferenceGetCount (int pGroupIndex)
	Get number of references in a specified group. More...

int	ReferenceGroupAdd (str pGroupName, int pMaxItemCount)
	Add a group of references. More...

int	ReferenceGroupGetCount ()
	Return the number of reference groups. More...

int	ReferenceGroupGetMaxCount (int pGroupIndex)
	Get the maximum number of items that can exist in the reference group in question. More...

str	ReferenceGroupGetName (int pGroupIndex)
	Get the name of the reference group. More...

bool	ReferenceRemove (int pGroupIndex, FBModel pModel)
	Remove a reference to pModel from the group at pGroupIndex. More...

	RemoveAllAnimationNodes ()
	Remove animation nodes. More...

	RestoreModelState (FBModel pModel)
	Restore the saved model state onto pModel. More...

	SaveModelState (FBModel pModel, bool pS, bool pR, bool pT)
	Save current state of pModel. More...

	SetupAllAnimationNodes ()
	Setup animation nodes. More...

	SnapSuggested ()
	Suggest 'snap'. More...

Public Member Functions inherited from FBBox
	FBBox (str pName)
	Constructor. More...

bool	AnimationNodeDestroy (FBAnimationNode pAnimationNode)
	Destroy an animation node. More...

FBAnimationNode	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box. More...

bool	AnimationNodeIsUserData (FBAnimationNode pAnimationNode)
	Is the animation node user data? More...

FBAnimationNode	AnimationNodeOutGet ()

str	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'. More...

str	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'. More...

FBAnimationNode	GetInConnector (int pIndex)
	Get the animation node input associated with the given index. More...

int	GetInConnectorCount ()
	Get the number of animation node inputs for this box. More...

FBAnimationNode	GetOutConnector (int pIndex)
	Get the animation node output associated with the given index. More...

int	GetOutConnectorCount ()
	Get the number of animation node outputs for this box. More...

Public Member Functions inherited from FBComponent
	FBComponent ()
	Constructor. More...

str	ClassName ()
	Get the class name. More...

	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags. More...

	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags. More...

bool	FBCreate ()
	Open Reality Creation function. More...

	FBDelete ()
	Open Reality deletion function. More...

	FBDestroy ()
	Open Reality destruction function. More...

FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated). More...

bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled. More...

FBFileReference	GetOwnerFileReference (p0)
	Get the owner FileReference object. More...

	HardSelect ()
	HardSelect. More...

bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled. More...

bool	Is (int pTypeId)
	Returns true if object is of type TypeId. More...

bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessNamespaceHierarchy. More...

bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessObjectNamespace. More...

int	PropertyAdd (FBProperty pProperty)
	Add a property to the component's property manager. More...

bool	PropertyAddReferenceProperty (FBProperty pReferenceProperty)
	Add a reference property to the component's property manager. More...

FBProperty	PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
	Create user or dynamic property. More...

	PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading. More...

	PropertyRemove (FBProperty pProperty)
	Remove a Property from the component's Property manager. More...

	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags. More...

	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status. More...

Public Attributes
bool	Active
	Read Write Property: Active state. More...

bool	Deformer
	Read Write Property: Is a deformer constraint? More...

str	Description
	Read Write Property: Long description of constraint. More...

bool	HasLayout
	Read Write Property: Does the constraint have a layout? More...

bool	Lock
	Read Write Property: Lock state. More...

FBAction	Snap
	Function Property: Snap constraint. More...

FBAnimatableDouble	Weight
	Read Write Property: Weight of constraint. More...

Public Attributes inherited from FBBox
bool	Animatable
	Read Write Property: Is the box animatable. More...

bool	Live
	Read Write Property: Is live? More...

bool	RecordMode
	Read Write Property: Is recording? More...

str	UniqueName
	internal Unique name. More...

Public Attributes inherited from FBComponent
FBListComponent	Components
	List: List of components. More...

str	LongName
	Read Write Property: Name and namespace for object. More...

str	Name
	Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py. More...

FBListComponent	Parents
	List: Parents. More...

FBManager	PropertyList
	Read Only Property: Manages all of the properties for the component. More...

bool	Selected
	Read Write Property: Selected property. More...

int	TypeInfo
	Contains the Type information of the object. More...

Public Attributes inherited from FBPlug
str	ClassGroupName
	ClassGroupName of the object. More...

int	TypeInfo
	TypeInfo. More...

Detailed Description

Base class for constraints.

Constructor & Destructor Documentation

◆ FBConstraint()

FBConstraint ( str pName )

Constructor.

Parameters

pName Name of constraint.

Member Function Documentation

◆ AnimationNodeInCreate() [1/2]

FBAnimationNode AnimationNodeInCreate	(	kReference	pUserId,
		FBModel	pModel,
		str	pAttribute
	)

◆ AnimationNodeInCreate() [2/2]

FBAnimationNode AnimationNodeInCreate	(	kReference	pUserId,
		FBProperty	pProperty
	)

Animation Node Creations (IN).

Used to create the In connectors on an animation node. This function will return a newly created animation node, connected to the model specified by pProperty.

Parameters

pUserId	User specified reference number.
pProperty	Property of model to animate (must be animatable)

Returns: Newly created IN animation node.

◆ AnimationNodeOutCreate()

FBAnimationNode AnimationNodeOutCreate	(	kReference	pUserId,
		FBModel	pModel,
		str	pAttribute
	)

Animation Node Creations (IN/OUT).

Used to create the connectors (in or out) on an animation node. This function will return a newly created animation node, connected to the model specified by pModel.

Parameters

pUserId	User specified reference number.
pModel	Model to associate with animation node.
pAttribute	Attribute of model to animate (i.e. Translation, Lcl Translation, etc.)

Returns: Newly created IN/OUT animation node.

◆ Clone()

FBConstraint Clone ( )

Clone the constraint.

Returns: Newly created (and copied) constraint.

◆ DeformerBind()

bool DeformerBind ( FBModel pModel )

Bind/Unbind pModel to deformation constraint.

These functions are used for adding/removing a deformation binding to/from pModel if the constraint is a deformation constraint.

Parameters

pModel Model to bind/unbind.

Returns: true if successful.

◆ DeformerUnBind()

bool DeformerUnBind ( FBModel pModel )

◆ Disable()

bool Disable ( FBModel pModel )

Disable constraint on pModel.

Parameters

pModel Model on which constraint should be disabled.

Returns: true if successful.

◆ FreezeSRT()

FreezeSRT	(	FBModel	pModel,
		bool	pS,
		bool	pR,
		bool	pT
	)

Freeze current model state.

Parameters

pModel	Model to freeze constraint on.
pS	Scaling freeze?
pR	Rotation freeze?
pT	Translation freeze?

◆ FreezeSuggested()

FreezeSuggested ( )

Suggest 'freeze'.

◆ ReferenceAdd()

bool ReferenceAdd	(	int	pGroupIndex,
		FBModel	pModel
	)

Add a reference to a specified group.

Parameters

pGroupIndex	Group to add reference to.
pModel	Model to place at new reference.

Returns: true if successful.

Warning: If you try to add a model to a group that is already full, the success of the operation will be false and the reference will not be added.

◆ ReferenceGet()

FBModel ReferenceGet	(	int	pGroupIndex,
		int	pItemIndex = `0`
	)

Get a reference.

Parameters

pGroupIndex	Index of reference group containing desired reference.
pItemIndex	Index of reference in group to get (default is 0).

Returns: Model at specified reference.

◆ ReferenceGetCount()

int ReferenceGetCount ( int pGroupIndex )

Get number of references in a specified group.

Parameters

pGroupIndex Index of group to query the number of references.

Returns: Number of references in specified group.

◆ ReferenceGroupAdd()

int ReferenceGroupAdd	(	str	pGroupName,
		int	pMaxItemCount
	)

Add a group of references.

Parameters

pGroupName	Name of reference group to add.
pMaxItemCount	Maximum number of items in pGroupName.

Returns: Index of new reference group.

◆ ReferenceGroupGetCount()

int ReferenceGroupGetCount ( )

Return the number of reference groups.

Returns: Number of reference groups.

◆ ReferenceGroupGetMaxCount()

int ReferenceGroupGetMaxCount ( int pGroupIndex )

Get the maximum number of items that can exist in the reference group in question.

Parameters

pGroupIndex Index of reference group.

Returns: Maximum number of items that can be added to the reference group.

◆ ReferenceGroupGetName()

str ReferenceGroupGetName ( int pGroupIndex )

Get the name of the reference group.

Parameters

pGroupIndex Index of the reference group to get the name for.

Returns: The name of the reference group pGroupIndex.

◆ ReferenceRemove()

bool ReferenceRemove	(	int	pGroupIndex,
		FBModel	pModel
	)

Remove a reference to pModel from the group at pGroupIndex.

Parameters

pGroupIndex	Index to remove reference from.
pModel	Model to remove reference from.

Returns: true if successful.

◆ RemoveAllAnimationNodes()

RemoveAllAnimationNodes ( )

Remove animation nodes.

◆ RestoreModelState()

RestoreModelState ( FBModel pModel )

Restore the saved model state onto pModel.

Parameters

pModel Model to affect with previous state.

◆ SaveModelState()

SaveModelState	(	FBModel	pModel,
		bool	pS,
		bool	pR,
		bool	pT
	)

Save current state of pModel.

Parameters

pModel	Model to save.
pS	Scaling information?
pR	Rotation information?
pT	Translation information?

◆ SetupAllAnimationNodes()

SetupAllAnimationNodes ( )

Setup animation nodes.

◆ SnapSuggested()

SnapSuggested ( )

Suggest 'snap'.

Member Data Documentation

◆ Active

bool Active

Read Write Property: Active state.

◆ Deformer

bool Deformer

Read Write Property: Is a deformer constraint?

◆ Description

str Description

Read Write Property: Long description of constraint.

◆ HasLayout

bool HasLayout

Read Write Property: Does the constraint have a layout?

◆ Lock

bool Lock

Read Write Property: Lock state.

◆ Snap

FBAction Snap

Function Property: Snap constraint.

◆ Weight

FBAnimatableDouble Weight

Read Write Property: Weight of constraint.

Public Member Functions

Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ FBConstraint()

Member Function Documentation

◆ AnimationNodeInCreate() [1/2]

◆ AnimationNodeInCreate() [2/2]

◆ AnimationNodeOutCreate()

◆ Clone()

◆ DeformerBind()

◆ DeformerUnBind()

◆ Disable()

◆ FreezeSRT()

◆ FreezeSuggested()

◆ ReferenceAdd()

◆ ReferenceGet()

◆ ReferenceGetCount()

◆ ReferenceGroupAdd()

◆ ReferenceGroupGetCount()

◆ ReferenceGroupGetMaxCount()

◆ ReferenceGroupGetName()

◆ ReferenceRemove()

◆ RemoveAllAnimationNodes()

◆ RestoreModelState()

◆ SaveModelState()

◆ SetupAllAnimationNodes()

◆ SnapSuggested()

Member Data Documentation

◆ Active

◆ Deformer

◆ Description

◆ HasLayout

◆ Lock

◆ Snap

◆ Weight
