Displays the diameter and name of the calibration sphere used to calculate the position of the probe and the effective diameter of the stylus.
Note: The
Calibration area is displayed only when creating inspections for CNC machines or manual CMMs.
Use the area to customize the calibration process, and to view and manage calibrations.

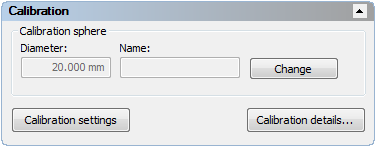

The Calibration area of the of the Machine tab displays the following options:
- Change to move the calibration sphere. The Calibration Sphere Repositioning Wizard is displayed.
- Calibration settings
to change the number of calibration points, the safe distances settings, traceability, or manual calibration. The
Calibration Settings dialog is displayed.
The Calibration Settings button is not available when Simple calibration mode is selected in the Calibration page of the Options dialog.
- Calibration Details to view and export the details of calibrations performed during the inspection. The Calibration Details dialog is displayed.
