To Select a Project Field

Use this procedure to select a project field to insert into a drawing.

1. Open the Field dialog box from one of the following components:

   If you want to…	Then…
   insert a project field into a text element	see To Insert Fields in AutoCAD Text.
   insert a project field into a multiline text (mtext) element	see To Insert Fields in AutoCAD Multiline Text.
   insert a project field into an AutoCAD table cell	see To Insert Fields in AutoCAD Table Cells.
   insert a project field into an attribute definition	see To Insert Fields in AutoCAD Attributes.
   insert a project field into a property set definition	see To Insert Fields in Property Set Definitions.
   insert a project field into an object property	see To Insert Field Placeholders in Object Properties.
   insert a project field into an object style	see To Add Fields to Object Style Properties.

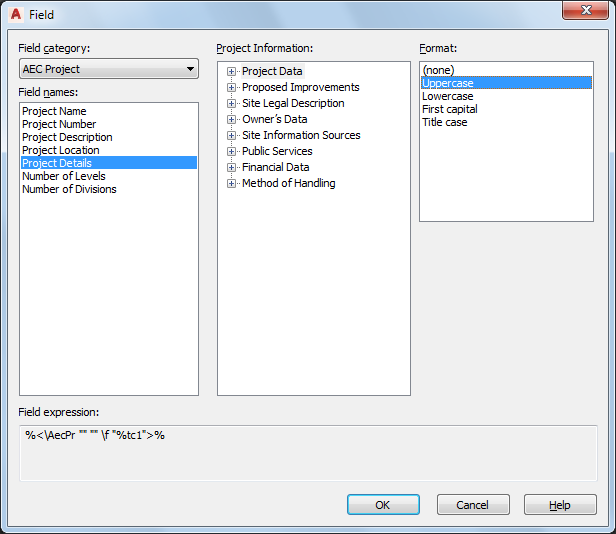

2. Under Field Category, select AEC Project.


   Under Field Names, all project-related fields are displayed.

3. Select the field you want to insert.
4. If you have selected Project Details, you need to select the detail from the categories listed under Project Information.
5. Under Format, select a text format for the field. You can choose between Uppercase, Lowercase, First Capital, and Title case.
6. Click OK.
