ILayerControl provides API access to layer control functionality. More...

#include <C:/adskgit/3dsmax/3dsmax/3dswin/src/maxsdk/include/ILayerControl.h>

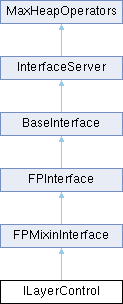

Inheritance diagram for ILayerControl:

Public Types
enum	{ getNumLayers , setLayerActive , getLayerActive , copyLayer , pasteLayer , deleteLayer , count , setLayerActive_prop , getLayerActive_prop , getLayerName , setLayerName , getSubCtrl , getLayerWeight , setLayerWeight , getLayerMute , setLayerMute , collapseLayer , disableLayer , getLayerLocked , setLayerLocked }
Public Types inherited from BaseInterface
enum	LifetimeType { noRelease , immediateRelease , wantsRelease , serverControlled }

Public Member Functions
	FN_0 (getNumLayers, TYPE_INT, GetLayerCount)
	VFN_1 (setLayerActive, SetLayerActive, TYPE_INDEX)
	FN_0 (getLayerActive, TYPE_INDEX, GetLayerActive)
	VFN_1 (copyLayer, CopyLayer, TYPE_INDEX)
	VFN_1 (pasteLayer, PasteLayer, TYPE_INDEX)
	VFN_1 (deleteLayer, DeleteLayer, TYPE_INDEX)
	FN_1 (getLayerName, TYPE_TSTR_BV, GetLayerName, TYPE_INDEX)
	VFN_2 (setLayerName, SetLayerName, TYPE_INDEX, TYPE_STRING)
	RO_PROP_FN (count, GetLayerCount, TYPE_INT)
	PROP_FNS (getLayerActive_prop, GetLayerActive, setLayerActive_prop, SetLayerActive, TYPE_INDEX)
	FN_1 (getSubCtrl, TYPE_CONTROL, GetSubCtrl, TYPE_INDEX)
	FN_2 (getLayerWeight, TYPE_FLOAT, GetLayerWeight, TYPE_INDEX, TYPE_TIMEVALUE)
	VFN_3 (setLayerWeight, SetLayerWeight, TYPE_INDEX, TYPE_TIMEVALUE, TYPE_FLOAT)
	FN_1 (getLayerMute, TYPE_bool, GetLayerMute, TYPE_INDEX)
	VFN_2 (setLayerMute, SetLayerMute, TYPE_INDEX, TYPE_bool)
	VFN_1 (collapseLayer, CollapseLayer, TYPE_INDEX)
	VFN_0 (disableLayer, DisableLayer)
	FN_1 (getLayerLocked, TYPE_bool, GetLayerLocked, TYPE_INDEX)
	VFN_2 (setLayerLocked, SetLayerLocked, TYPE_INDEX, TYPE_bool)
FPInterfaceDesc *	GetDesc ()
virtual int	GetLayerCount ()=0
	Return the total number of layers on this layer control.
virtual void	SetLayerActive (int index)=0
	Set the layer specified by the index to be active.
virtual int	GetLayerActive ()=0
	Returns which layer is active.
virtual void	DeleteLayer (int index)=0
	Delete the specified layer.
virtual void	CopyLayer (int index)=0
	Copy the specified layer so that it may be pasted.
virtual void	PasteLayer (int index)=0
	Paste the copied layer to the specified index.
virtual void	SetLayerName (int index, MSTR name)=0
	Set the name of the specified layer.
virtual MSTR	GetLayerName (int index)=0
	Get the name of the specified layer.
virtual float	GetLayerWeight (int index, TimeValue t)=0
	Get the layer weight for the specified layer at the specified time.
virtual void	SetLayerWeight (int index, TimeValue t, float weight)=0
	Set the layer weight for the specified layer at the specified time.
virtual bool	GetLayerMute (int index)=0
	Get whether or not a particular layer is muted or not.
virtual void	SetLayerMute (int index, bool mute)=0
	Set whether or not a particular layer is muted or not.
virtual Control *	GetSubCtrl (int in_index) const =0
	Get a subcontroller from its index.
virtual void	CollapseLayer (int index)=0
	Collapse the layer at the specified index so that it gets deleted and it's keys and values are baked down to the previous layer.
virtual void	DisableLayer ()=0
	Disables and remove the layer controller, and replace it with the first, base layer.
virtual bool	GetLayerLocked (int index)=0
	Get whether or not the layer is locked.
virtual void	SetLayerLocked (int index, bool locked)=0
	Set whether or not a particular layer is locked.
Public Member Functions inherited from FPMixinInterface
	FPMixinInterface ()
virtual LifetimeType	LifetimeControl ()
virtual CoreExport bool	RegisterNotifyCallback (InterfaceNotifyCallback *incb)
virtual void	UnRegisterNotifyCallback (InterfaceNotifyCallback *incb)
CoreExport	~FPMixinInterface ()
virtual BaseInterface *	GetInterface (Interface_ID id)
virtual FPInterfaceDesc *	GetDescByID (Interface_ID id)
virtual Interface_ID	GetID ()
Public Member Functions inherited from FPInterface
virtual CoreExport FPStatus	Invoke (FunctionID fid, TimeValue t=0, FPParams *params=NULL)
virtual FPStatus	Invoke (FunctionID fid, FPParams *params)
virtual CoreExport FPStatus	Invoke (FunctionID fid, TimeValue t, FPValue &result, FPParams *params=NULL)
virtual FPStatus	Invoke (FunctionID fid, FPValue &result, FPParams *params=NULL)
virtual CoreExport FunctionID	FindFn (const MCHAR *name)
virtual CoreExport BOOL	IsEnabled (FunctionID actionID)
virtual CoreExport BOOL	IsChecked (FunctionID actionID)
virtual CoreExport BOOL	IsVisible (FunctionID actionID)
virtual CoreExport FunctionID	GetIsEnabled (FunctionID actionID)
virtual CoreExport FunctionID	GetIsChecked (FunctionID actionID)
virtual CoreExport FunctionID	GetIsVisible (FunctionID actionID)
virtual ActionTable *	GetActionTable ()
virtual void	EnableActions (BOOL onOff)
Public Member Functions inherited from BaseInterface
virtual UtilExport	~BaseInterface ()
	Destructor.
virtual BaseInterface *	AcquireInterface ()
virtual void	ReleaseInterface ()
virtual void	DeleteInterface ()
virtual BaseInterface *	CloneInterface (void *remapDir=nullptr)
Public Member Functions inherited from InterfaceServer
virtual UtilExport	~InterfaceServer ()
	Destructor.
template<class InterfaceType>
InterfaceType *	GetTypedInterface ()

Additional Inherited Members
Static Public Member Functions inherited from MaxHeapOperators
static UtilExport void *	operator new (size_t size)
	Standard new operator used to allocate objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e)
	Standard new operator used to allocate objects if there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new (size_t size, const char *filename, int line)
	New operator used to allocate objects that takes the filename and line number where the new was called If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, int block_type, const char *filename, int line)
	New operator used to allocate objects that takes the type of memory, filename and line number where the new was called If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e, const char *filename, int line)
	New operator used to allocate objects that takes the filename and line number where the new was called If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new (size_t size, unsigned long flags)
	New operator used to allocate objects that takes extra flags to specify special operations If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e, unsigned long flags)
	New operator used to allocate objects that takes extra flags to specify special operations If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size, const char *filename, int line)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, int block_type, const char *filename, int line)
	New operator used to allocate arrays of objects.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e, const char *filename, int line)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size, unsigned long flags)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e, unsigned long flags)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void	operator delete (void *ptr)
	Standard delete operator used to deallocate an object If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, const std::nothrow_t &e)
	Standard delete operator used to deallocate an object If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete (void ptr, const char filename, int line)
	Delete operator used to deallocate an object that takes the filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void ptr, int block_type, const char filename, int line)
	Delete operator used to deallocate an object that takes the type of memory, filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void ptr, const std::nothrow_t &e, const char filename, int line)
	Delete operator used to deallocate an object that takes the filename and line number where the delete was called If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete (void *ptr, unsigned long flags)
	Delete operator used to deallocate an object that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, const std::nothrow_t &e, unsigned long flags)
	Delete operator used to deallocate an object that takes extra flags to specify special operations If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void *ptr)
	Standard delete operator used to deallocate an array of objects If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, const std::nothrow_t &e)
	Standard delete operator used to deallocate an array of objects If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void ptr, const char filename, int line)
	Delete operator used to deallocate an array of objects that takes the filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void ptr, int block_type, const char filename, int line)
	Delete operator used to deallocate an array of objects that takes the type of memory, filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void ptr, const std::nothrow_t &e, const char filename, int line)
	Delete operator used to deallocate an array of objects that takes the filename and line number where the delete was called If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void *ptr, unsigned long flags)
	Delete operator used to deallocate an array of objects that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, const std::nothrow_t &e, unsigned long flags)
	Delete operator used to deallocate an array of objects that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void *	operator new (size_t size, void *placement_ptr)
	Placement new operator.
static UtilExport void	operator delete (void ptr, void placement_ptr)
	Placement delete operator.
static UtilExport void *	aligned_malloc (size_t size, size_t alignment)
	Allocates memory on a specified alignment boundary.
static UtilExport void *	aligned_realloc (void *ptr, size_t size, size_t alignment)
	Reallocates memory on a specified alignment boundary.
static UtilExport void	aligned_free (void *ptr)
	Frees a block of memory that was allocated with aligned_malloc/aligned_realloc.
Static Public Attributes inherited from FPInterface
static CoreExport FPInterfaceDesc	nullInterface
Protected Member Functions inherited from FPMixinInterface
	FPMixinInterface (const FPMixinInterface &rhs)
FPMixinInterface &	operator= (const FPMixinInterface &rhs)
Protected Member Functions inherited from FPInterface
virtual FPStatus	_dispatch_fn (FunctionID fid, TimeValue t, FPValue &result, FPParams *p)
Protected Attributes inherited from FPMixinInterface
Tab< InterfaceNotifyCallback * > *	interfaceNotifyCBs

Detailed Description

ILayerControl provides API access to layer control functionality.

The interface is returned by calling GetILayerControlInterface.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
getNumLayers
setLayerActive
getLayerActive
copyLayer
pasteLayer
deleteLayer
count
setLayerActive_prop
getLayerActive_prop
getLayerName
setLayerName
getSubCtrl
getLayerWeight
setLayerWeight
getLayerMute
setLayerMute
collapseLayer
disableLayer
getLayerLocked
setLayerLocked

            { getNumLayers, setLayerActive, getLayerActive,  copyLayer,pasteLayer,
              deleteLayer, count, setLayerActive_prop, getLayerActive_prop,getLayerName, setLayerName,
              getSubCtrl, getLayerWeight,setLayerWeight,getLayerMute, setLayerMute,collapseLayer,
              disableLayer, getLayerLocked, setLayerLocked};

Member Function Documentation

◆ FN_0() [1/2]

FN_0	(	getNumLayers	,
		TYPE_INT	,
		GetLayerCount	)

◆ VFN_1() [1/5]

VFN_1	(	setLayerActive	,
		SetLayerActive	,
		TYPE_INDEX	)

◆ FN_0() [2/2]

FN_0	(	getLayerActive	,
		TYPE_INDEX	,
		GetLayerActive	)

◆ VFN_1() [2/5]

VFN_1	(	copyLayer	,
		CopyLayer	,
		TYPE_INDEX	)

◆ VFN_1() [3/5]

VFN_1	(	pasteLayer	,
		PasteLayer	,
		TYPE_INDEX	)

◆ VFN_1() [4/5]

VFN_1	(	deleteLayer	,
		DeleteLayer	,
		TYPE_INDEX	)

◆ FN_1() [1/4]

FN_1	(	getLayerName	,
		TYPE_TSTR_BV	,
		GetLayerName	,
		TYPE_INDEX	)

◆ VFN_2() [1/3]

VFN_2	(	setLayerName	,
		SetLayerName	,
		TYPE_INDEX	,
		TYPE_STRING	)

◆ RO_PROP_FN()

RO_PROP_FN	(	count	,
		GetLayerCount	,
		TYPE_INT	)

◆ PROP_FNS()

PROP_FNS	(	getLayerActive_prop	,
		GetLayerActive	,
		setLayerActive_prop	,
		SetLayerActive	,
		TYPE_INDEX	)

◆ FN_1() [2/4]

FN_1	(	getSubCtrl	,
		TYPE_CONTROL	,
		GetSubCtrl	,
		TYPE_INDEX	)

◆ FN_2()

FN_2	(	getLayerWeight	,
		TYPE_FLOAT	,
		GetLayerWeight	,
		TYPE_INDEX	,
		TYPE_TIMEVALUE	)

◆ VFN_3()

VFN_3	(	setLayerWeight	,
		SetLayerWeight	,
		TYPE_INDEX	,
		TYPE_TIMEVALUE	,
		TYPE_FLOAT	)

◆ FN_1() [3/4]

FN_1	(	getLayerMute	,
		TYPE_bool	,
		GetLayerMute	,
		TYPE_INDEX	)

◆ VFN_2() [2/3]

VFN_2	(	setLayerMute	,
		SetLayerMute	,
		TYPE_INDEX	,
		TYPE_bool	)

◆ VFN_1() [5/5]

VFN_1	(	collapseLayer	,
		CollapseLayer	,
		TYPE_INDEX	)

◆ VFN_0()

VFN_0	(	disableLayer	,
		DisableLayer	)

◆ FN_1() [4/4]

FN_1	(	getLayerLocked	,
		TYPE_bool	,
		GetLayerLocked	,
		TYPE_INDEX	)

◆ VFN_2() [3/3]

VFN_2	(	setLayerLocked	,
		SetLayerLocked	,
		TYPE_INDEX	,
		TYPE_bool	)

◆ GetDesc()

FPInterfaceDesc * GetDesc ( )

virtual

Remarks: Returns a pointer to the class which contains the interface metadata.

Implements FPInterface.

◆ GetLayerCount()

virtual int GetLayerCount ( )

pure virtual

Return the total number of layers on this layer control.

Returns: The total number of layers.

◆ SetLayerActive()

virtual void SetLayerActive ( int index )

pure virtual

Set the layer specified by the index to be active.

Note that this also sets this layer to be active on other layers on the same node that this layer is on, since layers on a node are synchronized.

Parameters

[in] index The layer to set active.

◆ GetLayerActive()

virtual int GetLayerActive ( )

pure virtual

Returns which layer is active.

Returns: The active layer.

◆ DeleteLayer()

virtual void DeleteLayer ( int index )

pure virtual

Delete the specified layer.

Note since layers are synchronized on a node, other layers on the same node will also get deleted.

Parameters

[in] index The layer to delete.

◆ CopyLayer()

virtual void CopyLayer ( int index )

pure virtual

Copy the specified layer so that it may be pasted.

Note since layers are synchronized on a node, other layers on the same node will also get cut.

Parameters

[in] index The layer to cut.

◆ PasteLayer()

virtual void PasteLayer ( int index )

pure virtual

Paste the copied layer to the specified index.

Note since layers are synchronized on a node, other layers on the same node will also get pasted. If no layer is copied, then nothing happens.

Parameters

[in] index Where the pasted layer will go.

◆ SetLayerName()

virtual void SetLayerName	(	int	index,
		MSTR	name )

pure virtual

Set the name of the specified layer.

Parameters

[in]	index	Which layer to rename.
[in]	name	The new name of the layer. Remember layer names are unique so if a layer exists with this name, nothing happens.

◆ GetLayerName()

virtual MSTR GetLayerName ( int index )

pure virtual

Get the name of the specified layer.

Parameters

[in] index Which layer's name to get.

Returns: Returns the layer's name. If the index is invalid, returns an empty string.

◆ GetLayerWeight()

virtual float GetLayerWeight	(	int	index,
		TimeValue	t )

pure virtual

Get the layer weight for the specified layer at the specified time.

Parameters

[in]	index	Where to get the layer weight.
[in]	t	At what time to get the layer weight.

Returns: Returns the layer weight.

◆ SetLayerWeight()

virtual void SetLayerWeight	(	int	index,
		TimeValue	t,
		float	weight )

pure virtual

Set the layer weight for the specified layer at the specified time.

Parameters

[in]	index	Where to set the layer weight.
[in]	t	At what time to set the layer weight.
[in]	weight	The weight to set.

◆ GetLayerMute()

virtual bool GetLayerMute ( int index )

pure virtual

Get whether or not a particular layer is muted or not.

Parameters

[in] index Which layer to see if it's muted.

Returns: Whether or not the layer is muted or not.

◆ SetLayerMute()

virtual void SetLayerMute	(	int	index,
		bool	mute )

pure virtual

Set whether or not a particular layer is muted or not.

Parameters

[in]	index	Which layer to mute or not.
[in]	mute	The mute value for the specified layer.

◆ GetSubCtrl()

virtual Control * GetSubCtrl ( int in_index ) const

pure virtual

Get a subcontroller from its index.

Returns: - a pointer to a Control, or NULL if the index is invalid.

Parameters

[in] in_index Index of the list controller subcontroller

◆ CollapseLayer()

virtual void CollapseLayer ( int index )

pure virtual

Collapse the layer at the specified index so that it gets deleted and it's keys and values are baked down to the previous layer.

Parameters

[in] index Where to collapse. The index must be greater than zero since we can't collapse the first layer.

◆ DisableLayer()

virtual void DisableLayer ( )

pure virtual

Disables and remove the layer controller, and replace it with the first, base layer.

Note that doing this may delete the layer control also, thus making this interface invalid. Nothing will happen if the layer controller has more than one layer.

◆ GetLayerLocked()

virtual bool GetLayerLocked ( int index )

pure virtual

Get whether or not the layer is locked.

A locked layer cannot be animated nor collapsed, or pasted over and an object with a locked layer cannot get disabled.

Parameters

[in] index Which layer to see if it's locked.

Returns: Whether or not the layer is locked or not.

◆ SetLayerLocked()

virtual void SetLayerLocked	(	int	index,
		bool	locked )

pure virtual

Set whether or not a particular layer is locked.

A locked layer cannot be animated nor collapsed, or pasted over and an object with a locked layer cannot get disabled.

Parameters

[in]	locked	the locked value for the specified layer. If true the layer is locked if false it is unlocked.
[in]	index	Which layer output to lock or unlock.

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

Member Function Documentation

◆ FN_0() [1/2]

◆ VFN_1() [1/5]

◆ FN_0() [2/2]

◆ VFN_1() [2/5]

◆ VFN_1() [3/5]

◆ VFN_1() [4/5]

◆ FN_1() [1/4]

◆ VFN_2() [1/3]

◆ RO_PROP_FN()

◆ PROP_FNS()

◆ FN_1() [2/4]

◆ FN_2()

◆ VFN_3()

◆ FN_1() [3/4]

◆ VFN_2() [2/3]

◆ VFN_1() [5/5]

◆ VFN_0()

◆ FN_1() [4/4]

◆ VFN_2() [3/3]

◆ GetDesc()

◆ GetLayerCount()

◆ SetLayerActive()

◆ GetLayerActive()

◆ DeleteLayer()

◆ CopyLayer()

◆ PasteLayer()

◆ SetLayerName()

◆ GetLayerName()

◆ GetLayerWeight()

◆ SetLayerWeight()

◆ GetLayerMute()

◆ SetLayerMute()

◆ GetSubCtrl()

◆ CollapseLayer()

◆ DisableLayer()

◆ GetLayerLocked()

◆ SetLayerLocked()
