Instrument for a camera device. More...

#include <fbtracker.h>

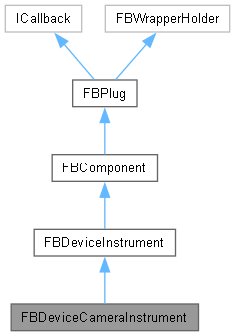

Inheritance diagram for FBDeviceCameraInstrument:

[legend]

Public Member Functions
	FBDeviceCameraInstrument (FBDevice *pDevice)
	Constructor.

virtual bool	LoadLensTables (const char *pFilename)
	Load the lens lookup tables.

virtual void	ProcessLensData (FBDeviceCameraPacket *pDataPacket)
	Process the lens table data for this data packet.

virtual bool	InstrumentWriteData (FBEvaluateInfo *pEvaluateInfo) override
	Write data to instrument's connectors.

virtual void	InstrumentRecordFrame (FBTime pRecordTime, FBDeviceNotifyInfo &pNotifyInfo) override
	Record the data to the function curves for the instrument.

virtual bool	FbxStore (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat) override
	Storage/Retrieval of information into the FBX file format.

virtual bool	FbxRetrieve (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat) override

Public Member Functions inherited from FBDeviceInstrument
	FBDeviceInstrument (FBDevice *pDevice)
	Constructor.

virtual bool	InstrumentWriteData (FBEvaluateInfo *pEvaluateInfo)
	Write data to instrument's connectors.

virtual void	InstrumentRecordFrame (FBTime pRecordTime, FBDeviceNotifyInfo &pNotifyInfo)
	Record the data to the function curves for the instrument.

virtual bool	FbxStore (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat)
	Storage/Retrieval of information into the FBX file format.

virtual bool	FbxRetrieve (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat)

Public Member Functions inherited from FBComponent
	FBComponent (HIObject pObject)
	Constructor.

virtual	~FBComponent ()
	Destructor.

virtual bool	FBCreate ()
	Open Reality Creation function.

virtual void	FBDestroy ()
	Open Reality destruction function.

virtual void	FBDelete () override
	Open Reality deletion function.

virtual bool	SetHIObject (HIObject pObject, bool pSDKComponent) override
	Assign component to an internal pointer.

virtual int	PropertyAdd (FBProperty *pProperty)
	Add a property to the component's property manager.

bool	PropertyAddReferenceProperty (FBProperty *pReferenceProperty)
	Add a reference property to the component's property manager.

void	PropertyRemove (FBProperty *pProperty)
	Remove a Property from the component's Property manager.

void	PropertyGetModifiedList (FBArrayTemplate< FBProperty * > &pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading.

FBProperty *	PropertyCreate (const char pName, FBPropertyType pType, const char pDataType, bool pAnimatable, bool pIsUser=false, FBProperty *pReferenceSource=NULL)
	Create user or dynamic property.

FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated).

void	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags.

bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled.

void	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags.

void	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags.

void	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status.

bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled.

bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, const char pNamespaceName, const char pReplaceTo=NULL, bool pAddRight=true)
	ProcessNamespaceHierarchy.

bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, const char pNamespaceName, const char pReplaceTo=NULL, bool pAddRight=true)
	ProcessObjectNamespace.

virtual const char *	ClassName () override
	Get the class name.

virtual bool	UseCustomPropertyViewSet () const
	Use the custom property viewSet or not.

const char *	GetFullName (void)
	Get the full name.

void	SetOwnerNamespace (FBNamespace *pOwnerNSObj)
	Set the owner Namespace object.

FBNamespace *	GetOwnerNamespace (void)
	Get the owner Namespace object.

FBFileReference *	GetOwnerFileReference (void)
	Get the owner FileReference object.

void	HardSelect ()
	HardSelect.

virtual bool	Is (int pTypeId) override
	Returns true if object is of type TypeId.

virtual int	GetTypeId () override
	GetTypeId( int pTypeId )

Public Member Functions inherited from FBWrapperHolder
FBScriptWrapper *	GetWrapper ()
	Return the wrapper interface of this FBObject.

void	AddWrapper (FBScriptWrapper *)

void	RemoveWrapper (FBScriptWrapper *)

Public Attributes
FBPropertyDeviceCameraPacket	Packet
	Property(RW): Used as a buffer to contain the current state of the instrument, use to put data in connector.

FBPropertyDeviceCameraPacket	RecordPacket
	Property(RW): Used as a buffer to contain the record state of the instrument, use to create the keys when recording.

FBPropertyBool	LensTableLoaded
	Property(R-): Has the lens table been loaded?

FBPropertyString	LensCalibrationFilename
	Property(R-): Lens calibration filename.

FBPropertyBool	ManualFovMode
	Property(RW): In manual mode (not using encoder values to control zoom)?

FBPropertyDouble	ManualFovX
	Property(RW): Manual field of view X value.

FBPropertyDouble	ManualFovY
	Property(RW): Manual field of view Y value.

FBPropertyBool	ManualCenterMode
	Property(RW): Manually adjust the optical center?

FBPropertyDouble	ManualCenterX
	Property(RW): Manual optical center X coordinate.

FBPropertyDouble	ManualCenterY
	Property(RW): Manual optical center Y coordinate.

FBPropertyBool	LensFovInDegrees
	Property(RW): Is FOV in table in degrees (false)

FBPropertyBool	InvertZoom
	Property(RW): Invert the zoom encoder values?

FBPropertyBool	InvertFocus
	Property(RW): Invert the focus encoder values?

FBPropertyDouble	ZoomMultiplier
	Property(RW): Filmback multiplier.

FBPropertyDouble	NodalMultiplier
	Property(RW): Multiplier for nodal offset.

FBPropertyVector3d	TranslationOffset
	Property(RW): Translation offset;

FBPropertyVector3d	RotationOffset
	Property(RW): Rotation offset.

FBPropertyDouble	AspectRatio
	Property(RW): Aspect ratio for calculating the Field of View X value.

Public Attributes inherited from FBDeviceInstrument
FBPropertyDevice	Device
	Read Write Property: Handle to owner device.

FBPropertyBool	Active
	Read Write Property: Is instrument active?

FBPropertyModelTemplate	ModelTemplate
	Read Write Property: Model template to build instruments' structure.

Public Attributes inherited from FBComponent
FBPropertyManager	PropertyList
	Read Only Property: Manages all of the properties for the component.

FBPropertyListComponent	Components
	List: List of components.

FBPropertyListComponent	Parents
	List: Parents.

FBPropertyBool	Selected
	Read Write Property: Selected property.

FBPropertyString	Name
	Read Write Property: Unique name of object.

FBPropertyString	LongName
	Read Write Property: Name and namespace for object.

FBPropertyFolder	Folder
	Read Write Property: The folder that contain this component.

Additional Inherited Members
Static Public Member Functions inherited from FBComponent
static int	GetInternalClassId ()

static void	FBComponentSetName (FBComponent pObject, const char pName)

static const char *	FBComponentGetName (FBComponent *pObject)

static void	FBComponentSetLongName (FBComponent pObject, const char pName)

static const char *	FBComponentGetLongName (FBComponent *pObject)

Static Public Attributes inherited from FBComponent
static int	TypeInfo
	Contains the Type information of the object.

Protected Member Functions inherited from FBPlug
bool	IsSDKComponent ()
	Return whether or not item is an SDK component.

bool	ConnectSrc (FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection.

bool	ConnectDst (FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection.

bool	ConnectSrcAt (int pDst_SrcIndex, FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection.

bool	ConnectDstAt (int pSrc_DstIndex, FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection.

bool	DisconnectDst (FBPlug *pDst)
	Remove a destination connection.

bool	DisconnectSrc (FBPlug *pSrc)
	Remove a source connection.

void	DisconnectAllSrc ()
	Remove all source connections.

void	DisconnectAllDst ()
	Remove all destination connections.

bool	DisconnectDstAt (int pIndex)
	Remove a destination connection at a specified index.

bool	DisconnectSrcAt (int pIndex)
	Remove a source connection at a specified index.

bool	ReplaceDstAt (int pIndex, FBPlug *pDst)
	Replace a destination connection at a specified index.

bool	ReplaceSrcAt (int pIndex, FBPlug *pSrc)
	Replace a source connection at a specified index.

bool	SwapSrc (int pIndexA, int pIndexB)
	Swap source connection at index A with source connection at index B.

bool	MoveSrcAt (int pIndex, int pAtIndex)
	Move source connection at pIndex to pAtIndex.

bool	MoveSrcAt (FBPlug pSrc, FBPlug pAtSrc)
	Move source connection pSrc to the position of pAtSrc.

int	GetSrcCount ()
	Get source connection count.

FBPlug *	GetSrc (int pIndex)
	Get a source connection's plug at specified index.

FBConnectionType	GetSrcType (int pIndex)
	Get a source connection's type at specified index.

int	GetDstCount ()
	Get destination connection count.

FBPlug *	GetDst (int pIndex)
	Get a destination connection's plug at specified index.

FBConnectionType	GetDstType (int pIndex)
	Get a destination connection's type at specified index.

bool	BeginChange ()
	Begins a change on multiple plugs.

void	EndChange ()
	Ends a change on multiple plugs.

void	SetSelfModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's self modification flag.

bool	GetSelfModified (FBPlugModificationFlag pFlag)
	Tell if the plug's self has changed.

void	SetContentModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's owned property/object's modification flag.

bool	GetContentModified (FBPlugModificationFlag pFlag)
	Tell if the plug's content has changed.

int	GetPlugConnectionModifiedList (FBPlugList &pPlugList, FBPlugModificationFlag pConnectionModificatonFlag, bool pAddRemove)
	Get plug's modified src/dst property/object connection added/removed List.

bool	RevertModification (FBPlugModificationFlag pFlag=kFBAllModifiedMask)
	Revert the plug's modification to original status.

void	SetStatusFlag (FBPlugStatusFlag pStatus, bool pValue)
	Set the plug's status flag.

bool	GetStatusFlag (FBPlugStatusFlag pStatus) const
	Tell if the plug's status has changed.

FBPlug *	GetOwner ()
	Get the owner of this plug.

FBPlug *	GetOwned (int pIndex)
	Get the owned plug at specified index.

int	GetOwnedCount ()
	Get the owned plug count.

virtual const char *	ClassName ()
	internal System vars.

virtual bool	Is (int pTypeId)
	Is( int pTypeId )

virtual int	GetTypeId ()
	GetTypeId( int pTypeId )

virtual bool	PlugDataNotify (FBConnectionAction pAction, FBPlug pThis, void pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugDataNotify when overloaded is equivalent of FBSystem.OnConnectionDataNotify but in the context of the derived object only.

virtual bool	PlugStateNotify (FBConnectionAction pAction, FBPlug pThis, void pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugStateNotify when overloaded is equivalent of FBSystem.OnConnectionStateNotify but in the context of the derived object only.

virtual bool	PlugNotify (FBConnectionAction pAction, FBPlug pThis, int pIndex, FBPlug pPlug=NULL, FBConnectionType pConnectionType=kFBConnectionTypeNone, FBPlug *pNewPlug=NULL)
	PlugNotify when overloaded is equivalent of FBSystem.OnConnectionNotify but in the context of the derived object only.

virtual void	FBDelete ()
	Actual destructor for a FBPlug.

Static Protected Member Functions inherited from FBPlug
static int	GetInternalClassId ()
	Internal class Id.

Protected Attributes inherited from FBPlug
bool	mAllocated
	Contain the Allocation State of the Component.

HIObject	mObject
	Handle on the Plug.

bool	mSDKComponent
	bool Plug is an SDK component.

Static Protected Attributes inherited from FBPlug
static const char *	ClassGroupName
	ClassGroupName of the object.

static int	TypeInfo
	TypeInfo.

static int	mGlobalTypeInfo
	Represente the Type Index.

Detailed Description

Instrument for a camera device.

This instrument provides the necessary parameters to provide camera tracking support in a device driver (the FBDeviceCamera class and its derivatives). This will also provide a management system for lens look-up tables. Lens tables are used in order to interpret linear encoder values with the non- linear changes in the actual lens.

Definition at line 227 of file fbtracker.h.

Constructor & Destructor Documentation

◆ FBDeviceCameraInstrument()

FBDeviceCameraInstrument ( FBDevice * pDevice )

Constructor.

Parameters

pDevice Parent device.

Member Function Documentation

◆ FbxRetrieve()

virtual bool FbxRetrieve	(	FBFbxObject *	pFbxObject,
		kFbxObjectStore	pStoreWhat
	)

overridevirtual

Reimplemented from FBDeviceInstrument.

◆ FbxStore()

virtual bool FbxStore	(	FBFbxObject *	pFbxObject,
		kFbxObjectStore	pStoreWhat
	)

overridevirtual

Storage/Retrieval of information into the FBX file format.

Parameters

pFbxObject	Object to interface with FBX file format.
pStoreWhat	Attributes to store in FBX file.

Returns: true if successful.

Reimplemented from FBDeviceInstrument.

◆ InstrumentRecordFrame()

virtual void InstrumentRecordFrame	(	FBTime	pRecordTime,
		FBDeviceNotifyInfo &	pNotifyInfo
	)

overridevirtual

Record the data to the function curves for the instrument.

Parameters

pRecordTime	Time to record data at.
pNotifyInfo	Device notification information structure.

Reimplemented from FBDeviceInstrument.

◆ InstrumentWriteData()

virtual bool InstrumentWriteData ( FBEvaluateInfo * pEvaluateInfo )

overridevirtual

Write data to instrument's connectors.

In the evaluation engine callback, this will take the data in the instrument's temporary data holders and write it to the connectors.

Parameters

pEvaluateInfo Evaluation information structure.

Returns: true if successful.

Reimplemented from FBDeviceInstrument.

◆ LoadLensTables()

virtual bool LoadLensTables ( const char * pFilename )

virtual

Load the lens lookup tables.

Parameters

pFilename Name of *.klc file with lens values.

Returns: true if successful.

◆ ProcessLensData()

virtual void ProcessLensData ( FBDeviceCameraPacket * pDataPacket )

virtual

Process the lens table data for this data packet.

The actual operation for this will depend on a couple of properties for the instrument: LensTableLoaded, LensMode, as well as the invert values and the zoom multiplier.

Parameters

pDataPacket Camera data to process with the lens tables.

Member Data Documentation

◆ AspectRatio

FBPropertyDouble AspectRatio

Property(RW): Aspect ratio for calculating the Field of View X value.

Definition at line 275 of file fbtracker.h.

◆ InvertFocus

FBPropertyBool InvertFocus

Property(RW): Invert the focus encoder values?

Definition at line 270 of file fbtracker.h.

◆ InvertZoom

FBPropertyBool InvertZoom

Property(RW): Invert the zoom encoder values?

Definition at line 269 of file fbtracker.h.

◆ LensCalibrationFilename

FBPropertyString LensCalibrationFilename

Property(R-): Lens calibration filename.

Definition at line 260 of file fbtracker.h.

◆ LensFovInDegrees

FBPropertyBool LensFovInDegrees

Property(RW): Is FOV in table in degrees (false)

Definition at line 268 of file fbtracker.h.

◆ LensTableLoaded

FBPropertyBool LensTableLoaded

Property(R-): Has the lens table been loaded?

Definition at line 259 of file fbtracker.h.

◆ ManualCenterMode

FBPropertyBool ManualCenterMode

Property(RW): Manually adjust the optical center?

Definition at line 265 of file fbtracker.h.

◆ ManualCenterX

FBPropertyDouble ManualCenterX

Property(RW): Manual optical center X coordinate.

Definition at line 266 of file fbtracker.h.

◆ ManualCenterY

FBPropertyDouble ManualCenterY

Property(RW): Manual optical center Y coordinate.

Definition at line 267 of file fbtracker.h.

◆ ManualFovMode

FBPropertyBool ManualFovMode

Property(RW): In manual mode (not using encoder values to control zoom)?

Definition at line 262 of file fbtracker.h.

◆ ManualFovX

FBPropertyDouble ManualFovX

Property(RW): Manual field of view X value.

Definition at line 263 of file fbtracker.h.

◆ ManualFovY

FBPropertyDouble ManualFovY

Property(RW): Manual field of view Y value.

Definition at line 264 of file fbtracker.h.

◆ NodalMultiplier

FBPropertyDouble NodalMultiplier

Property(RW): Multiplier for nodal offset.

Definition at line 272 of file fbtracker.h.

◆ Packet

FBPropertyDeviceCameraPacket Packet

Property(RW): Used as a buffer to contain the current state of the instrument, use to put data in connector.

Definition at line 256 of file fbtracker.h.

◆ RecordPacket

FBPropertyDeviceCameraPacket RecordPacket

Property(RW): Used as a buffer to contain the record state of the instrument, use to create the keys when recording.

Definition at line 257 of file fbtracker.h.

◆ RotationOffset

FBPropertyVector3d RotationOffset

Property(RW): Rotation offset.

Definition at line 274 of file fbtracker.h.

◆ TranslationOffset

FBPropertyVector3d TranslationOffset

Property(RW): Translation offset;

Definition at line 273 of file fbtracker.h.

◆ ZoomMultiplier

FBPropertyDouble ZoomMultiplier

Property(RW): Filmback multiplier.

Definition at line 271 of file fbtracker.h.

The documentation for this class was generated from the following file:

fbtracker.h

Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FBDeviceCameraInstrument()

Member Function Documentation

◆ FbxRetrieve()

◆ FbxStore()

◆ InstrumentRecordFrame()

◆ InstrumentWriteData()

◆ LoadLensTables()

◆ ProcessLensData()

Member Data Documentation

◆ AspectRatio

◆ InvertFocus

◆ InvertZoom

◆ LensCalibrationFilename

◆ LensFovInDegrees

◆ LensTableLoaded

◆ ManualCenterMode

◆ ManualCenterX

◆ ManualCenterY

◆ ManualFovMode

◆ ManualFovX

◆ ManualFovY

◆ NodalMultiplier

◆ Packet

◆ RecordPacket

◆ RotationOffset

◆ TranslationOffset

◆ ZoomMultiplier
