FBPropertyBaseAnimatable< tType, pPT > Class Template Reference

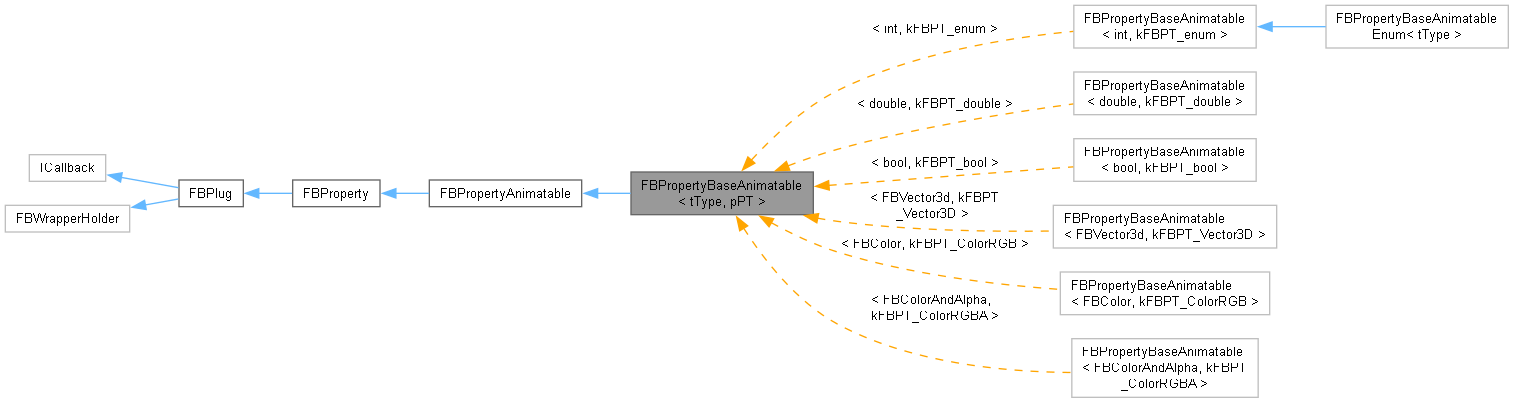

Inheritance diagram for FBPropertyBaseAnimatable< tType, pPT >:

Public Types
typedef tType	ValueType
	Property Value Type.

Public Member Functions
	FBPropertyBaseAnimatable ()
	Constructors.
	FBPropertyBaseAnimatable (const FBPropertyBaseAnimatable< tType, pPT > &pValue)
	~FBPropertyBaseAnimatable ()
	Destructor.
void	operator= (tType pValue)
	Overloaded = operator.
	operator tType () const
	Overloaded cast to tType operator.
virtual FBPropertyType	GetPropertyType () override
	Get the property's type.
Public Member Functions inherited from FBPropertyAnimatable
	FBPropertyAnimatable ()
	Constructor.
virtual	~FBPropertyAnimatable ()
	Destructor.
FBPropertyAnimatable *	Init (FBBox *pOwner, const char *pName, const char *pType, double *pInit)
	Initialization function (custom).
void	Destroy ()
	Destruction function, for internal connectors.
virtual KDataType *	GetDataType () override
	Get the property datatype pointer.
const char *	GetDataTypeName ()
	Get the property datatype name.
bool	IsFocused ()
	Is the property focused (keyable).
void	SetFocus (bool pState)
	Set the property's focus (keyable) state.
void	Key ()
	Key the property.
void	KeyAt (FBTime pTime)
	Key the property at time (t).
void	KeyRemoveAt (FBTime pTime)
	Remove the key at time (t).
int	GetDataSize () const
	Get the data size (number of values) for the connector.
virtual bool	IsAnimatable () override
	Certify that the property is animatable.
bool	IsAnimated ()
	Is the property animated.
void	SetAnimated (bool pState, bool pCheckLocked=false)
	Set the animation state of the property.
FBAnimationNode *	GetAnimationNode (FBTake *pTake=NULL)
	Get the animation node for the property.
FBBox *	GetBox ()
	Get the owner box.
virtual void	SetData (void *pData) override
	Set the value of the property, passing the type as an argument.
virtual void	GetData (void *pData, int pSize, FBEvaluateInfo *pEvalInfo=NULL) const override
	Get the value of a property.
void	SetCandidate (void *pData, int pSize, FBEvaluateInfo *pEvalInfo=NULL)
	Set the candidate.
void	SetGlobalCandidate (void *pData, int pSize, FBEvaluateInfo *pEvalInfo=NULL)
	Set the global candidate (useful for model TRS).
bool	AllowsMuting () const
	AllowsMuting.
bool	HasSomethingMuted () const
	HasSomethingMuted.
bool	IsMuted () const
	IsMuted.
bool	IsMemberMuted (int pIndex) const
	IsMemberMuted.
void	SetMuted (bool pMuted)
	SetMuted.
void	SetMemberMuted (int pIndex, bool pMuted)
	SetMemberMuted.
bool	SetColor (const FBColor &pColor, int pIndex)
	Set the color of the FCurves for the property.
FBColor	GetColor (int pIndex)
	Get the color of a particular FCurve of the property.
bool	ResetColor (int pIndex)
	Revert the FCurves to their default color.
bool	IsFocusedChild (int pIndex)
	Get the focus (keyable) state of child component.
bool	SetFocusChild (int pIndex, bool pState)
	Set the focus (keyable) state of child component.
Public Member Functions inherited from FBProperty
	FBProperty ()
	Constructor.
void	SetEnable (bool pValue)
	Set property enable status.
const char *	GetName ()
	Get the property's name.
void	SetName (const char *pName)
	Set the property's name.
virtual FBPropertyType	GetPropertyType ()
	Get the property's type.
const char *	GetPropertyTypeName ()
	Get the property's type name.
virtual KDataType *	GetDataType ()
	Get the property datatype pointer.
virtual void	SetData (void *pData)
	Set the value of the property, passing the type as an argument.
virtual void	GetData (void *pData, int pSize, FBEvaluateInfo *pEvalInfo=NULL) const
	Get the value of a property.
int	AsInt ()
	Get the property as an integer.
bool	SetInt (int pInt)
	Set the property from an integer.
virtual const char *	AsString (FBDataAsStringFlag pFlag=kFBDataAsStringUI)
	Get the property value as a string.
virtual bool	SetString (const char *pString)
	Set the property value from a string.
const char *	OriValueAsString ()
	Get the property original value (before any modification) as string.
bool	IsAnimated () const
	Get the property animated flag status.
bool	OriIsAnimated () const
	Get the property original animated flag status (before any modification)
virtual bool	IsList ()
	Verify if property is of this type.
virtual bool	IsAnimatable ()
bool	IsInternal () const
bool	IsUserProperty ()
bool	IsTextureConnectableProperty ()
bool	IsReferenceProperty ()
bool	IsMinClamp ()
	Indicate if minimum value clamping will be applied on user input value.
bool	IsMaxClamp ()
	Indicate if maximum value clamping will be applied on user input value.
bool	IsTemporaryProperty ()
	Indicate if a property was created on retrieve because it didn't exist.
bool	AcceptTemporaryProperty (const char *pEnumList[]=NULL, fbExternalGetSetHandler pGet=NULL, fbExternalGetSetHandler pSet=NULL)
	Accept a temporary property as a dynamic property.
bool	IsObjectList ()
	Indicate if is an instance of FBPropertyListObject.
virtual bool	IsReadOnly ()
	Is property read-only?
virtual const char *	EnumList (int pIndex)
	Return the string of an enum value.
FBStringList *	GetEnumStringList (bool pCreateIt=false)
	String list for enum properties.
void	NotifyEnumStringListChanged ()
	Notify system that the enum list was modified.
void	ModifyPropertyFlag (FBPropertyFlag pFlag, bool pValue)
	ModifyPropertyFlag.
FBPropertyFlag	GetPropertyFlags ()
	GetPropertyFlags.
bool	GetPropertyFlag (FBPropertyFlag pFlag)
	GetPropertyFlag.
void	SetMinMax (double pMin, double pMax, bool pForceMinClamp=false, bool pForceMaxClamp=false)
	SetMinMax.
void	SetMin (double pMin, bool pForceMinClamp=false)
	SetMin.
void	SetMax (double pMax, bool pForceMaxClamp=false)
	SetMax.
double	GetMin ()
	GetMin.
double	GetMax ()
	GetMax.
void *	GetParent ()
	Get the parent of the object.
int	GetSubMemberCount () const
	GetSubMemberCount.
bool	AllowsLocking () const
	AllowsLocking.
bool	HasSomethingLocked () const
	HasSomethingLocked.
bool	IsLocked () const
	IsLocked.
bool	IsMemberLocked (int pIndex) const
	IsMemberLocked.
void	SetLocked (bool pLocked)
	SetLocked.
void	SetMemberLocked (int pIndex, bool pLocked)
	SetMemberLocked.
FBProperty *	GetReferencedProperty ()
	Get the referenced property, in the case of this property is a reference property (see the IsReferenceProperty() method).
Public Member Functions inherited from FBWrapperHolder
FBScriptWrapper *	GetWrapper ()
	Return the wrapper interface of this FBObject.
void	AddWrapper (FBScriptWrapper *)
void	RemoveWrapper (FBScriptWrapper *)

Additional Inherited Members
Protected Member Functions inherited from FBPlug
bool	IsSDKComponent ()
	Return whether or not item is an SDK component.
bool	ConnectSrc (FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection.
bool	ConnectDst (FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection.
bool	ConnectSrcAt (int pDst_SrcIndex, FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection.
bool	ConnectDstAt (int pSrc_DstIndex, FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection.
bool	DisconnectDst (FBPlug *pDst)
	Remove a destination connection.
bool	DisconnectSrc (FBPlug *pSrc)
	Remove a source connection.
void	DisconnectAllSrc ()
	Remove all source connections.
void	DisconnectAllDst ()
	Remove all destination connections.
bool	DisconnectDstAt (int pIndex)
	Remove a destination connection at a specified index.
bool	DisconnectSrcAt (int pIndex)
	Remove a source connection at a specified index.
bool	ReplaceDstAt (int pIndex, FBPlug *pDst)
	Replace a destination connection at a specified index.
bool	ReplaceSrcAt (int pIndex, FBPlug *pSrc)
	Replace a source connection at a specified index.
bool	SwapSrc (int pIndexA, int pIndexB)
	Swap source connection at index A with source connection at index B.
bool	MoveSrcAt (int pIndex, int pAtIndex)
	Move source connection at pIndex to pAtIndex.
bool	MoveSrcAt (FBPlug *pSrc, FBPlug *pAtSrc)
	Move source connection pSrc to the position of pAtSrc.
int	GetSrcCount ()
	Get source connection count.
FBPlug *	GetSrc (int pIndex)
	Get a source connection's plug at specified index.
FBConnectionType	GetSrcType (int pIndex)
	Get a source connection's type at specified index.
int	GetDstCount ()
	Get destination connection count.
FBPlug *	GetDst (int pIndex)
	Get a destination connection's plug at specified index.
FBConnectionType	GetDstType (int pIndex)
	Get a destination connection's type at specified index.
bool	BeginChange ()
	Begins a change on multiple plugs.
void	EndChange ()
	Ends a change on multiple plugs.
void	SetSelfModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's self modification flag.
bool	GetSelfModified (FBPlugModificationFlag pFlag)
	Tell if the plug's self has changed.
void	SetContentModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's owned property/object's modification flag.
bool	GetContentModified (FBPlugModificationFlag pFlag)
	Tell if the plug's content has changed.
int	GetPlugConnectionModifiedList (FBPlugList &pPlugList, FBPlugModificationFlag pConnectionModificatonFlag, bool pAddRemove)
	Get plug's modified src/dst property/object connection added/removed List.
bool	RevertModification (FBPlugModificationFlag pFlag=kFBAllModifiedMask)
	Revert the plug's modification to original status.
void	SetStatusFlag (FBPlugStatusFlag pStatus, bool pValue)
	Set the plug's status flag.
bool	GetStatusFlag (FBPlugStatusFlag pStatus) const
	Tell if the plug's status has changed.
FBPlug *	GetOwner ()
	Get the owner of this plug.
FBPlug *	GetOwned (int pIndex)
	Get the owned plug at specified index.
int	GetOwnedCount ()
	Get the owned plug count.
virtual const char *	ClassName ()
	internal System vars.
virtual bool	Is (int pTypeId)
	Is( int pTypeId )
virtual int	GetTypeId ()
	GetTypeId( int pTypeId )
virtual bool	PlugDataNotify (FBConnectionAction pAction, FBPlug *pThis, void *pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugDataNotify when overloaded is equivalent of FBSystem.OnConnectionDataNotify but in the context of the derived object only.
virtual bool	PlugStateNotify (FBConnectionAction pAction, FBPlug *pThis, void *pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugStateNotify when overloaded is equivalent of FBSystem.OnConnectionStateNotify but in the context of the derived object only.
virtual bool	PlugNotify (FBConnectionAction pAction, FBPlug *pThis, int pIndex, FBPlug *pPlug=NULL, FBConnectionType pConnectionType=kFBConnectionTypeNone, FBPlug *pNewPlug=NULL)
	PlugNotify when overloaded is equivalent of FBSystem.OnConnectionNotify but in the context of the derived object only.
virtual void	FBDelete ()
	Actual destructor for a FBPlug.
Static Protected Member Functions inherited from FBPlug
static int	GetInternalClassId ()
	Internal class Id.
Protected Attributes inherited from FBProperty
FBString	mName
void *	mParent
Protected Attributes inherited from FBPlug
bool	mAllocated
	Contain the Allocation State of the Component.
HIObject	mObject
	Handle on the Plug.
bool	mSDKComponent
	bool Plug is an SDK component.
Static Protected Attributes inherited from FBPlug
static const char *	ClassGroupName
	ClassGroupName of the object.
static int	TypeInfo
	TypeInfo.
static int	mGlobalTypeInfo
	Represente the Type Index.

Detailed Description

template<class tType, FBPropertyType pPT>
class FBPropertyBaseAnimatable< tType, pPT >

Definition at line 1682 of file fbproperties.h.

Member Typedef Documentation

ValueType

typedef tType ValueType

Property Value Type.

Definition at line 1687 of file fbproperties.h.

Constructor & Destructor Documentation

FBPropertyBaseAnimatable() [1/2]

FBPropertyBaseAnimatable ( )

inline

Constructors.

Definition at line 1690 of file fbproperties.h.

FBPropertyBaseAnimatable() [2/2]

FBPropertyBaseAnimatable ( const FBPropertyBaseAnimatable< tType, pPT > &  pValue )

inline

Definition at line 1691 of file fbproperties.h.

~FBPropertyBaseAnimatable()

~FBPropertyBaseAnimatable ( )

inline

Destructor.

Definition at line 1697 of file fbproperties.h.

Member Function Documentation

GetPropertyType()

virtual FBPropertyType GetPropertyType ( )

inlineoverridevirtual

Get the property's type.

Returns

The property's type.

Reimplemented from FBProperty.

Definition at line 1722 of file fbproperties.h.

operator tType()

operator tType ( ) const

inline

Overloaded cast to tType operator.

Returns

tType cast of current object.

Definition at line 1712 of file fbproperties.h.

operator=()

void operator= ( tType  pValue )

inline

Overloaded = operator.

Parameters

pValue

Value to set for property.

Definition at line 1703 of file fbproperties.h.

References FBPropertyAnimatable::SetData().

---

The documentation for this class was generated from the following file:

• fbproperties.h
