Context Sensitive Ribbons

The Context Sensitive Ribbons can be utilised depending on the currently selected item. The following are the Context Sensitive Ribbon tabs:

• Inflow
• Flow Path
• Stormwater Control
• Connections
• Junctions
• Land uses
• Soil types

Inflow

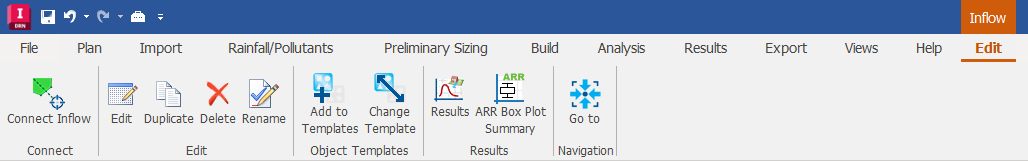

The Inflow tab is activated when an Inflow is selected on the Plan.

Edit

Edit – Edit selected object details.

Duplicate – Duplicate selected object.

Delete – Delete selected object.

Rename – Rename selected object.

Templates

Add to Templates – Add selected object to Object Templates.

Change Template – Edit Templates list.

Results

Results – View the results of the individual items (if available).

ARR Box Plot Summary – Displays the ARR Box Plot Summary for the selected item (if available).

Navigation

Go to – Go to the selected object in the Plan.

Flow Path

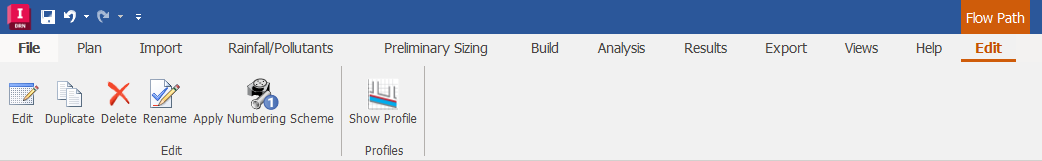

The Flow Path tab is activated when a Flow Path is selected on the Plan.

Edit

Edit – Edit the selected Flow Path.

Duplicate – Duplicate the selected Flow Path.

Delete – Delete the selected Flow Path.

Rename – Rename the selected Flow Path.

Apply Dendritic Numbering – Applies the Numbering Scheme on the flow path.

Profiles

Show Profile – Show the profile of the selected Flow Path.

Stormwater Control

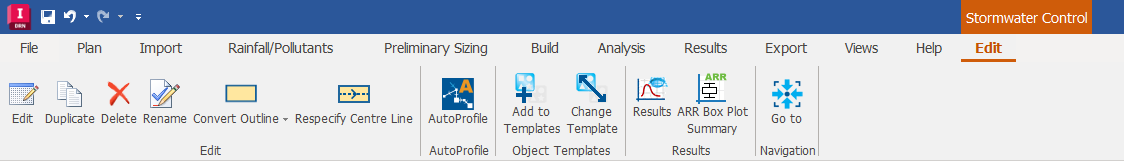

The Stormwater Control (SWC) tab is activated when a SWC is selected on the Plan.

Edit

Edit – Edit selected object details.

Duplicate – Duplicate selected object.

Delete – Delete selected object.

Rename – Rename selected object.

Convert Outline – Convert the outline to another shape for the selected object.

Respecify Centre line – Respecify the centre line for the selected object.

AutoProfile

AutoProfile – Create AutoProfile flow paths to the selected object.

Templates

Add to Templates – Add selected object to Object Templates.

Change Template – Edit Templates list.

Results

Results – View the results of the individual items (if available).

ARR Box Plot Summary – Displays the ARR Box Plot Summary for the selected item (if available).

Navigation

Go to – Go to the selected object in the Plan.

Connections

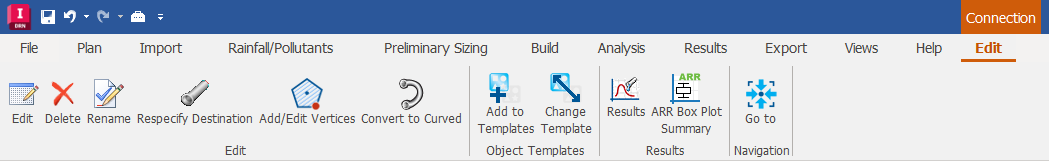

The Connections tab is activated when a connection is selected on the Plan.

Edit

Edit – Edit selected object details.

Delete – Delete selected object.

Rename – Rename selected object.

Respecify Destination – Respecify the destination for the selected object.

Add/Edit Vertices – Add or edit vertices in the selected object.

Convert to Curved/Straight – Convert a straight connection to curved connection and vice versa.

Templates

Add to Templates – Add selected object to Object Templates.

Change Template – Edit Templates list.

Results

Results – View the results of the individual items (if available).

ARR Box Plot Summary – Displays the ARR Box Plot Summary for the selected item (if available).

Navigation

Go to – Go to the selected object in the Plan.

Junctions

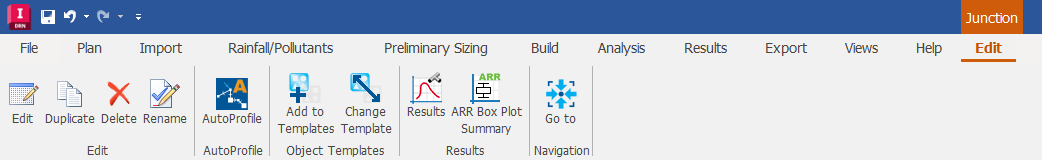

The Junction tab is activated when a junction is selected on the Plan.

Edit

Edit – Edit selected object details.

Duplicate – Duplicate selected object.

Delete – Delete selected object.

Rename – Rename selected object.

AutoProfile

AutoProfile – Create AutoProfile flow paths to the selected object.

Templates

Add to Templates – Add selected object to Object Templates.

Change Template – Edit Templates list.

Results

Results – View the results of the individual items (if available).

ARR Box Plot Summary – Displays the ARR Box Plot Summary for the selected item (if available).

Navigation

Go to – Go to the selected object in the Plan.

Land uses

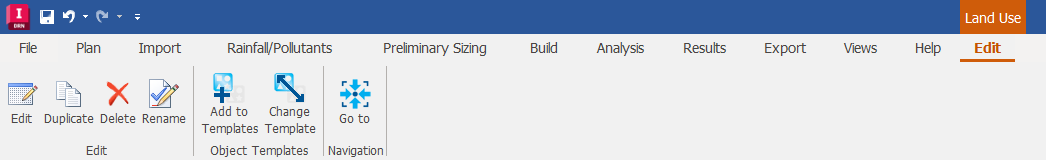

The Land Use tab is activated when a Land Use is selected on the Plan.

Edit

Edit – Edit selected object details.

Duplicate – Duplicate selected object.

Delete – Delete selected object.

Rename – Rename selected object.

Templates

Add to Templates – Add selected object to Object Templates.

Change Template – Edit Templates list.

Navigation

Go to – Go to the selected object in the Plan.

Soil types

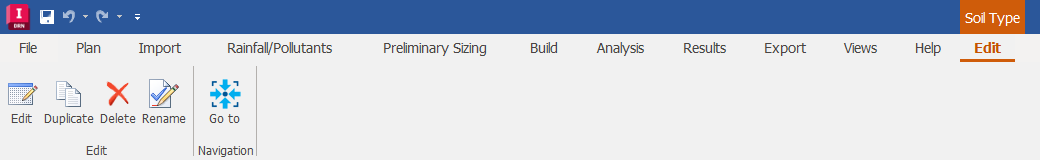

The Soil Type tab is activated when a Soil Type is selected on the Plan.

Edit

Edit – Edit selected object details.

Duplicate – Duplicate selected object.

Delete – Delete selected object.

Rename – Rename selected object.

Navigation

Go to – Go to the selected object in the Plan.
