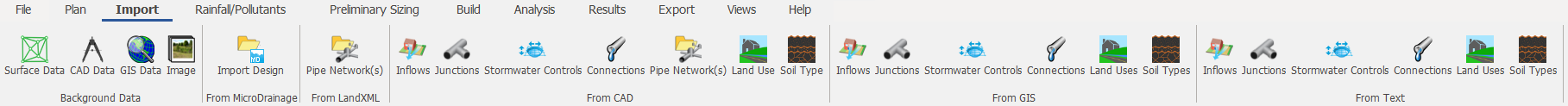

Import Ribbon

The Import ribbon allows you to load information from a file as either background data or actual design information.

Note: For a Foul phase importing Stormwater Control is not available.

Background Data

Surface Data – Allows you to import and specify terrain information.

CAD Data – Allows you to import CAD Data as the background data.

GIS Data – Allows you to import GIS Data as the background data.

Images – Allows you to import background images.

From MicroDrainage

Import Design  – Allows you to import a MicroDrainage file.

From LandXML

Import Pipe Network – Allows you to import a pipe network from a LandXML file.

From CAD

Inflows – Allows you to import Inflows using the CAD Import wizard.

Junctions – Allows you to import Junctions using the CAD Import wizard.

Stormwater Controls – Allows you to import StormWater Controls using the CAD Import wizard.

Connections – Allows you to import Connections using the CAD Import wizard.

Pipe Networks – Allows you to import Pipe Networks using the CAD Import wizard.

Land Uses – Allows you to import Land Uses using the CAD Import wizard.

Soil Types – Allows you to import Soil Types using the CAD Import wizard.

From GIS

Inflows – Allows you to import Inflows using the GIS Import wizard.

Junctions – Allows you to import Junctions using the GIS Import wizard.

Stormwater Controls – Allows you to import Stormwater Controls using the GIS Import wizard.

Connections – Allows you to import Connections using the GIS Import wizard.

Land Uses – Allows you to import Land Uses using the GIS Import wizard.

Soil Types – Allows you to import Soil Types using the GIS Import wizard.

From Text

Inflows – Allows you to import Inflows using the CSV Import wizard.

Junctions – Allows you to import Junctions using the CSV Import wizard.

Stormwater Controls – Allows you to import Stormwater Controls using the CSV Import wizard.

Connections – Allows you to import Connections using the CSV Import wizard.

Land Uses – Allows you to import Land Uses using the CSV Import wizard.

Soil Types – Allows you to import Soil Types using the CSV Import wizard.
