カスタム アセット タイプを編集する

export = "#scatter_brush"
extension = "scatter_brush"
types = {
    scatter_brush = {
        ...
    }

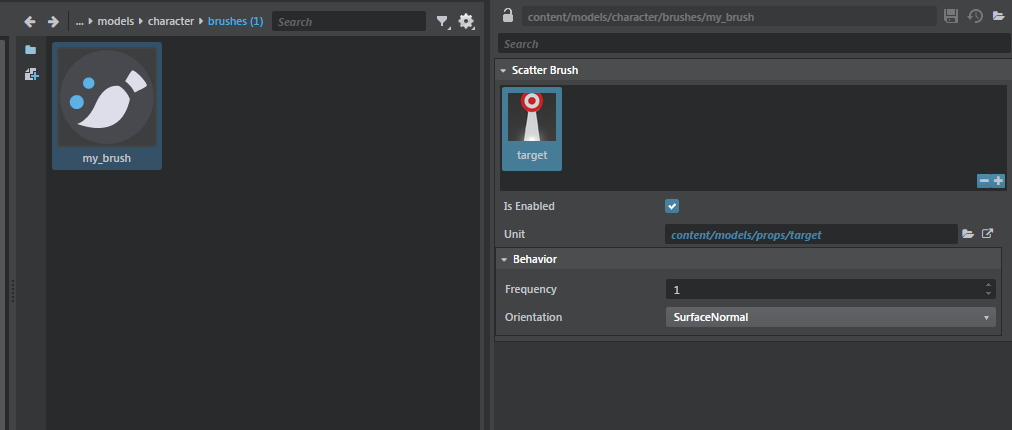

// from scatter_brush.type

export = "#scatter_brush"
extension = "scatter_brush"
types = {
    scatter_brush = {
        ...
        editor = {
            label = "Scatter Brush"
            // This specifies that .scatter_brush files should be editable using the Property Editor:
            generic_selector = true
            ...
        }
    }
    ...

// from scatter_brush.type

export = "#scatter_brush"
extension = "scatter_brush"
types = {
    scatter_brush = {
        type = ":struct"
        fields = {
            components = {
                key = ":guid"
                type = ":dict"
                value = "#scatter_component"
                editor = {
                    control = "ResourceCarousel"
                    carouselResourceProperty = "unit"
                }
            }
        }
        editor = {
            label = "Scatter Brush"
            // This specifies that scatter brush should have a creation menu item:
            generic_creator = true

            // This specifies that .scatter_brush files should be editable using the Property Editor:
            generic_selector = true
            version = "0.1.0"
        }
    }
    ...

// From capture_frames.stingray_plugin
templates = [{
        type = "asset"
        name = "Capture Settings"
        default_name = "capture_settings"
        extension = "capture_settings"
        create = [
            "create-frame-capture \"$name.capture_settings\" \"$project/$output_dir\""
        ]
    }]

// Exerpt from capture_settings.type:
 editor = {
            label = "Capture Settings"
            generic_creator = false // No generic creator
            generic_selector = true // but do use Property Editor
            version = "1.0.0"
        ...
 }

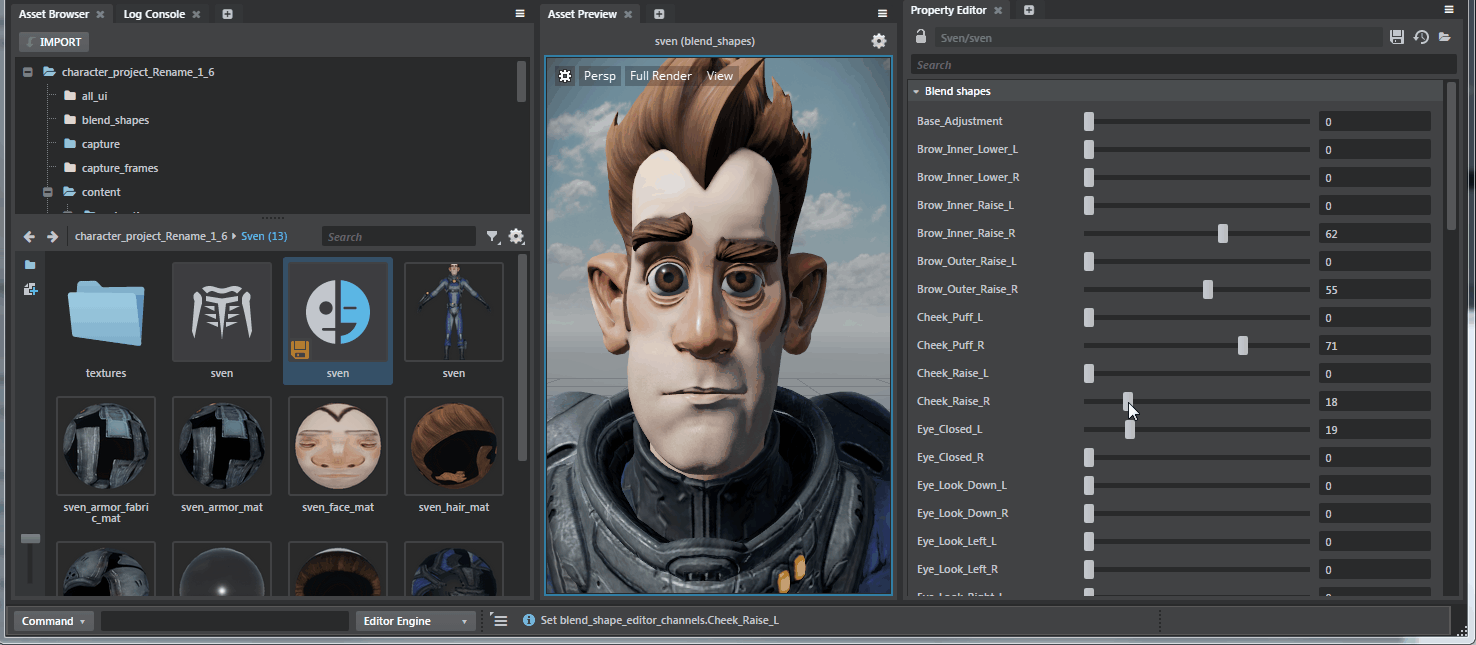

// From preview-blend-shapes.js

setup: function (config, asset, viewportName) {
    objectEditingService.on("DataObjectsConsensusChanged", function (args) {
            // Each time a Custom asset changes, a change descriptor notification is sent.
            var changeDesc = args[0];
            if (this._previewedAsset !== changeDesc.AssetsModified[0] || changeDesc.Type !== 'ValueChanged') {
                return;
            }

            var path = changeDesc.PropertyPath;
            var separatorIndex = path.lastIndexOf('.');
            var channel = path;
            if (separatorIndex !== -1) {
                channel = path.substr(separatorIndex + 1);
            }

            previewUtils.sendToViewport(this._viewportName, 'set_blend_shape_channel_weight_percentage', luaUtils.toSyntax(channel), luaUtils.toSyntax(changeDesc.Value));
        }));

{
    Type: string,                 // One of: ValueAdded, ValueRemoved, or ValueChanged
    PropertyPath: string,         // JSON property path that was modified in the custom asset
    Value: object,                // The value that was set or added
    AssetsModified: Array<string> // The list of assets that were modified (in case of consensus editing)
}

// From preview-blend-shapes.js

// Get the managed (in memory representation) of a particular blend shape.
assetService.getManagedAsset(assetName + ".blend_shapes").then(function (dataObject){
    if (dataObject) {
        // Fetches the Json representation of this asset (extract Json from the DataObject).
        return dataObject.invokeMethod('ToJson').then(function (blendShapeJsonData) {
            ...
        })
    } else {
        console.error("Cannot find data for: ", assetName + ".blend_shapes");
    }
});

// From blend_shape.type

export = "#blend_shapes"
extension = "blend_shapes"
types = {
    blend_shapes = {
        type = ":struct"
        fields = {
            blend_shape_meshes = {
                type = ":value"  // :value means an arbitrary JSON value. The type system won't try to reason about it (or to validate it).
            }
            blend_shape_editor_channels = {
                type = ":value"
            }
        }
        editor = {
            label = "Blend shapes"
            generic_creator = false
            generic_selector = true
            version = "0.1.0"
            control = "BlendShapes"  // Use a custom blend-shape control in the Property Editor, defined in editor/core/components/properties/property-blend-shape.js.
        }
    }
}

objectEditingService.on("DataObjectsConsensusChanged", function (args) {
    if (this.SelectedToolName !== "scatter" ||
        !this.SelectedScatterBrush) {
        return;
    }

    var changeDesc = args[0];
    if (changeDesc.AssetsModified.indexOf(this.SelectedScatterBrush) === -1) {
        return;
    }

    this.invoke('UpdateLuaScatterBrushComponents');
}.bind(this));

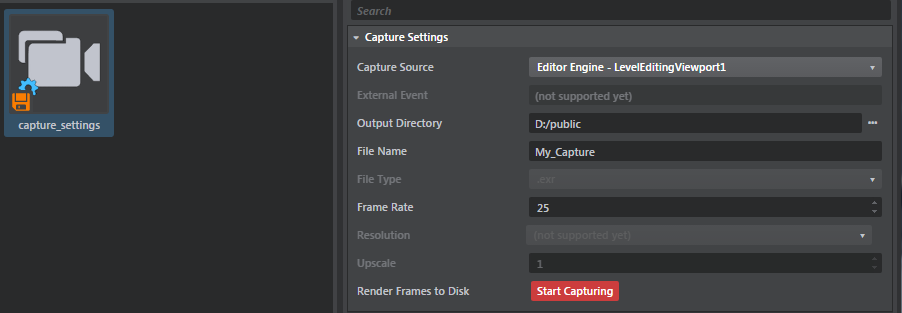

// From capture_settings.type
export = "#capture_settings"
extension = "capture_settings"
types = {
    capture_settings = {
        type = ":struct"
        fields = {
            ...
            start_capture = {
                type = ":bool"
                default = true
                editor = {
                    // Specification of the Action button that kicks in the Capture process.
                    control = "Action"
                    label = "Render Frames to Disk"
                    text = "Start Capturing"
                    color = "#CC3D3D"
                    trigger = {
                        type = "js"
                        module = "capture_frames/capture_frames_actions"
                        function_name = "handleCapture"
                    }
                }
            }
        }
        editor = {
            label = "Capture Settings"
            generic_creator = false
            generic_selector = true
            version = "1.0.0"
            init = {
                type = "js"
                module = "capture_frames/capture_frames_actions"
                function_name = "startCaptureSettingsEditing"
            }
            cleanup = {
                type = "js"
                module = "capture_frames/capture_frames_actions"
                function_name = "endCaptureSettingsEditing"
            }
        }
    }
}
