Pivoted Window

The Pivoted window has one sash only, hinged midway through the side of the sash. It can swing open either vertically or horizontally.

Create panel > (Geometry) > Windows > Object Type rollout > Pivoted button
Default menu: Create menu > AEC Objects > Pivoted Window
Alt menu: Objects menu > Architectural Parts > Pivoted Window

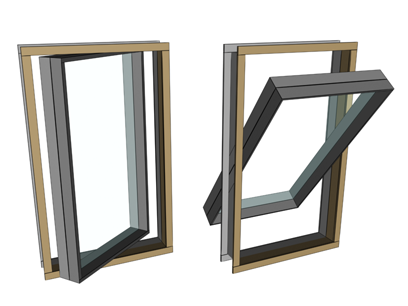

Pivoted windows

For using materials with doors, see Doors and Materials.

Interface

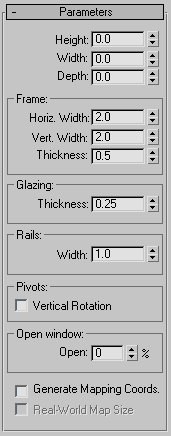

Parameters rollout

The topic for each kind of Window describes its unique controls and behavior. Most Window parameters are common to all kinds of Windows; see Windows.

Rails group

Width: Sets the width of the rails in the sash.

Pivots group

Vertical Rotation: Switches the pivot axis from horizontal to vertical.

Open Window group

Open: Specifies the percent that the window is open. This control is animatable.
