Select and Link

Use the Select and Link button to define the hierarchical relationship between two objects by linking them as child and parent.

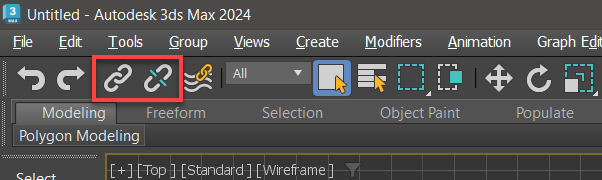

Select and Link and Unlink buttons on the toolbar.

  • Main Toolbar > Select And Link

You link from the currently selected object (child) to any other object (parent).

You can link an object to a closed group. When you do, the object becomes a child of the group parent rather than any member of the group. The entire group flashes to show that you've linked to the group.

A child inherits the transformations (move, rotate, scale) applied to the parent, but the child's transformations have no effect on the parent. If you want the child not to inherit the transforms, use the Link Inheritance (Selected) Utility or use the controls found in Link Info in the Hierarchy panel.

You can also create hierarchical linkages using Schematic View. Use the Connect button on the Schematic View toolbar to create hierarchical linkages between nodes.

Procedures

To link two objects:

  1. Click Select And Link.
  2. Drag a line from an object (the child) to any other object (the parent).
    Note: You do not need to select the child object first.
Parent topic: Linking and Unlinking Objects
