2.5D Milling example part 5: Simulating the toolpaths

Now you have created the features, FeatureCAM automatically:

• Selects the most appropriate tools and operations;
• Recommends machining strategies;
• Calculates speeds and feeds;
• Generates toolpaths and creates the NC code.

To view the simulated toolpath:

1. Click Home tab > Simulation panel > Sim Mode > 3D to change the simulation type.
2. Click Play on the Simulation toolbar to start the simulation.

   If the Ordering dialog is displayed, click OK to close it.

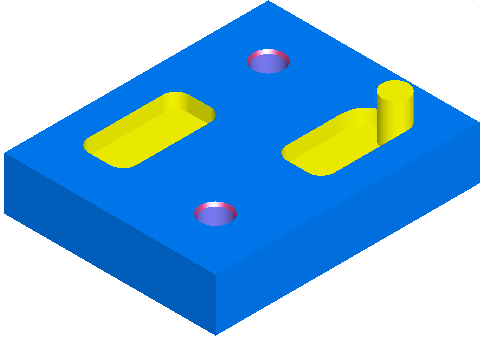

   This displays a solid 3D rendering of the cutting process.



   Note: If all tools are displayed in gray in the simulation, enable the File > Options > Simulation page > Tool Colors option to see which features are machined by each tool.
