3D Milling example part 4: Creating the bottle surface

  1. Select the Surfaces step from the Steps panel.
  2. In the Surface wizard, select Surface of Revolution, and click Next.
  3. On the Surface of Revolution page:
    1. Enter a Start Angle of 0.
    2. Enter an End Angle of 180.
    3. FeatureCAM automatically selects your chained curve in the Curve field.

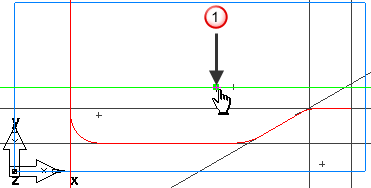

    4. In the Axis field, click the Pick line button, and select the horizontal line around point .

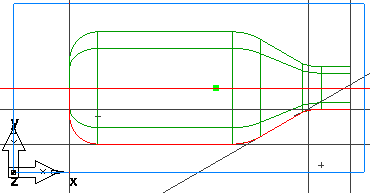

      Click Finish.
