This section describes how to convert the information stored in the Process Table into an NC Program.
This section uses the demonstration post processor (swiss-demo.pst) supplied with PartMaker. This is a generic post processor that is provided for demonstration purposes only. Therefore, the contents of the NC Program file will not reflect the code required for a specific machine and you will not be able to save, or run, the NC Program files that PartMaker has created.
- Select Job Optimizer > Post Config File to display the Open Post Configuration File dialog. Select the swiss-demo.pst file in the PM-Swiss folder of your PartMaker installation and click Open.
- Click the
Generate NC Code button on the Main toolbar, then click

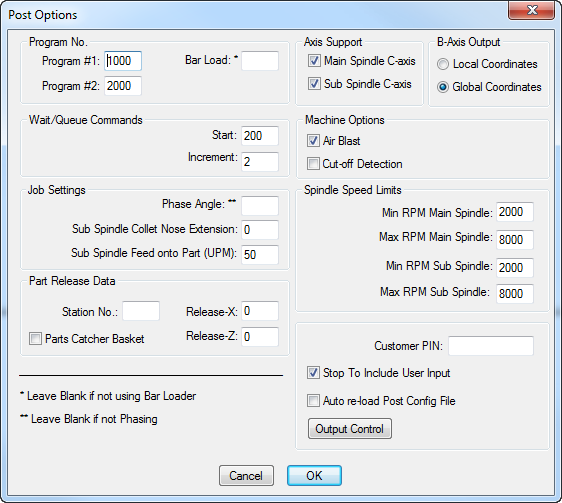

OK on the
Post Options dialog to use the default options for postprocessing.
If PartMaker displays a warning that no ejection is programmed, click Yes to continue.
- On the
Name NC Program File As dialog, enter a name for the file where
PartMaker saves the NC Program code, then click
Save.
In this case, because you are using a demonstration post processor, PartMaker will not save the NC Program files.

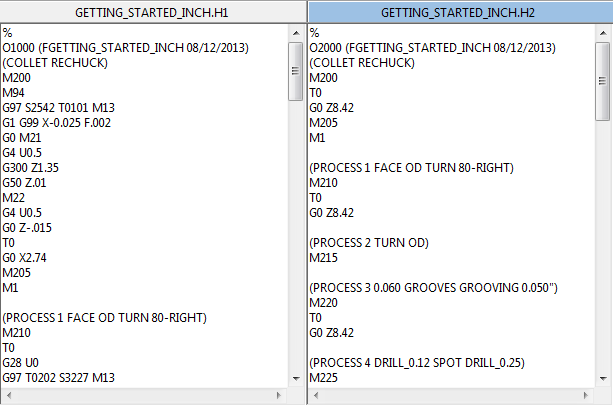

PartMaker creates demonstration NC program code:
