Timeline Improvements (What's New in 2022.1)

Select the RGB and matte channels to use, display in OutMatte in the Player, and easily find the batch group that rendered a clip.

Indicates a feature suggested and voted up by users on the Flame Feedback portal.

Select a Segment RGB and Matte Channels

You can now select the RGB and Matte channels of a Multi-Channel clip from a Timeline segment. Use the for the RGB and Matte channels pulldown menus, accessed by selecting the clip thumbnail in the Timeline FX ribbon.

1. To select the RGB and Matte channels to use:

2. Select the segment.

3. In the Timeline FX ribbon, select the segment thumbnail.



4. Select the RGB and Matte channels.

RGB Selection menu options:

• Channel name: Displays this channel in the Player.
• Flat: Flattens the channels.

Matte Selection menu options:

• Matte layer name: Displays this matte in the Player.
• Follow RGB: Automatically displays the matte associated to the currently selected RGB channel. This is the default option.
• No Matte: Disables the matte.

Note: Similar to settings from Format Options and Pre-Processing settings, the Front and Matte selections are applied to all instances of the selected segment. To isolate the modification to the current segment only, select Context Menu Duplicate Source before editing the channels.

Display the OutMatte in the Player

To display the OutMatte of the current frame in the Player:

1. Do one of the following:

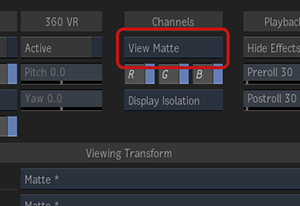

   • In the Player's Viewing Settings panel (Alt+1), select Channels Show RGB Show Matte.



   • Use the Toggle RGB/Matte Channels keyboard shortcut: Shift+M

Additional Matte Workflow Improvements

Toggle Matte in one channel multi-channel clip: Multi-channel clips can be created with only a single RGBA channel. You can toggle on/off the alpha of this RGBA channel.

Currently selected channels in BFX: The selected RGB and Matte channels of a multi-channel clip in Timeline are now the ones used when you open the segment in Batch FX or a module.

Find a Segment's Batch Group

You can now easily find and open the Batch Group used to render a clip.

To display a clip's Batch Group:

1. Do one of the following:

   • Right-click the segment from the context menu select Find Batch Group.

   • Use the keyboard shortcut Space+B (Flame/Lustre profiles) or Ctrl+Shift+B (Smoke Classic/Smoke FCP profiles).

     You can also map it in Tangent Mapper.

   • Double-click the segment. In this case it must not have any Timeline FX or Clip History.

How it works: The search tries to find a match based on the segment name and an internal ID. The search looks for a match in the Desktop, and then in the Libraries—including closed ones. If more than one match is found, you are asked to pick one. Once the Batch Group is found, the Render node with the same name as the segment Shot Name is framed in the Batch Schematic view.
