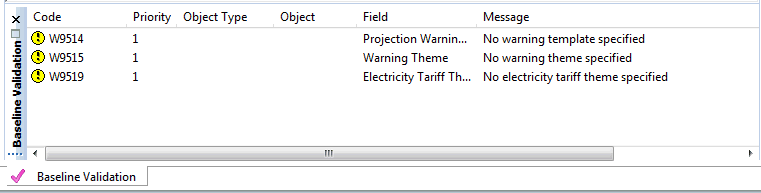

The Baseline Validation window displays error and warning messages for the currently displayed Baseline when the Baseline is validated.
Validation takes place when:
- baseline properties are saved by clicking the Commit baseline button or ticking the Enable this baseline for use in projection runs check box on the Baseline Management Window.
- the Validate baseline button is pressed on the Baseline Management Window.
The window is displayed at the bottom of the Baseline Page beneath the Map view. To display the page:
- Click the Baseline Validation tab, or
- Select Baseline Validation from the Window menu (It is only possible to view the validation window once validation has been carried out), or
- Click the
Baseline Validation button (
) of the
Window toolbar.
Right click in the window to display a context menu allowing the following operations to be carried out:
- Print - print out validation messages
- Copy to clipboard - copy messages to clipboard for pasting in another application
- Go to Property Page - right click the validation message and select this option to open the page to which error message applies. Alternatively, double-click the error message to display the baseline object page.
For each error or warning, the validation window displays the following information:
| Symbol |
 - the message is an error message. The error must be resolved before the baseline can be used to carry out simulations.
|
| Code | The error or warning message number |
| Priority | Priority level (always set to 1) |
| Object Type | The type of object in the Baseline property sheet |
| Object | The name of the object in the Baseline property sheet |
| Field | The field where the value is invalid, missing or outside recommended ranges. |
| Message | A description of the problem. |
- the message is a warning message. This message is for information.
List of Validation Messages
| Message Number | Validation Message | Baseline Page | Cause | Priority |
|---|---|---|---|---|
|
E9000 |
A value must be specified for this field |
Fields |
A required field is null. A value must be entered in the field. |
|
| E9001 |
Value too small. Minimum value is <minimum value>, or Value too large. Maximum value is <maximum value> |
Fields |
A value is outside of minimum or maximum set in metadata. Enter a valid value in this field |
|
| E9510 | Default Sim is not set | Default Model | A simulation has not been selected in the Default Simulation selection box. |
|
| E9511 | Cannot find Default Simulation | Default Model | The simulation in the Default Simulation selection box page cannot be found in the database |
|
| E9512 | Simulation did not complete successfully | Default Model | The simulation selected in the Default Simulation selection box did not run successfully |
|
| E9513 | Only normal runs are allowed for the Default Simulation | Default Model | The simulation selected in the Default Simulation selection box was not of Run Type Normal |
|
| E9514 | Run every cannot be zero | Default Model | The Run every parameter in the Run Schedule grid is set to zero |
|
| E9515 | Duration cannot be zero | Default Model | The Duration parameter in the Run Schedule grid is set to zero |
|
| E9516 | Tidy up after cannot be zero | Default Model | The Tidy up after parameter in the Run Schedule grid is set to zero |
|
| E9517 | Archive after cannot be zero | Default Model | The Archive after parameter in the Run Schedule grid page is set to zero |
|
| E9518 | Delete after cannot be zero | Default Model | The Delete after parameter in the Run Schedule grid is set to zero |
|
| E9519 | Demand categories are different from Default Simulation | Switch Options | A specified Demand Diagram contains different demand categories to the Demand Diagram used by the default simulation specified in the Default Model page. |
|
| E9520 | Demand scaling areas are different from Default Simulation | Switch Options | A specified Demand Scaling contains different demand scaling areas to the Demand Scaling used by the default simulation specified in the Default Model page. |
|
| E9521 | Energy factor regimes are different from Default Simulation | Switch Options | A specified Energy CO2 Factor contains different CO2 factor regimes to the Energy CO2 Factor used by the default simulation specified in the Default Model Page. |
|
| E9522 |
Electricity tariff labels are different from Default Simulation |
Switch Options |
A specified Electricity tariff contains different tariff labels to the Electricity Tariff used by the default simulation specified in the Default Model Page. |
|
|
E9525 |
Validation failed for control n (where n is the name of the control) | Switch Options |
The object mentioned in the error message has not passed validation. It is recommended to validate the object on its own to investigate the exact reason for the validation failure. |
|
|
E9526 |
Validation failed for demand diagram n (where n is the name of the demand diagram) |
Switch Options |
The object mentioned in the error message has not passed validation. It is recommended to validate the object on its own to investigate the exact reason for the validation failure. |
|
|
E9527 |
Validation failed for demand scaling n (where n is the name of the demand scaling) |
Switch Options |
The object mentioned in the error message has not passed validation. It is recommended to validate the object on its own to investigate the exact reason for the validation failure. |
|
|
E9528 |
Validation failed for electricity tariff n (where n is the name of the electricity tariff) |
Switch Options |
The object mentioned in the error message has not passed validation. It is recommended to validate the object on its own to investigate the exact reason for the validation failure. |
|
|
E9529 |
Validation failed for UPC scenario n (where n is the name of the scenario) |
Switch Options |
The object mentioned in the error message has not passed validation. It is recommended to validate the object on its own to investigate the exact reason for the validation failure. |
|
| E9530 | No live data feed specified | Fields | The Updatable from live data option is checked for a field, but a Live data feed has not been specified. |
|
| E9531 | Default is less than minimum | Fields | The value specified in the Default field is less than the value specified in the Min field |
|
| E9532 | Default is greater than maximum | Fields | The value specified in the Default field is less than the value specified in the Min field. |
|
| E9533 | Minimum is greater than maximum | Fields | The value specified in the Min field is greater than the value specified in the Max field. |
|
| E9534 | Unit in live data feed is not valid for this field | Fields | The unit of measurement in the live data feed is not valid for this field |
|
|
E9536 |
Live data feed not found in live data configuration |
Live Data | A live data feed specified in the Live data field 1 field or the Live data field 2 fields of the Fields window does not exist in the Live Data Configuration object that is associated to the baseline (in the Live Data Options tab). |
|
|
E9537 |
Invalid Export Folder |
n/a (Results Export Window) |
The folder selected in the Export Folder box of the Results Export window is invalid. |
|
|
E9538 |
No Export Style selected |
n/a (Results Export Window) |
No export style has been selected in the Current Export Style dropdown list of the Results Export window. |
|
|
E9539 |
Selection is missing for export |
n/a (Results Export Window) |
The All Objects option is disabled on the Results Export window and no network object selection has been specified in the Selection for Export dropdown list. |
|
| E9544 | Both UPC Object and UPC Scripts | Fields | A UPC Script has been defined in the Fields tab for a valve or pump station object and the Default Simulation selected in the Default Model tab uses a UPC Scenario and/or a UPC Scenario is specified in the Switch Options tab. Simulations cannot be run using both UPC Scenario and UPC Scripts. |
|
| E9545 | Override is less than minimum | Fields |
Mode of operation is set to Use override and the Override value is less than the Min value specified for the field. |
|
| E9546 | Override is greater than maximum | Fields | Mode of operation is set to Use override and the Override value is greater than the Max value specified for the field. |
|
| W9510 | No switch objects specified | Switch Options | A Switch Controller and/or switch script have been specified, but there are no Switch Objects selected. |
|
| W9511 | No weather feed specified | Switch Options | A weather feed has not been specified on the Weather page of the selected Switch Controller. |
|
| W9512 | No weather forecast location specified | Switch Options | A location has not been specified on the Weather page of the selected Switch Controller. |
|
| W9513 | No switch script specified | Switch Options | Switch objects and/or a Switch controller have been selected, but there is no Switch Script. |
|
| W9514 | No warning template specified | Display Options | A Warning Template has not been selected. |
|
| W9515 | No warning theme specified | Display Options | A Warning Theme has not been selected. |
|
| W9516 | No switch controller specified | Switch Options | Switch objects and/or a Switch Script has been selected, but there is no selected Switch Controller. |
|
| W9517 | Sim results should be on the server | Default Model | There are no results available on the server for the selected Default Simulation. |
|
| W9518 | No sim results present | Default Model | There are no results available (locally or on the server) for the selected Default Simulation. |
|
|
W9519 |
No electricity tariff theme specified |
Pump Overview |
There is no electricity tariff theme specified in the Pump Overview page of the baseline object window. |
|
|
W9520 |
Theme is not an electricity tariff results theme |
Pump Overview |
The theme specified in the Pump Overview page of the baseline object window is not of the correct type. |
|
|
W9521 |
Pump station selection list contains other objects |
Pump Overview |
The selection list specified in the Pump Overview page of the baseline object window contains objects other than pump stations and is therefore invalid. |
|
|
W9524 |
No warning theme specified |
Zones |
Zones have been defined in the Zone Options page of the baseline property sheet but no warning theme has been specified. |
|
