Attachments Endpoint

GET https://tenant_name.autodeskplm360.net/api/v3/workspaces/{workspaceId}/items//{itemId}/attachments?asc=name

This endpoint returns a list of all attachments for the specific item.

Upload attachments

This three-step process is more resilient and secure than using the deprecated REST API v1 endpoint.

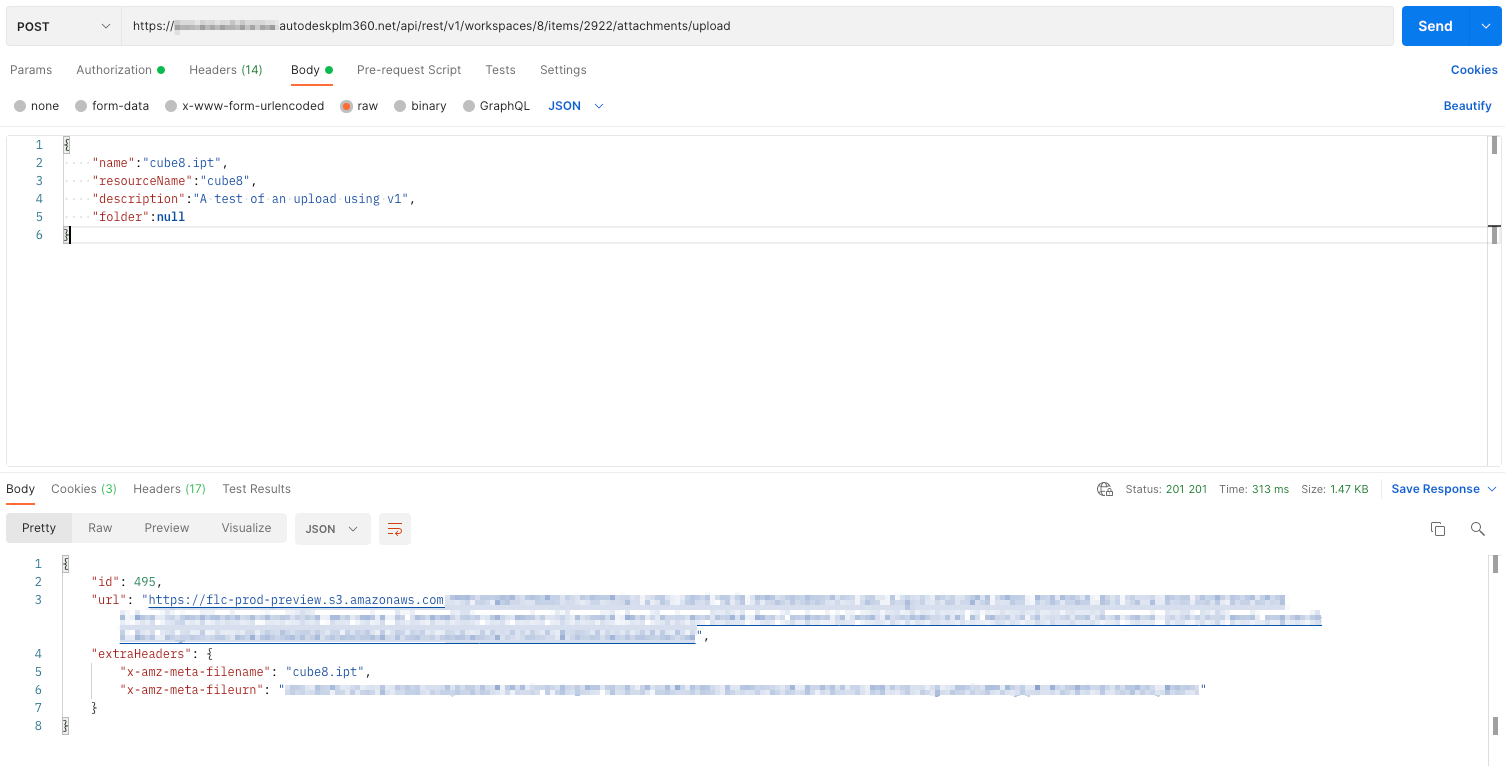

Step 1

Create a signed URL for the attachment that’s going to be uploaded to the bucket, containing the file information.

POST https://tenant_name.autodeskplm360.net/api/v3/workspaces/{workspaceId}/items/{itemId}/attachments

Header:
Accept: application/json
Content-Type: application/json

Body:

{
    "description":"empty|<string>",
    "name":"<file name.extension>",
    "folder": null|<folder name>,
    "resourceName":"<string>",
    "size": <size in bytes>
}

Result: this request will return a URL and headers in the response, which is used for Step 2 below.

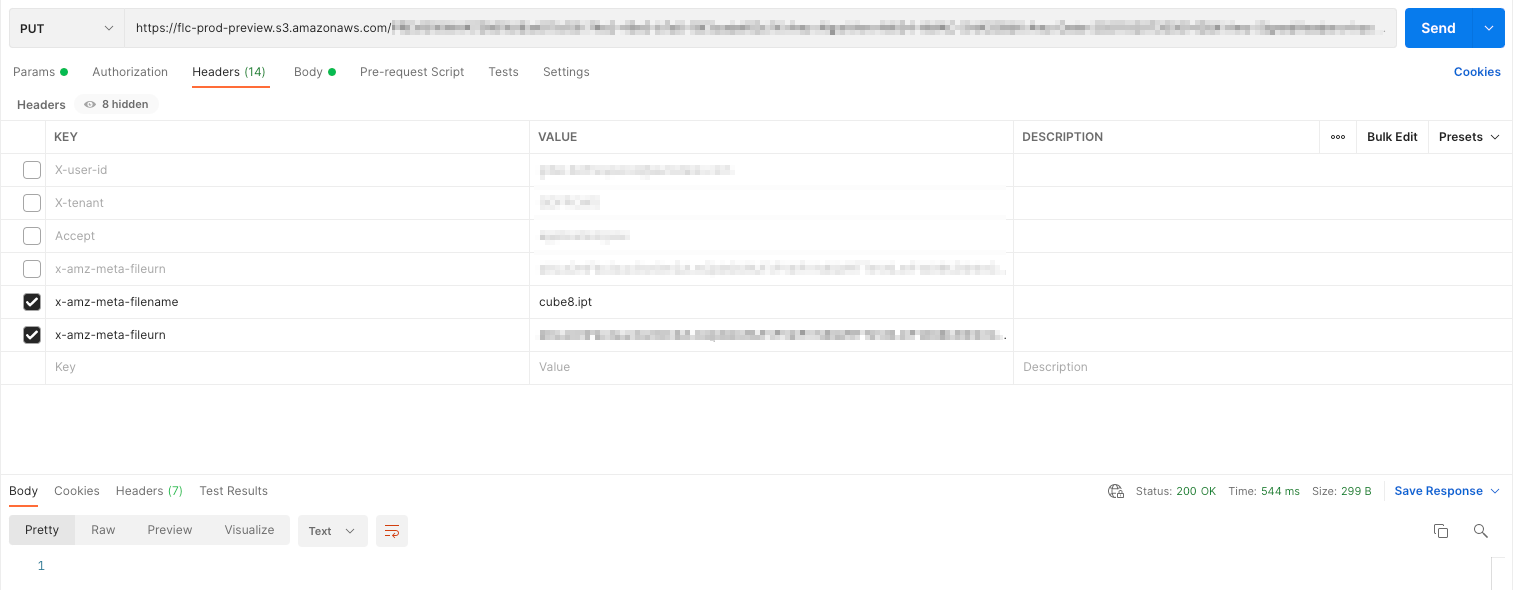

Step 2

Upload the file to the bucket.

PUT https://flc-prod-preview.s3.amazonaws.com/{tenantName}/{workspaceId}/...
(URL returned in the response from Step 1)

Header:
x-amz-meta-filename: <filename>,
x-amz-meta-fileurn: <value>
(Headers returned in the response from Step 1)

Body:
<Binary>

Result: this request will return a 200, indicating that the file was successfully uploaded.

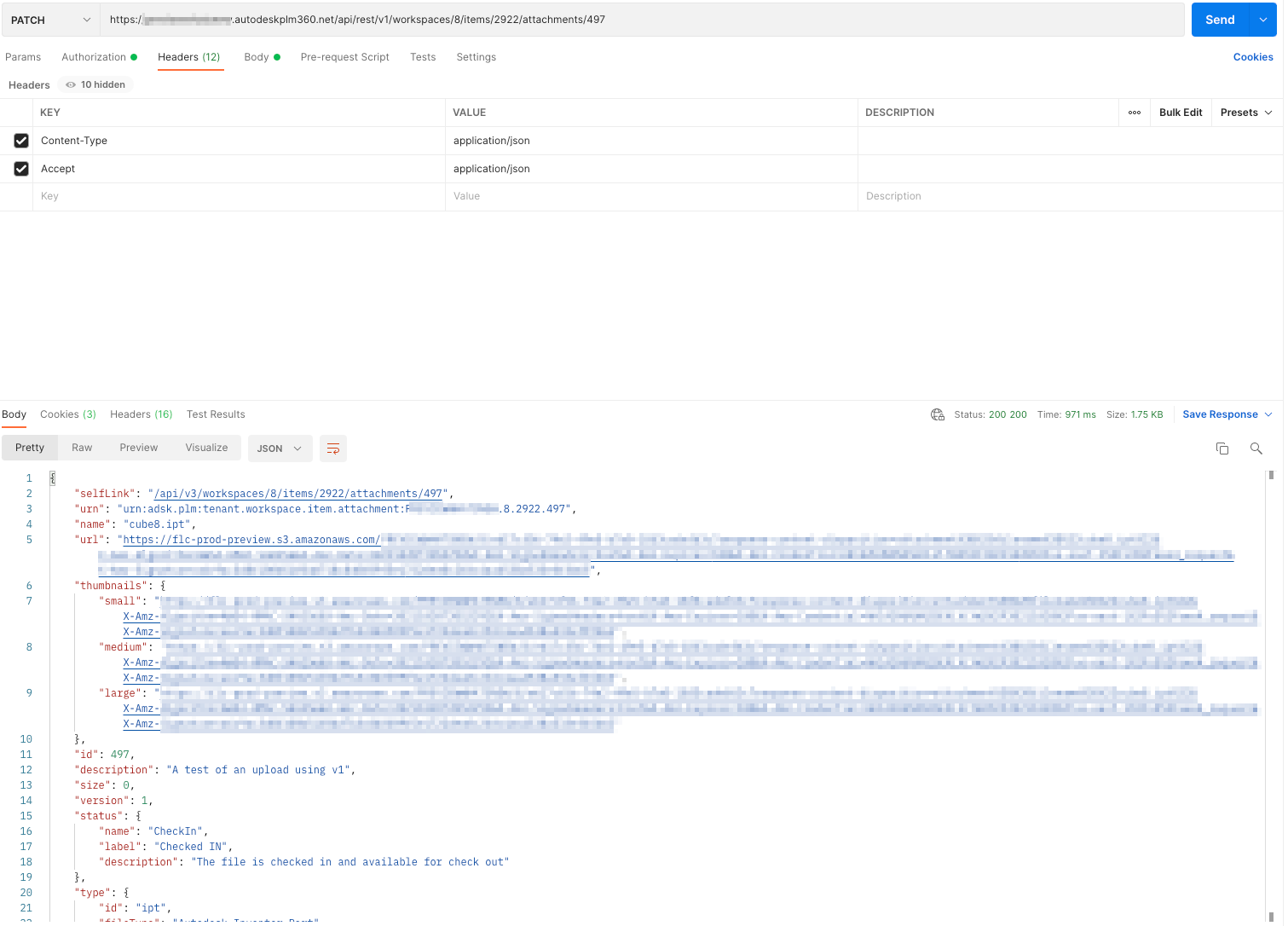

Step 3

Check-in the attachment.

PATCH https://tenant_name.autodeskplm360.net/api/v3/workspaces/{workspaceId}/items/{itemId}/attachments/{attachmentId}

Headers:
Accept: application/json
Content-Type: application/json

Body:
{
    "status":
    { "name":"CheckIn"
    }
}

Result: this request will return a 200, indicating that the file was successfully checked in, and now available in Fusion Manage. The response will contain the attachment entity.
