You can highlight any segments of selected solids' boundaries which are open (not properly linked) within tolerance.
- Select the solids you want to check.
- Click Visualisation tab > Tools panel > Open Edges to display the
Open Edges Information dialog.

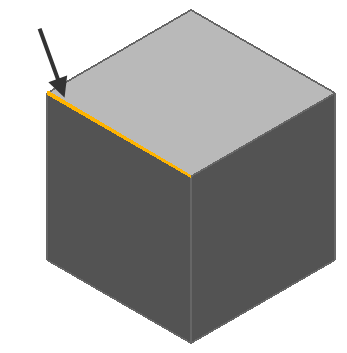

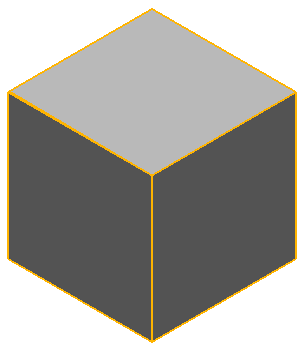

Any open segments of the solids' boundaries are highlighted:

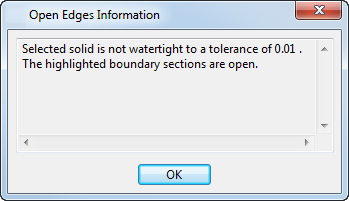

The dialog tells you whether the solids are fully linked:
- Click
OK. Any open segments of solids' boundaries are no longer highlighted.
If there are small holes in the solid, fix these using one of the following methods:
- Convert the solid back to surfaces, increase the tolerance and re-make the solid.
- Select the solid and click Manage tab > Fix panel > Solid Doctor.
