AIA Design Data Exchange (DDx) Connection
Insight provides an automated connection to report project and portfolio performance directly to DDx.
What is AIA Design Data Exchange (DDx)
The AIA Design Data Exchange (DDx) is an online platform designed for ongoing reporting to support the 2030 Challenge. This initiative motivates AEC professionals to enhance building energy efficiency and reduce carbon emissions, thereby mitigating environmental impacts. DDx offers a standardized reporting framework that enables projects and firms to meet and surpass the AIA 2030 reduction targets.
DDx Connection
The automated connection enables AIA 2030 committed firms to report their project and portfolio performance to the DDx directly from Autodesk Insight. This automated process between Insight and DDx eliminates the need for manual data entry and duplication of effort, encouraging performance analysis and more frequent reporting throughout the design process.
Report Data to the AIA DDx

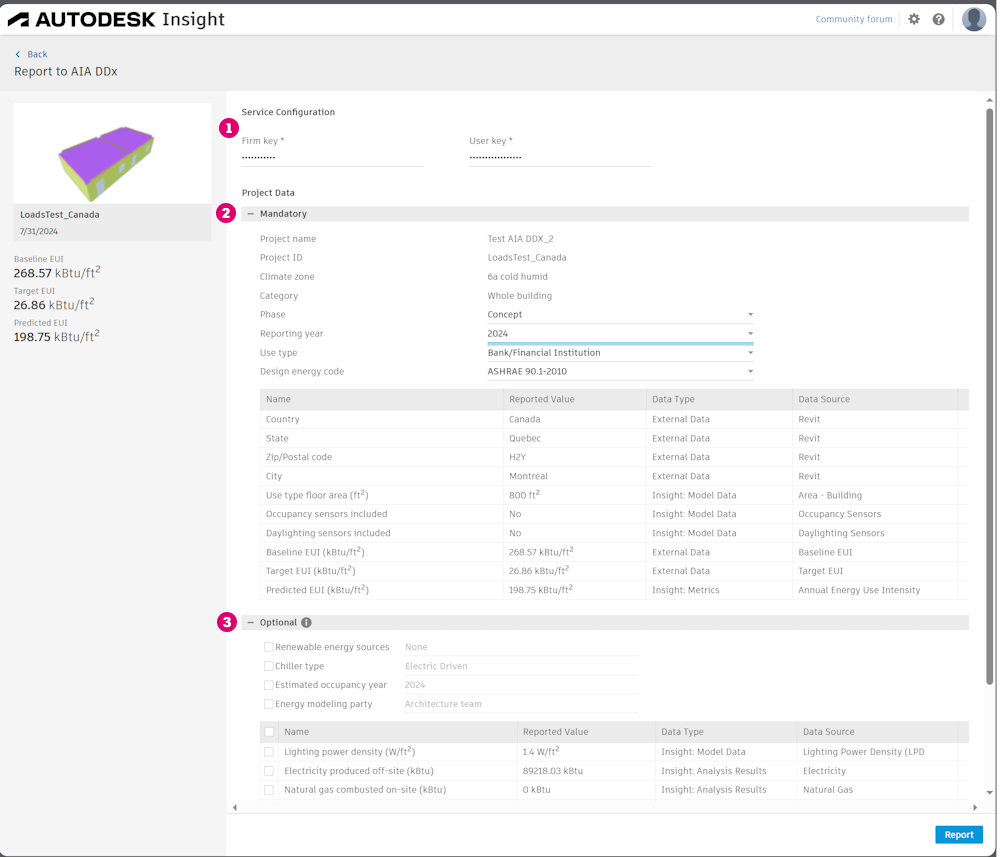

After completing an analysis of your model and preparing to submit your report to the AIA DDx, follow these steps:
Submit data to DDx
- From the App Home page, select 'Report to AIA DDx.'
- Enter your API key (your firm key) and User key (your user ID)
. - Review and collect mandatory
and optional data
to be reported. This information is derived from the Insight model, metrics, and third-party APIs. It includes information such as the following:
- Project Name
- Location
- Predicted EUI
- Baseline EUI
- Lighting Power Density (LPD)
- Window to wall Ratio (WWR)

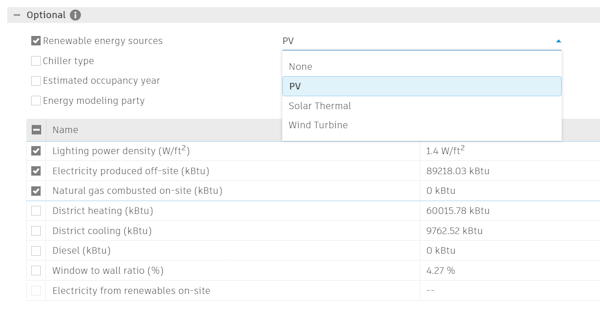

- In the Optional section, certain fields are editable, make adjustments as needed.
Note: You can right click, to search the optional data you would like to adjust.- Once the edits are complete, click 'Report' to submit to AIA DDx.
- You will receive a confirmation message once the submission is complete.
