FbxShape Class Reference
FbxShape Class Reference
This reference page is linked to from the following overview topics: #include <fbxshape.h>
Class Description
A shape describes the deformation on a set of control points, which is similar to the cluster deformer in Maya.
For example, we can add a shape to a created geometry. And the shape and the geometry have the same topological information but different position of the control points. With varying amounts of influence, the geometry performs a deformation effect.
- See Also
- FbxGeometry
- Examples:
Definition at line 32 of file fbxshape.h.

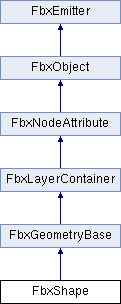

Inheritance diagram for FbxShape:
Public Member Functions | |
| bool | SetBlendShapeChannel (FbxBlendShapeChannel *pBlendShapeChannel) |
| Set the blend shape channel that contains this target shape. More... | |
| FbxBlendShapeChannel * | GetBlendShapeChannel () const |
| Get the blend shape channel that contains this target shape. More... | |
| FbxGeometry * | GetBaseGeometry () |
| Get the base geometry of this target shape. More... | |
| int | GetControlPointIndicesCount () const |
| Get the length of the arrays of control point indices and weights. More... | |
| int * | GetControlPointIndices () const |
| Get the array of control point indices. More... | |
| void | SetControlPointIndicesCount (int pCount) |
| Set the array size for the control point indices. More... | |
| void | AddControlPointIndex (int pIndex) |
| Add a control point index to the control point indices array. More... | |
| void | Reset () |
| Restore the shape to its initial state. More... | |
| Public Member Functions inherited from FbxGeometryBase | |
| virtual int | MemoryUsage () const |
| Calculate the actual amount of memory used by this geometry object. More... | |
| virtual void | InitControlPoints (int pCount) |
| Allocates memory space for the array of control points. More... | |
| void | InitNormals (int pCount=0) |
| Allocates memory space for the array of normals. More... | |
| void | InitNormals (FbxGeometryBase *pSrc) |
| Allocates memory space for the array of normals cloned from the pSrc. More... | |
| void | InitTangents (int pCount=0, const int pLayerIndex=0, const char *pName="") |
| Allocates memory space for the array of tangents on specified layer. More... | |
| void | InitTangents (FbxGeometryBase *pSrc, const int pLayerIndex=0) |
| Allocates memory space for the array of tangents cloned from the pSrc on the specified layer. More... | |
| void | InitBinormals (int pCount=0, const int pLayerIndex=0, const char *pName="") |
| Allocates memory space for the array of binormals. More... | |
| void | InitBinormals (FbxGeometryBase *pSrc, const int pLayerIndex=0) |
| Allocates memory space for the array of binormals cloned from the pSrc. More... | |
| virtual void | SetControlPointAt (const FbxVector4 &pCtrlPoint, const FbxVector4 &pNormal, int pIndex, bool pI2DSearch=false) |
| Sets the control point and the normal values at the specified index. More... | |
| virtual void | SetControlPointAt (const FbxVector4 &pCtrlPoint, int pIndex) |
| Sets the control point at a specified index. More... | |
| virtual FbxVector4 | GetControlPointAt (int pIndex) const |
| Gets the control point at the specified index. More... | |
| virtual void | SetControlPointNormalAt (const FbxVector4 &pNormal, int pIndex, bool pI2DSearch=false) |
| Sets the control point normal value at the specified index. More... | |
| virtual int | GetControlPointsCount () const |
| Returns the number of control points. More... | |
| virtual FbxVector4 * | GetControlPoints (FbxStatus *pStatus=NULL) const |
| Returns a pointer to the array of control points. More... | |
| virtual void | SetControlPointCount (int pCount) |
| Allocates memory space for the array of control points. More... | |
| void | ComputeBBox () |
| Computes the control points Bounding box. More... | |
| FbxGeometryElementNormal * | CreateElementNormal () |
| Creates a normal geometry element for this geometry. More... | |
| bool | RemoveElementNormal (FbxGeometryElementNormal *pElementNormal) |
| Remove the normal geometry element from this geometry. More... | |
| FbxGeometryElementNormal * | GetElementNormal (int pIndex=0) |
| Returns this geometry's normal element. More... | |
| const FbxGeometryElementNormal * | GetElementNormal (int pIndex=0) const |
| Returns this geometry's normal element. More... | |
| int | GetElementNormalCount () const |
| Get the number of this geometry's normal geometry element. More... | |
| FbxGeometryElementBinormal * | CreateElementBinormal () |
| Creates a binormal geometry element for this geometry. More... | |
| bool | RemoveElementBinormal (FbxGeometryElementBinormal *pElementBinormal) |
| Remove the binormal geometry element from this geometry. More... | |
| FbxGeometryElementBinormal * | GetElementBinormal (int pIndex=0) |
| Returns this geometry's binormal element. More... | |
| const FbxGeometryElementBinormal * | GetElementBinormal (int pIndex=0) const |
| Returns this geometry's binormal element. More... | |
| int | GetElementBinormalCount () const |
| Get the number of this geometry's binormal geometry element. More... | |
| FbxGeometryElementTangent * | CreateElementTangent () |
| Creates a tangent geometry element for this geometry. More... | |
| bool | RemoveElementTangent (FbxGeometryElementTangent *pElementTangent) |
| Remove the tangent geometry element from this geometry. More... | |
| FbxGeometryElementTangent * | GetElementTangent (int pIndex=0) |
| Returns this geometry's tangent element. More... | |
| const FbxGeometryElementTangent * | GetElementTangent (int pIndex=0) const |
| Returns this geometry's tangent element. More... | |
| int | GetElementTangentCount () const |
| Get the number of this geometry's tangent geometry element. More... | |
| FbxGeometryElementMaterial * | CreateElementMaterial () |
| Creates a material geometry element for this geometry. More... | |
| bool | RemoveElementMaterial (FbxGeometryElementMaterial *pElementMaterial) |
| Remove the material geometry element from this geometry. More... | |
| FbxGeometryElementMaterial * | GetElementMaterial (int pIndex=0) |
| Returns this geometry's material element. More... | |
| const FbxGeometryElementMaterial * | GetElementMaterial (int pIndex=0) const |
| Returns this geometry's material element. More... | |
| int | GetElementMaterialCount () const |
| Get the number of this geometry's material geometry element. More... | |
| FbxGeometryElementPolygonGroup * | CreateElementPolygonGroup () |
| Creates a polygon group geometry element for this geometry. More... | |
| bool | RemoveElementPolygonGroup (FbxGeometryElementPolygonGroup *pElementPolygonGroup) |
| Remove the polygon group geometry element from this geometry. More... | |
| FbxGeometryElementPolygonGroup * | GetElementPolygonGroup (int pIndex=0) |
| Returns this geometry's polygon group element. More... | |
| const FbxGeometryElementPolygonGroup * | GetElementPolygonGroup (int pIndex=0) const |
| Returns this geometry's polygon group element. More... | |
| int | GetElementPolygonGroupCount () const |
| Get the number of this geometry's polygon group geometry element. More... | |
| FbxGeometryElementVertexColor * | CreateElementVertexColor () |
| Creates a vertex color geometry element for this geometry. More... | |
| bool | RemoveElementVertexColor (FbxGeometryElementVertexColor *pElementVertexColor) |
| Remove the vertex color geometry element from this geometry. More... | |
| FbxGeometryElementVertexColor * | GetElementVertexColor (int pIndex=0) |
| Returns this geometry's vertex color element. More... | |
| const FbxGeometryElementVertexColor * | GetElementVertexColor (int pIndex=0) const |
| Returns this geometry's vertex color element. More... | |
| int | GetElementVertexColorCount () const |
| Get the number of this geometry's vertex color geometry element. More... | |
| FbxGeometryElementSmoothing * | CreateElementSmoothing () |
| Creates a smoothing geometry element for this geometry. More... | |
| bool | RemoveElementSmoothing (FbxGeometryElementSmoothing *pElementSmoothing) |
| Remove the smoothing geometry element from this geometry. More... | |
| FbxGeometryElementSmoothing * | GetElementSmoothing (int pIndex=0) |
| Returns this geometry's smoothing element. More... | |
| const FbxGeometryElementSmoothing * | GetElementSmoothing (int pIndex=0) const |
| Returns this geometry's smoothing element. More... | |
| int | GetElementSmoothingCount () const |
| Get the number of this geometry's smoothing geometry element. More... | |
| FbxGeometryElementCrease * | CreateElementVertexCrease () |
| Creates a vertex crease geometry element for this geometry. More... | |
| bool | RemoveElementVertexCrease (FbxGeometryElementCrease *pElementCrease) |
| Remove the vertex crease geometry element from this geometry. More... | |
| FbxGeometryElementCrease * | GetElementVertexCrease (int pIndex=0) |
| Returns this geometry's vertex crease element. More... | |
| const FbxGeometryElementCrease * | GetElementVertexCrease (int pIndex=0) const |
| Returns this geometry's vertex crease element. More... | |
| int | GetElementVertexCreaseCount () const |
| Get the number of this geometry's vertex crease geometry element. More... | |
| FbxGeometryElementCrease * | CreateElementEdgeCrease () |
| Creates an edge crease geometry element for this geometry. More... | |
| bool | RemoveElementEdgeCrease (FbxGeometryElementCrease *pElementCrease) |
| Remove the edge crease geometry element from this geometry. More... | |
| FbxGeometryElementCrease * | GetElementEdgeCrease (int pIndex=0) |
| Returns this geometry's edge crease element. More... | |
| const FbxGeometryElementCrease * | GetElementEdgeCrease (int pIndex=0) const |
| Returns this geometry's edge crease element. More... | |
| int | GetElementEdgeCreaseCount () const |
| Get the number of this geometry's edge crease geometry element. More... | |
| FbxGeometryElementHole * | CreateElementHole () |
| Creates a hole geometry element for this geometry. More... | |
| bool | RemoveElementHole (FbxGeometryElementHole *pElementHole) |
| Remove the hole geometry element from this geometry. More... | |
| FbxGeometryElementHole * | GetElementHole (int pIndex=0) |
| Returns this geometry's hole element. More... | |
| const FbxGeometryElementHole * | GetElementHole (int pIndex=0) const |
| Returns this geometry's hole element. More... | |
| int | GetElementHoleCount () const |
| Get the number of this geometry's hole geometry element. More... | |
| FbxGeometryElementUserData * | CreateElementUserData () |
| Creates a user data geometry element for this geometry. More... | |
| bool | RemoveElementUserData (FbxGeometryElementUserData *pElementUserData) |
| Remove the user data geometry element from this geometry. More... | |
| FbxGeometryElementUserData * | GetElementUserData (int pIndex=0) |
| Returns this geometry's user data element. More... | |
| const FbxGeometryElementUserData * | GetElementUserData (int pIndex=0) const |
| Returns this geometry's user data element. More... | |
| int | GetElementUserDataCount () const |
| Get the number of this geometry's user data geometry element. More... | |
| FbxGeometryElementVisibility * | CreateElementVisibility () |
| Creates a visibility geometry element for this geometry. More... | |
| bool | RemoveElementVisibility (FbxGeometryElementVisibility *pElementVisibility) |
| Remove the visibility geometry element from this geometry. More... | |
| FbxGeometryElementVisibility * | GetElementVisibility (int pIndex=0) |
| Returns this geometry's visibility element. More... | |
| const FbxGeometryElementVisibility * | GetElementVisibility (int pIndex=0) const |
| Returns this geometry's visibility element. More... | |
| int | GetElementVisibilityCount () const |
| Get the number of this geometry's visibility geometry element. More... | |
| FbxGeometryElementUV * | CreateElementUV (const char *pUVSetName, FbxLayerElement::EType pTypeIdentifier=FbxLayerElement::eTextureDiffuse) |
| Creates a UV geometry element for this geometry. More... | |
| bool | RemoveElementUV (FbxGeometryElementUV *pElementUV) |
| Remove the UV geometry element from this geometry. More... | |
| FbxGeometryElementUV * | GetElementUV (int pIndex=0, FbxLayerElement::EType pTypeIdentifier=FbxLayerElement::eUnknown) |
| Returns this geometry's UV element. More... | |
| const FbxGeometryElementUV * | GetElementUV (int pIndex=0, FbxLayerElement::EType pTypeIdentifier=FbxLayerElement::eUnknown) const |
| Returns this geometry's UV element. More... | |
| int | GetElementUVCount (FbxLayerElement::EType pTypeIdentifier=FbxLayerElement::eUnknown) const |
| Get the number of this geometry's UV geometry element. More... | |
| FbxGeometryElementUV * | GetElementUV (const char *pUVSetName) |
| Returns this geometry's UV element. More... | |
| const FbxGeometryElementUV * | GetElementUV (const char *pUVSetName) const |
| Returns this geometry's UV element. More... | |
| void | GetUVSetNames (FbxStringList &pUVSetNameList) const |
| Returns this geometry's all UV set names. More... | |
| virtual bool | ContentWriteTo (FbxStream &pStream) const |
| Writes the content of the geometry object to the specified stream. More... | |
| virtual bool | ContentReadFrom (const FbxStream &pStream) |
| Reads the content of the geometry object from the specified stream. More... | |
| Public Member Functions inherited from FbxLayerContainer | |
| virtual FbxNodeAttribute::EType | GetAttributeType () const |
| Returns the type of node attribute. More... | |
| bool | ConvertDirectToIndexToDirect (int pLayer) |
| Converts the reference mode from eDirect to eIndexToDirect. More... | |
| int | CreateLayer () |
| Creates a new layer on top of existing layers. More... | |
| void | ClearLayers () |
| Deletes all layers. More... | |
| int | GetLayerCount () const |
| Returns the number of layers. More... | |
| int | GetLayerCount (FbxLayerElement::EType pType, bool pUVCount=false) const |
| Returns the number of layers that contain the specified layer element type. More... | |
| FbxLayer * | GetLayer (int pIndex) |
| Returns the layer at the specified index. More... | |
| const FbxLayer * | GetLayer (int pIndex) const |
| Returns the layer at the specified index. More... | |
| FbxLayer * | GetLayer (int pIndex, FbxLayerElement::EType pType, bool pIsUV=false) |
| Returns the n'th layer as specified by pIndex that contains the specified layer element type. More... | |
| const FbxLayer * | GetLayer (int pIndex, FbxLayerElement::EType pType, bool pIsUV=false) const |
| Returns the n'th layer as specified by pIndex that contains the specified layer element type. More... | |
| int | GetLayerIndex (int pIndex, FbxLayerElement::EType pType, bool pIsUV=false) const |
| Returns the global index of the n'th layer as specified by pIndex that contains the specified layer element type. More... | |
| int | GetLayerTypedIndex (int pGlobalIndex, FbxLayerElement::EType pType, bool pIsUV=false) const |
| Converts the layer's global index to a type-specific index. More... | |
| Public Member Functions inherited from FbxNodeAttribute | |
| int | GetNodeCount () const |
| Return the node count using this attribute. More... | |
| FbxNode * | GetNode (int pIndex=0) const |
| Return the node this attribute is set to. More... | |
| Public Member Functions inherited from FbxObject | |
| virtual void | Compact () |
| Compact the memory used by this object. More... | |
| FBX_DEPRECATED bool | Is (const FbxClassId &pClassId) const |
| Test if this class is a hierarchical children of the specified class type. More... | |
| template<class T > | |
| bool | Is () const |
| Templated test if this class is a hierarchical children of the specified class type. More... | |
| FbxManager * | GetFbxManager () const |
| Retrieve the FbxManager this object belongs to. More... | |
| FbxDocument * | GetDocument () const |
| Returns a const pointer to the document that contains this object. More... | |
| FbxDocument * | GetRootDocument () const |
| Returns a const pointer to the root document that contains this object. More... | |
| FbxScene * | GetScene () const |
| Returns a const pointer to the scene that contains this object. More... | |
| void | Destroy (bool pRecursive=false) |
| Unregister and delete this object from memory. More... | |
| void | ResetProperties () |
| Reset all the properties of this object to their default values. More... | |
| virtual bool | GetSelected () |
| Returns if this object is currently in a selected state. More... | |
| virtual void | SetSelected (bool pSelected) |
| Sets whether this object is currently selected. More... | |
| void | SetUserDataPtr (const FbxUInt64 &pUserID, void *pUserData) |
| Sets the data pointer for an user data record whose ID is pUserID. More... | |
| void * | GetUserDataPtr (const FbxUInt64 &pUserID) const |
| Returns the data pointer of an user data record whose ID is pUserID. More... | |
| void | SetUserDataPtr (void *pUserData) |
| Sets the data pointer for the user data record whose ID is the object ID. More... | |
| void * | GetUserDataPtr () const |
| Returns the data pointer of the user data record whose ID is the object ID. More... | |
| bool | ConnectSrcObject (FbxObject *pObject, FbxConnection::EType pType=FbxConnection::eNone) |
| Connects this object to a source object. More... | |
| bool | IsConnectedSrcObject (const FbxObject *pObject) const |
| Judges whether this object connects with the source object. More... | |
| bool | DisconnectSrcObject (FbxObject *pObject) |
| Disconnects this object from a source object. More... | |
| bool | DisconnectAllSrcObject () |
| Disconnects this object from all source objects. More... | |
| bool | DisconnectAllSrcObject (const FbxCriteria &pCriteria) |
| Disconnects this object from all source objects that satisfy a given criteria. More... | |
| FBX_DEPRECATED bool | DisconnectAllSrcObject (FbxClassId pClassId) |
| Disconnects this object from all source objects of a specific class type. More... | |
| int | GetSrcObjectCount () const |
| Returns the number of source objects with which this object connects. More... | |
| int | GetSrcObjectCount (const FbxCriteria &pCriteria) const |
| Returns the number of source objects that satisfy the given criteria with which this object connects. More... | |
| FBX_DEPRECATED int | GetSrcObjectCount (FbxClassId pClassId) const |
| Returns the number of source objects of the specific class type with which this object connects. More... | |
| FbxObject * | GetSrcObject (int pIndex=0) const |
| Returns the source object with which this object connects at the specified index. More... | |
| FbxObject * | GetSrcObject (const FbxCriteria &pCriteria, int pIndex=0) const |
| Returns the source object that satisfies the criteria at the specified index with which this object connects. More... | |
| FBX_DEPRECATED FbxObject * | GetSrcObject (FbxClassId pClassId, int pIndex=0) const |
| Returns the source object of the specified class type at the specified index with which this object connects. More... | |
| FbxObject * | FindSrcObject (const char *pName, int pStartIndex=0) const |
| Searches the source object with the specified name, starting at the specified index. More... | |
| FbxObject * | FindSrcObject (const FbxCriteria &pCriteria, const char *pName, int pStartIndex=0) const |
| Searches the source object with the specified name which satisfies the given criteria, starting at the specified index. More... | |
| FBX_DEPRECATED FbxObject * | FindSrcObject (FbxClassId pClassId, const char *pName, int pStartIndex=0) const |
| Searches the source object with the specified name which is also the specified class type, starting at the specified index. More... | |
| template<class T > | |
| bool | DisconnectAllSrcObject () |
| Disconnects this object from all source objects of the specified class type. More... | |
| template<class T > | |
| bool | DisconnectAllSrcObject (const FbxCriteria &pCriteria) |
| Disconnects this object from all source objects that are of the specified class type and that satisfy the given criteria. More... | |
| template<class T > | |
| int | GetSrcObjectCount () const |
| Returns the number of source objects of a specific class type with which this object connects. More... | |
| template<class T > | |
| int | GetSrcObjectCount (const FbxCriteria &pCriteria) const |
| Returns the number of source objects with which this object connects that are the specified class type and that satisfy the given criteria. More... | |
| template<class T > | |
| T * | GetSrcObject (int pIndex=0) const |
| Returns the source object of the specified class type at the specified index. More... | |
| template<class T > | |
| T * | GetSrcObject (const FbxCriteria &pCriteria, int pIndex=0) const |
| Returns the source object that is the specified class type and that satisfies the given criteria at the specified index. More... | |
| template<class T > | |
| T * | FindSrcObject (const char *pName, int pStartIndex=0) const |
| Searches the source object with the specified name that is the specified class type, starting at the specified index. More... | |
| template<class T > | |
| T * | FindSrcObject (const FbxCriteria &pCriteria, const char *pName, int pStartIndex=0) const |
| Searches the source object with the specified name that is the specified class type and that satisfies the given criteria, starting at the specified index. More... | |
| bool | ConnectDstObject (FbxObject *pObject, FbxConnection::EType pType=FbxConnection::eNone) |
| Connects this object to one destination object. More... | |
| bool | IsConnectedDstObject (const FbxObject *pObject) const |
| Judges whether this object connects with the destination object. More... | |
| bool | DisconnectDstObject (FbxObject *pObject) |
| Disconnects this object from the destination object. More... | |
| bool | DisconnectAllDstObject () |
| Disconnects this object from all destination objects. More... | |
| bool | DisconnectAllDstObject (const FbxCriteria &pCriteria) |
| Disconnects this object from all destination objects that satisfy given criteria. More... | |
| FBX_DEPRECATED bool | DisconnectAllDstObject (FbxClassId pClassId) |
| Disconnects this object from all destination objects of the specified class type. More... | |
| int | GetDstObjectCount () const |
| Returns the number of destination objects with which this object connects. More... | |
| int | GetDstObjectCount (const FbxCriteria &pCriteria) const |
| Returns the number of destination objects with which this object connects that satisfy the given criteria. More... | |
| FBX_DEPRECATED int | GetDstObjectCount (FbxClassId pClassId) const |
| Returns the number of destination objects of the specified class type with which this object connects. More... | |
| FbxObject * | GetDstObject (int pIndex=0) const |
| Returns the destination object at the specified index with which this object connects. More... | |
| FbxObject * | GetDstObject (const FbxCriteria &pCriteria, int pIndex=0) const |
| Returns the destination object with which this object connects that satisfies the given criteria at the specified index. More... | |
| FBX_DEPRECATED FbxObject * | GetDstObject (FbxClassId pClassId, int pIndex=0) const |
| Returns the destination object of the specified class type with which this object connects at the specified index. More... | |
| FbxObject * | FindDstObject (const char *pName, int pStartIndex=0) const |
| Searches the destination object with the specified name, starting at the specified index. More... | |
| FbxObject * | FindDstObject (const FbxCriteria &pCriteria, const char *pName, int pStartIndex=0) const |
| Searches the destination object with the specified name which satisfies the given criteria, starting at the specified index. More... | |
| FBX_DEPRECATED FbxObject * | FindDstObject (FbxClassId pClassId, const char *pName, int pStartIndex=0) const |
| Searches the destination object with the specified name which is the specified class type, starting at the specified index. More... | |
| template<class T > | |
| bool | DisconnectAllDstObject () |
| Disconnects this object from all destination objects of the specified class type. More... | |
| template<class T > | |
| bool | DisconnectAllDstObject (const FbxCriteria &pCriteria) |
| Disconnects this object from all destination objects that are the specified class type and that satisfy the given criteria. More... | |
| template<class T > | |
| int | GetDstObjectCount () const |
| Returns the number of destination objects of the specified class type with which this object connects. More... | |
| template<class T > | |
| int | GetDstObjectCount (const FbxCriteria &pCriteria) const |
| Returns the number of destination objects with which this object connects that are the specified class type and that satisfy the given criteria. More... | |
| template<class T > | |
| T * | GetDstObject (int pIndex=0) const |
| Returns the destination object with which this object connects that is the specified class type at the specified index. More... | |
| template<class T > | |
| T * | GetDstObject (const FbxCriteria &pCriteria, int pIndex=0) const |
| Returns the destination object with which this object connects that is the specified class type and that satisfies the given criteria at the specified index. More... | |
| template<class T > | |
| T * | FindDstObject (const char *pName, int pStartIndex=0) const |
| Searches the destination object with the specified name which is of the specified class type, starting at the specified index. More... | |
| template<class T > | |
| T * | FindDstObject (const FbxCriteria &pCriteria, const char *pName, int pStartIndex=0) const |
| Searches the destination object with the specified name that is the specified class type and that satisfies the given criteria, starting at the specified index. More... | |
| FbxProperty | GetFirstProperty () const |
| Returns the first property of this object. More... | |
| FbxProperty | GetNextProperty (const FbxProperty &pProperty) const |
| Returns the next property of this object that follows the specified property. More... | |
| FbxProperty | FindProperty (const char *pName, bool pCaseSensitive=true) const |
| Searches a property by name. More... | |
| FbxProperty | FindProperty (const char *pName, const FbxDataType &pDataType, bool pCaseSensitive=true) const |
| Searches a property by name and data type. More... | |
| FbxProperty | FindPropertyHierarchical (const char *pName, bool pCaseSensitive=true) const |
| Searches a property by full name. More... | |
| FbxProperty | FindPropertyHierarchical (const char *pName, const FbxDataType &pDataType, bool pCaseSensitive=true) const |
| Searches a property by full name and data type. More... | |
| FbxProperty | GetClassRootProperty () |
| Returns the class root property. More... | |
| bool | ConnectSrcProperty (const FbxProperty &pProperty) |
| Connects this object to a source property. More... | |
| bool | IsConnectedSrcProperty (const FbxProperty &pProperty) |
| Determines whether this object connects with the specified source property. More... | |
| bool | DisconnectSrcProperty (const FbxProperty &pProperty) |
| Disconnects this object from the specified source property. More... | |
| int | GetSrcPropertyCount () const |
| Returns the number of source properties with which this object connects. More... | |
| FbxProperty | GetSrcProperty (int pIndex=0) const |
| Returns the source property at the specified index with which this object connects. More... | |
| FbxProperty | FindSrcProperty (const char *pName, int pStartIndex=0) const |
| Searches a source property with which this object connects that has a specific name, starting at the specified index. More... | |
| bool | ConnectDstProperty (const FbxProperty &pProperty) |
| Connects this object to a destination property. More... | |
| bool | IsConnectedDstProperty (const FbxProperty &pProperty) |
| Determines if this object connects with the specified destination property. More... | |
| bool | DisconnectDstProperty (const FbxProperty &pProperty) |
| Disconnects this object from the specified destination property. More... | |
| int | GetDstPropertyCount () const |
| Returns the number of destination properties with which this object connects. More... | |
| FbxProperty | GetDstProperty (int pIndex=0) const |
| Returns the destination property at the specified index with which this object connects. More... | |
| FbxProperty | FindDstProperty (const char *pName, int pStartIndex=0) const |
| Searches a destination property with which this object connects that has a specific name, starting at the specified index. More... | |
| int | ContentUnload () |
| Unloads this object's content using the offload peripheral that is currently set in the document then flushes it from memory. More... | |
| int | ContentLoad () |
| Loads this object's content using the offload peripheral that is currently set in the document. More... | |
| bool | ContentIsLoaded () const |
| Judges if this object's content is loaded. More... | |
| void | ContentDecrementLockCount () |
| Decreases the content lock count of an object. More... | |
| void | ContentIncrementLockCount () |
| Increases the content lock count of an object. More... | |
| bool | ContentIsLocked () const |
| Judges if this object's content is locked. More... | |
| void | EmitMessage (FbxMessage *pMessage) const |
| Emits a message in all available message emitters in the document or SDK manager. More... | |
| virtual const char * | Localize (const char *pID, const char *pDefault=NULL) const |
| Localization helper function, it calls the implementation of FBX SDK manager. More... | |
| FbxLibrary * | GetParentLibrary () const |
| Returns a handle on the parent library of this object. More... | |
| bool | AddImplementation (FbxImplementation *pImplementation) |
| Adds an implementation. More... | |
| bool | RemoveImplementation (FbxImplementation *pImplementation) |
| Removes an implementation. More... | |
| bool | HasDefaultImplementation (void) const |
| Determines if this shading node has a default implementation. More... | |
| FbxImplementation * | GetDefaultImplementation (void) const |
| Returns the default implementation of this shading node. More... | |
| bool | SetDefaultImplementation (FbxImplementation *pImplementation) |
| Sets the default implementation of this shading node. More... | |
| int | GetImplementationCount (const FbxImplementationFilter *pCriteria=NULL) const |
| Returns the number of implementations that satisfy a given criteria. More... | |
| FbxImplementation * | GetImplementation (int pIndex, const FbxImplementationFilter *pCriteria=NULL) const |
| Returns the implementation at the specified index that satisfies the given criteria. More... | |
| virtual FbxString | GetUrl () const |
| Returns the URL of this object. More... | |
| virtual bool | SetUrl (char *pUrl) |
| Sets the URL of this object. More... | |
| void | SetRuntimeClassId (const FbxClassId &pClassId) |
| Set the run-time ClassId for this class. More... | |
| FbxClassId | GetRuntimeClassId () const |
| Retrieve the run-time ClassId for this object. More... | |
| bool | IsRuntime (const FbxClassId &pClassId) const |
| Test if this class is a hierarchical children of the specified class type. More... | |
| bool | IsRuntimePlug () const |
| Find out if the ClassId was registered during run-time rather than at compile time. More... | |
| void | SetObjectFlags (EObjectFlag pFlags, bool pValue) |
| Set the state of object flags. More... | |
| bool | GetObjectFlags (EObjectFlag pFlags) const |
| Get the state of object flags. More... | |
| void | SetAllObjectFlags (FbxUInt pFlags) |
| Override all object flags at once. More... | |
| FbxUInt | GetAllObjectFlags () const |
| Get all object flags at once. More... | |
| virtual FbxObject & | Copy (const FbxObject &pObject) |
| Copy an object content into this object. More... | |
| virtual FbxObject * | Clone (FbxObject::ECloneType pCloneType=eDeepClone, FbxObject *pContainer=NULL, void *pSet=NULL) const |
| Creates a clone of this object. More... | |
| bool | IsAReferenceTo () const |
| Checks if this object is a reference clone of another object. More... | |
| FbxObject * | GetReferenceTo () const |
| If this object is a reference clone, returns the original object (from which the clone originates). More... | |
| bool | IsReferencedBy () const |
| Checks if any objects are reference cloned from this object. More... | |
| int | GetReferencedByCount () const |
| Returns the number of objects that are reference clones of this object. More... | |
| FbxObject * | GetReferencedBy (int pIndex) const |
| Returns a reference clone of this object at the specified index. More... | |
| void | SetName (const char *pName) |
| Sets the name of this object. More... | |
| const char * | GetName () const |
| Returns the full name of this object. More... | |
| FbxString | GetNameWithoutNameSpacePrefix () const |
| Returns the name of the object without the namespace qualifier. More... | |
| FbxString | GetNameWithNameSpacePrefix () const |
| Returns the name of the object with the namespace qualifier. More... | |
| void | SetInitialName (const char *pName) |
| Sets the initial name of the object. More... | |
| const char * | GetInitialName () const |
| Returns the initial name of the object. More... | |
| FbxString | GetNameSpaceOnly () |
| Returns the namespace of the object. More... | |
| void | SetNameSpace (FbxString pNameSpace) |
| Sets the namespace of the object. More... | |
| FbxArray< FbxString * > | GetNameSpaceArray (char identifier) |
| Returns an array of all the namespaces for this object. More... | |
| FbxString | GetNameOnly () const |
| Returns only the name (no namespace or prefix) of the object. More... | |
| FbxString | GetNameSpacePrefix () const |
| Returns the namespace qualifier. More... | |
| const FbxUInt64 & | GetUniqueID () const |
| Returns the unique ID of this object. More... | |
| Public Member Functions inherited from FbxEmitter | |
| void | AddListener (FbxEventHandler &pHandler) |
| Add the specified event handler to current emitter list. More... | |
| void | RemoveListener (FbxEventHandler &pHandler) |
| Remove the specified event handler from current emitter list. More... | |
| template<typename EventType > | |
| void | Emit (const EventType &pEvent) const |
| Emit an event with the specified the event type. More... | |
Additional Inherited Members | |
| Public Types inherited from FbxNodeAttribute | |
| enum | EType { eUnknown, eNull, eMarker, eSkeleton, eMesh, eNurbs, ePatch, eCamera, eCameraStereo, eCameraSwitcher, eLight, eOpticalReference, eOpticalMarker, eNurbsCurve, eTrimNurbsSurface, eBoundary, eNurbsSurface, eShape, eLODGroup, eSubDiv, eCachedEffect, eLine } |
| Node attribute types. More... | |
| Public Types inherited from FbxObject | |
| enum | EObjectFlag { eNone = 0, eInitialized = 1 << 0, eSystem = 1 << 1, eSavable = 1 << 2, eSelected = 1 << 3, eHidden = 1 << 4, eContentLoaded = 1 << 5, eDontLocalize = 1 << 6, eCopyCalledByClone = 1 << 16 } |
| Flags available to control objects. More... | |
| enum | ECloneType { eDeepClone, eReferenceClone } |
| Types of clones that can be created for FbxObject. More... | |
| Static Public Member Functions inherited from FbxObject | |
| static FbxString | RemovePrefix (char *pName) |
| Removes the prefix of pName. More... | |
| static FbxString | StripPrefix (FbxString &lName) |
| Strips the prefix of pName. More... | |
| static FbxString | StripPrefix (const char *pName) |
| Strips the prefix of pName. More... | |
| Public Attributes inherited from FbxGeometryBase | |
| FbxPropertyT< FbxBool > | PrimaryVisibility |
| Control the geometry render state. Geometry can still cast shadows even if this is turned off. More... | |
| FbxPropertyT< FbxBool > | CastShadow |
| If true, the geometry will produce shadows. More... | |
| FbxPropertyT< FbxBool > | ReceiveShadow |
| If true, the geometry will receive shadows. More... | |
| FbxPropertyT< FbxDouble3 > | BBoxMin |
| The minimum value of the control points bounding box. More... | |
| FbxPropertyT< FbxDouble3 > | BBoxMax |
| The maximum value of the control points bounding box. More... | |
| Public Attributes inherited from FbxNodeAttribute | |
| FbxPropertyT< FbxDouble3 > | Color |
| This property handles the color. More... | |
| Public Attributes inherited from FbxObject | |
| FbxProperty | RootProperty |
| The root property that holds all children property for this object. More... | |
| Static Public Attributes inherited from FbxNodeAttribute | |
| static const char * | sColor |
| Property Names. More... | |
| static const FbxDouble3 | sDefaultColor |
| Property Default Values. More... | |
| Protected Member Functions inherited from FbxObject | |
| virtual void | Construct (const FbxObject *pFrom) |
| Optional constructor override, automatically called by default constructor. More... | |
| virtual void | ConstructProperties (bool pForceSet) |
| Optional property constructor override, automatically called by default constructor. More... | |
| virtual void | Destruct (bool pRecursive) |
| Optional destructor override, automatically called by default destructor. More... | |
| virtual void | ContentClear () |
| Clears this object's content from memory. More... | |
| virtual FbxPeripheral * | GetPeripheral () |
| Retrieves the peripheral of that object. More... | |
Member Function Documentation
| bool SetBlendShapeChannel | ( | FbxBlendShapeChannel * | pBlendShapeChannel | ) |
Set the blend shape channel that contains this target shape.
- Parameters
-
pBlendShapeChannel Pointer to the blend shape channel to set.
- Returns
trueon success,falseotherwise.
| FbxBlendShapeChannel* GetBlendShapeChannel | ( | ) | const |
Get the blend shape channel that contains this target shape.
- Returns
- a pointer to the blend shape channel if set or NULL.
| FbxGeometry* GetBaseGeometry | ( | ) |
Get the base geometry of this target shape.
- Returns
- a pointer to the base geometry if set or NULL.
- Remarks
- Since target shape can only connected to its base geometry through blend shape channel and blend shape deformer. So only when this target shape is connected to a blend shape channel, and the blend shape channel is connected to a blend shape deformer, and the blend shape deformer is used on a base geometry, then to get base geometry will success.
| int GetControlPointIndicesCount | ( | ) | const |
Get the length of the arrays of control point indices and weights.
- Returns
- Length of the arrays of control point indices and weights. Returns 0 if no control point indices have been added or the arrays have been reset.
| int* GetControlPointIndices | ( | ) | const |
Get the array of control point indices.
- Returns
- Pointer to the array of control point indices.
NULLif no control point indices have been added or the array has been reset.
| void SetControlPointIndicesCount | ( | int | pCount | ) |
Set the array size for the control point indices.
- Parameters
-
pCount The new count.
| void AddControlPointIndex | ( | int | pIndex | ) |
Add a control point index to the control point indices array.
- Parameters
-
pIndex The control point index to add.
| void Reset | ( | ) |
Restore the shape to its initial state.
Calling this function will clear the following:
- Pointer to blend shape channel.
- Control point indices.
The documentation for this class was generated from the following file:
- fbxsdk/scene/geometry/fbxshape.h
