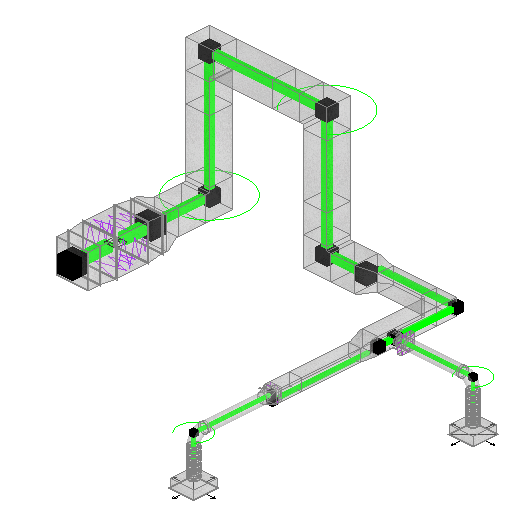

The Design Line Sub-System is a takeoff feature within our applications that aids in reducing time spent on models and delivers increased accuracy in the drawing of all MEP co-ordinated systems.
Estimators can also use Design Lines technology to import and trace over Tender Drawing on the screen. With the added benefit of an accurate visual representation and audit trail of the Take-Off.
Draftsmen have New Tools to quickly Route Service Runs or to automatically change existing Service Runs from one System to another. The Design Line system provides the underlying Rules for Importing and Exporting Service runs from other Software; for example, ABS and other Design Programs.
Engineers can start with a Blank sheet of paper or a Building Layout drawing and quickly draw an initial design layout. The design can be Priced for Labour and Materials; and without re-drawing, the Duct/Piping System can be Swapped out to an alternative System for comparison. (Copper to Steel).
Engineers can also analyse and check their original HVAC sizing after it has been drafted to fit the Building.
