adskFrameBufferState.h File Reference

Detailed Description

Structures and functions for manipulating the frame buffer state.

#include "adskMayaState.h"
#include "adskMIDataPtr.h"
#include "private/shader.h"
#include "adskShaderSDKNamespaceBegin.h"
#include "adskShaderSDKNamespaceEnd.h"
#include "adskExport.h"
#include "adskRenderPassTypes.h"

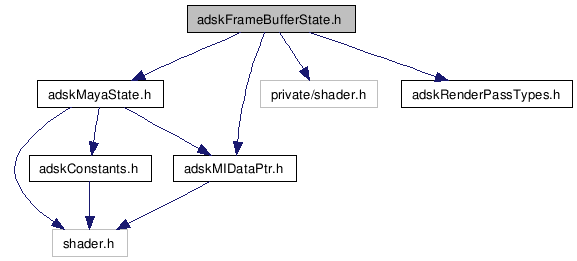

Include dependency graph for adskFrameBufferState.h:

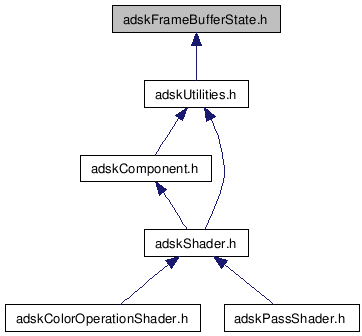

This graph shows which files directly or indirectly include this file:


Classes

struct  FrameBufferState
 Data structure that stores state information used for frame buffer management. More...
struct  FrameBufferAccumulator
 Data structure that stores frame buffer state relative to a specific trace recursion level. More...
struct  FrameBufferInfo
 Data structure required to store the intermediate state for controlling frame buffer operations. More...
struct  PassTypeInfo
 Datastructure used internally to store type information on material render passes. More...
class  FrameBufferDisable
 Creating an object of this class will disable frame buffer contributions in indirect shader calls in the current thread for the lifetime of the object. More...

Enumerations

enum  FrameBufferFlagBits {
  FB_FLAG_NONE = 0, FB_FLAG_USE_TRANSPARENCY = 1 << 0, FB_FLAG_HOLDOUT = 1 << 1, FB_FLAG_REFLECT_HIDDEN = 1 << 2,
  FB_FLAG_REFRACT_HIDDEN = 1 << 3, FB_FLAG_HIDDEN_REFLECT = 1 << 4, FB_FLAG_HIDDEN_REFRACT = 1 << 5, FB_FLAG_TRANSPARENT_ATTENUATION = 1 << 6,
  FB_FLAG_COMPUTE_SHADOWS = 1 << 7, FB_FLAG_HIDDEN_SHADOWS = 1 << 8, FB_FLAG_LIGHT_ACTIVE = 1 << 9, FB_FLAG_SAMPLING_LIGHT = 1 << 10,
  FB_FLAG_NON_ADSK_LIGHT = 1 << 11, FB_FLAG_SHADOW_PASS = 1 << 12, FB_FLAG_DISABLE = 1 << 13, FB_FLAG_NO_COMPOSITING = 1 << 14,
  FB_FLAG_CUSTOM_PASS_EVAL = 1 << 15, FB_FLAG_CUSTOM_PASS_EVAL_GUARD = 1 << 16
}
 Bit flags used to describe the state and rendering options for render passes. The flags marked as "global" are only used on frame buffer 0, and store state information that is global to all frame buffers. More...
enum  FrameBufferAccumulatorFlagBits {
  FB_ACC_FLAG_NONE = 0, FB_ACC_FLAG_HIDDEN = 1 << 0, FB_ACC_FLAG_FORCE_PROPAGATION = 1 << 1, FB_ACC_FLAG_BLOCK_REFLECTION = 1 << 2,
  FB_ACC_FLAG_BLOCK_REFRACTION = 1 << 3, FB_ACC_FLAG_BLOCK_ALL = 1 << 4
}
 Bit flags that describe the state of frame buffer contributions for the current trace level. The *BLOCK* flags are use for ray-tracing optimization. More...
enum  FrameBufferStateFlagBits {
  FB_STATE_FLAG_NONE = 0, FB_STATE_ALLOCATE_TEMP_DATA = 1 << 0, FB_STATE_PRETEND_NO_HIT = 1 << 1, FB_STATE_TRACED_THROUGH = 1 << 2,
  FB_STATE_NO_MASTERBEAUTY = 1 << 3
}
 Bit flags used to describe internal state of the frame buffer framework. Unlike FrameBufferFlagBits, the flags are stored in a member of FrameBufferState, which exists even when there are no material passes. More...

Functions

bool isVolumePass (int index, PassTypeInfo *pPassTypeInfo)
 Tests whether a given render pass is a volume rendering pass.
MIDataPtr< FrameBufferData > getFrameBufferDataBlock (miState *pState)
 Retrieve the user data block that contains all the frame buffer configuration information for the current camera.
unsigned int getFrameBufferInfo (const miState *const pState, PassTypeInfo *&pPassTypeInfo, FrameBufferInfo *&pFrameBufferInfo)
 Retrieve pass and frame buffer information.
FrameBufferState * getFrameBufferState (const miState *const pState)
 Retrieve state information used for frame buffer management.
miInteger getNonMaterialPassFrameBufferIndex (miState *pState, miInteger pPassNumber)
 Retrieve non material pass frame buffer index.

Enumeration Type Documentation

enum FrameBufferAccumulatorFlagBits

Bit flags that describe the state of frame buffer contributions for the current trace level. The *BLOCK* flags are use for ray-tracing optimization.

Enumerator:
FB_ACC_FLAG_NONE  No flags.
FB_ACC_FLAG_HIDDEN  Indicates that the current ray-material intersection does not contribute.
FB_ACC_FLAG_FORCE_PROPAGATION  Indicates that child rays must be cast even if the hidden flag is on.
FB_ACC_FLAG_BLOCK_REFLECTION  The pass does not require child reflection rays to be cast.
FB_ACC_FLAG_BLOCK_REFRACTION  The pass does not require child refraction rays to be cast.
FB_ACC_FLAG_BLOCK_ALL  The pass does not require any child rays to be cast, including transparency.

enum FrameBufferFlagBits

Bit flags used to describe the state and rendering options for render passes. The flags marked as "global" are only used on frame buffer 0, and store state information that is global to all frame buffers.

Enumerator:
FB_FLAG_NONE  No flags.
FB_FLAG_USE_TRANSPARENCY  The render pass uses transparency.
FB_FLAG_HOLDOUT  The render pass uses holdout.
FB_FLAG_REFLECT_HIDDEN  Hidden objects are visible in reflections for the current render pass.
FB_FLAG_REFRACT_HIDDEN  Hidden objects are visible in refractions for the current render pass.
FB_FLAG_HIDDEN_REFLECT  Hidden objects cast reflections for the current render pass.
FB_FLAG_HIDDEN_REFRACT  Hidden objects cast refractions for the current render pass.
FB_FLAG_TRANSPARENT_ATTENUATION  The render pass is to be modulated by its opacity.
FB_FLAG_COMPUTE_SHADOWS  The renderpass contains shadows.
FB_FLAG_HIDDEN_SHADOWS  Hidden objects cast shadows for in the render pass.
FB_FLAG_LIGHT_ACTIVE  Indicates whether the current light contributes to the render pass.
FB_FLAG_SAMPLING_LIGHT  Indicates that the shader is inside a light sampling loop (global).
FB_FLAG_NON_ADSK_LIGHT  Indicates that the current light shader is not compliant with the SDK (global).
FB_FLAG_SHADOW_PASS  The render pass is illuminated by shadow light differentials.
FB_FLAG_DISABLE  Turn off frame buffer contribution (global), useful for invoking upstream shaders.
FB_FLAG_NO_COMPOSITING  Indicates a render pass type that does not support any form of compositing.
FB_FLAG_CUSTOM_PASS_EVAL  Indicates that the shading engine is currently evaluating custom render pass nodes in forced evaluation mode.
FB_FLAG_CUSTOM_PASS_EVAL_GUARD  Recursion guard for custom render passes in forced evaluation mode.

enum FrameBufferStateFlagBits

Bit flags used to describe internal state of the frame buffer framework. Unlike FrameBufferFlagBits, the flags are stored in a member of FrameBufferState, which exists even when there are no material passes.

Enumerator:
FB_STATE_FLAG_NONE  No flags.
FB_STATE_ALLOCATE_TEMP_DATA  Indicate whether temp data should be allocated on the heap.
FB_STATE_PRETEND_NO_HIT  Result of cutaway opacity calculation.
FB_STATE_TRACED_THROUGH  Indicates whether a transparency ray was cast from the current intersection.
FB_STATE_NO_MASTERBEAUTY  Indicates that the current ray was cast solely for render passes and does not contribute to the master beauty.

Function Documentation

MIDataPtr<FrameBufferData> getFrameBufferDataBlock ( miState *  pState  )

Retrieve the user data block that contains all the frame buffer configuration information for the current camera.

Parameters:
[in] pState the shading state
Returns:
The data block

unsigned int getFrameBufferInfo ( const miState *const   pState,
PassTypeInfo *&  pPassTypeInfo,
FrameBufferInfo *&  pFrameBufferInfo
)

Retrieve pass and frame buffer information.

Parameters:
[in] pState the shading state
[out] pPassTypeInfo pointer to the pass type info shader state
[out] pFrameBufferInfo pointer to the frame buffer info shader state
Returns:
Number of frame buffers

FrameBufferState* getFrameBufferState ( const miState *const   pState  )

Retrieve state information used for frame buffer management.

Parameters:
[in] pState the shading state
Returns:
reference to the frame buffer state structure

miInteger getNonMaterialPassFrameBufferIndex ( miState *  pState,
miInteger  pPassNumber
)

Retrieve non material pass frame buffer index.

Parameters:
[in] pState the shading state
[in] pPassNumber the number of the pass
Returns:
The frame buffer index.

bool isVolumePass ( int  index,
PassTypeInfo *  pPassTypeInfo
) [inline]

Tests whether a given render pass is a volume rendering pass.

Parameters:
[in] index the render pass index
[in] pPassTypeInfo pointer to the pass type info array
Returns:
true if the pass is a volume pass
