Mesh Model

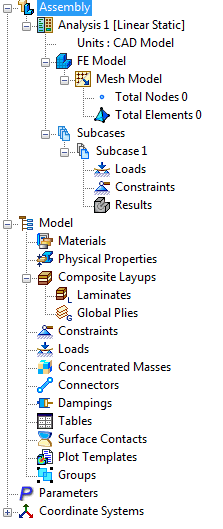

This is the tree sub-entity under FE Model.

Intersecting sketch segments can be combined.

Shells and beams can be combined.

Shells and solids can be combined directly (matching coincident mesh).

Solids and beams can be combined directly (matching coincident mesh).

It contains information about the total number of nodes and elements in a part/assembly.

Right-click on Mesh Model. The following options are available:

• Edit
• Switch To:
  • Global Mesh
  • Mesh Table
• Update All Meshes
• Delete All Meshes
• Display All Meshes
• Hide All Meshes
• Check Quality for all Meshes
• Add Mesh Control
