FBActor is used to link motion data to a character. More...

#include <fbcharacter.h>

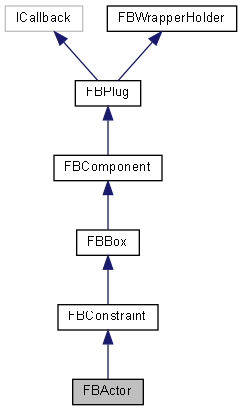

Inheritance diagram for FBActor:

[legend]

Public Member Functions
	FBActor (const char *pName, HIObject pObject=NULL)
	Constructor. More...

virtual void	FBDelete () override
	Actual Actor destructor. More...

virtual bool	Snap (FBRecalcMarkerSetOffset pRecalcOffset)
	Snap the marker set of the actor. More...

void	UpdateValues (FBEvaluateInfo *pEvalInfo)
	Update Internal Values to be corresponding to the Given Evaluate Information. More...

void	SetDefinitionScaleVector (FBSkeletonNodeId pSkeletonId, FBVector3d pScaleVector, bool pSymmetricUpdate=true)
	Set Actor Scaling Definition. More...

void	GetDefinitionScaleVector (FBSkeletonNodeId pSkeletonId, FBVector3d &pScaleVector)
	Get Actor Scaling Definition. More...

void	SetDefinitionRotationVector (FBSkeletonNodeId pSkeletonId, FBVector3d pRotationVector, bool pSymmetricUpdate=true)
	Set Actor Rotation Definition. More...

void	GetDefinitionRotationVector (FBSkeletonNodeId pSkeletonId, FBVector3d &pRotationVector)
	Get Actor Rotation Definition. More...

void	SetDefinitionTranslationVector (FBSkeletonNodeId pSkeletonId, FBVector3d pTranslationVector, bool pSymmetricUpdate=true)
	Set Actor Translation Definition. More...

void	GetDefinitionTranslationVector (FBSkeletonNodeId pSkeletonId, FBVector3d &pTranslationVector)
	Get Actor Translation Definition. More...

void	SetActorTranslation (FBVector3d pTranslationVector)
	Translate Actor, similar to moving the hips of the Actor in the UI. More...

FBSkeletonState *	GetDefaultSkeletonState ()
	Return the Default Skeleton State. More...

FBSkeletonState *	GetCurrentSkeletonState (bool pResetOrientation=false)
	Return the Current Skeleton State. More...

FBModel *	GetLeftGloveReferenceModel ()
	Get the reference model associated with left hand. More...

void	SetLeftGloveReferenceModel (FBModel *pReferenceModel)
	Set a model to be the left glove reference. More...

FBModel *	GetRightGloveReferenceModel ()
	Get the reference model associated with right hand. More...

void	SetRightGloveReferenceModel (FBModel *pReferenceModel)
	Set a model to be the right glove reference. More...

Public Member Functions inherited from FBConstraint
	FBConstraint (const char *pName, HIObject pObject=NULL)
	Constructor. More...

	IObject_Declare (override)

virtual void	ActiveChanged ()
	Notification for Activation Status Change. More...

virtual void	RemoveAllAnimationNodes ()
	Remove animation nodes. More...

virtual void	SetupAllAnimationNodes ()
	Setup animation nodes. More...

virtual void	SnapSuggested ()
	Suggest 'snap'. More...

virtual void	FreezeSuggested ()
	Suggest 'freeze'. More...

virtual bool	Disable (FBModel *pModel)
	Disable constraint on pModel. More...

virtual bool	Enable (FBModel *pModel)
	Enable constraint on pModel. More...

virtual bool	AnimationNodeNotify (FBAnimationNode pAnimationNode, FBEvaluateInfo pEvaluateInfo, FBConstraintInfo *pConstraintInfo)
	Notification callback for connectors. More...

FBAnimationNode *	AnimationNodeOutCreate (kReference pUserId, FBModel pModel, const char pAttribute)
	Animation Node Creations (IN/OUT). More...

FBAnimationNode *	AnimationNodeInCreate (kReference pUserId, FBModel pModel, const char pAttribute)

FBAnimationNode *	AnimationNodeInCreate (kReference pUserId, FBProperty *pProperty)
	Animation Node Creations (IN). More...

virtual void	SaveModelState (FBModel *pModel, bool pS, bool pR, bool pT)
	Save current state of pModel. More...

virtual void	RestoreModelState (FBModel *pModel)
	Restore the saved model state onto pModel. More...

virtual void	FreezeSRT (FBModel *pModel, bool pS, bool pR, bool pT)
	Freeze current model state. More...

virtual FBConstraint *	Clone ()
	Clone the constraint. More...

int	ReferenceGroupGetCount ()
	Return the number of reference groups. More...

int	ReferenceGroupAdd (const char *pGroupName, int pMaxItemCount)
	Add a group of references. More...

const char *	ReferenceGroupGetName (int pGroupIndex)
	Get the name of the reference group. More...

int	ReferenceGroupGetMaxCount (int pGroupIndex)
	Get the maximum number of items that can exist in the reference group in question. More...

FBModel *	ReferenceGet (int pGroupIndex, int pItemIndex=0)
	Get a reference. More...

int	ReferenceGetCount (int pGroupIndex)
	Get number of references in a specified group. More...

bool	ReferenceAdd (int pGroupIndex, FBModel *pModel)
	Add a reference to a specified group. More...

bool	ReferenceRemove (int pGroupIndex, FBModel *pModel)
	Remove a reference to pModel from the group at pGroupIndex. More...

void	ReferenceRemoveAll ()
	Remove All References. More...

virtual bool	ReferenceAddNotify (int pGroupIndex, FBModel *pModel)
	Notification callbacks for when a reference is added or removed. More...

virtual bool	ReferenceRemoveNotify (int pGroupIndex, FBModel *pModel)

virtual bool	DeformerPreNotify (FBModel pModel, FBEvaluateInfo pEvaluateInfo, FBVertex pBBoxMin, FBVertex pBBoxMax)
	Deformation pre-notification function This function pass the evaluation information for deformation (if timing is required). More...

virtual bool	DeformerNotify (FBModel pModel, const FBVertex pSrcVertex, const FBVertex pSrcNormal, int pCount, FBVertex pDstVertex, FBVertex *pDstNormal)
	Deformation notification function. More...

virtual bool	DeformerBind (FBModel *pModel)
	Bind/Unbind pModel to deformation constraint. More...

virtual bool	DeformerUnBind (FBModel *pModel)

virtual bool	FbxStore (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat) override
	Store/Retrieve data to/from FBX files. More...

virtual bool	FbxRetrieve (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat) override

Public Member Functions inherited from FBBox
	FBBox (const char *pName, HIObject pObject=NULL)
	Constructor. More...

virtual FBAnimationNode *	AnimationNodeInCreate (kReference pUserId, const char pName, const char pDataType, bool pIsPublic=false, double pMin=NULL, double pMax=NULL, bool pUserData=false)
	Creation of IN/OUT Animation Nodes. More...

virtual FBAnimationNode *	AnimationNodeOutCreate (kReference pUserId, const char pName, const char pDataType, bool pIsPublic=false, double pMin=NULL, double pMax=NULL, bool pUserData=false)

virtual bool	EvaluateAnimationNodes (FBEvaluateInfo *pEvaluateInfo)
	Evaluation of non TRS nodes that needs to be evaluated. More...

virtual bool	AnimationNodeNotify (FBAnimationNode pAnimationNode, FBEvaluateInfo pEvaluateInfo)
	Notification function for animation thread. More...

virtual bool	ResolveCandidate (FBAnimationNode pAnimationNode, FBEvaluateInfo pEvaluateInfo)
	Function is call when candidate needs to be resolved (like global to local). More...

virtual ECandidateAction	SetGlobalCandidate (FBAnimationNode pAnimationNode, double pData, FBEvaluateInfo *pEvaluateInfo)
	Function is call when a global candidate is set on an animation node. More...

virtual ECandidateAction	SetStdCandidate (FBAnimationNode pAnimationNode, double pData, FBEvaluateInfo *pEvaluateInfo)
	Function is call when a non-global candidate is set on an animation node. More...

virtual bool	AnimationNodeDestroy (FBAnimationNode *pAnimationNode)
	Destroy an animation node. More...

virtual bool	AnimationNodeIsUserData (FBAnimationNode *pAnimationNode)
	Is the animation node user data? More...

virtual void	AnimationNodesOutDisableIfNotWritten (FBEvaluateInfo *pEvaluateInfo)
	This call will disable all out animation nodes from being pull by system (animation thread) for given pEvaluateInfo. More...

virtual FBAnimationNode *	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box. More...

virtual FBAnimationNode *	AnimationNodeOutGet ()

virtual const char *	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'. More...

virtual const char *	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'. More...

	IObject_Declare (override)

virtual int	GetOutConnectorCount () const
	Get the number of animation node outputs for this box. More...

virtual int	GetInConnectorCount () const
	Get the number of animation node inputs for this box. More...

virtual FBAnimationNode *	GetOutConnector (int pIndex) const
	Get the animation node output associated with the given index. More...

virtual FBAnimationNode *	GetInConnector (int pIndex) const
	Get the animation node input associated with the given index. More...

Public Member Functions inherited from FBComponent
	FBComponent (HIObject pObject)
	Constructor. More...

virtual	~FBComponent ()
	Destructor. More...

virtual bool	FBCreate ()
	Open Reality Creation function. More...

virtual void	FBDestroy ()
	Open Reality destruction function. More...

virtual bool	SetHIObject (HIObject pObject, bool pSDKComponent) override
	Assign component to an internal pointer. More...

virtual int	PropertyAdd (FBProperty *pProperty)
	Add a property to the component's property manager. More...

bool	PropertyAddReferenceProperty (FBProperty *pReferenceProperty)
	Add a reference property to the component's property manager. More...

void	PropertyRemove (FBProperty *pProperty)
	Remove a Property from the component's Property manager. More...

void	PropertyGetModifiedList (FBArrayTemplate< FBProperty * > &pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading. More...

FBProperty *	PropertyCreate (const char pName, FBPropertyType pType, const char pDataType, bool pAnimatable, bool pIsUser=false, FBProperty *pReferenceSource=NULL)
	Create user or dynamic property. More...

FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated). More...

void	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags. More...

bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled. More...

void	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags. More...

void	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags. More...

void	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status. More...

bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled. More...

bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, const char pNamespaceName, const char pReplaceTo=NULL, bool pAddRight=true)
	ProcessNamespaceHierarchy. More...

bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, const char pNamespaceName, const char pReplaceTo=NULL, bool pAddRight=true)
	ProcessObjectNamespace. More...

virtual const char *	ClassName () override
	Get the class name. More...

virtual bool	UseCustomPropertyViewSet () const
	Use the custom property viewSet or not. More...

const char *	GetFullName (void)
	Get the full name. More...

void	SetOwnerNamespace (FBNamespace *pOwnerNSObj)
	Set the owner Namespace object. More...

FBNamespace *	GetOwnerNamespace (void)
	Get the owner Namespace object. More...

FBFileReference *	GetOwnerFileReference (void)
	Get the owner FileReference object. More...

void	HardSelect ()
	HardSelect. More...

virtual bool	Is (int pTypeId) override
	Returns true if object is of type TypeId. More...

virtual int	GetTypeId () override
	GetTypeId( int pTypeId ) More...

Public Member Functions inherited from FBWrapperHolder
FBScriptWrapper *	GetWrapper ()
	Return the wrapper interface of this FBObject. More...

void	AddWrapper (FBScriptWrapper *)

void	RemoveWrapper (FBScriptWrapper *)

Public Attributes
FBPropertyMarkerSet	MarkerSet
	Read Write Property: Associated marker set. More...

FBPropertyMarkerSet	OutputMarkerSet
	Read Write Property: Associated output marker set. More...

FBPropertyColor	BodyColor
	Read Write Property: The color of the body of the actor. More...

FBPropertyColor	SkeletonColor
	Read Write Property: The color of the skeleton of the actor. More...

FBPropertyColor	PivotColor
	Read Write Property: The color of the pivot points of the actor. More...

FBPropertyDouble	MarkerSetSize
	Read Write Property: The size of the markers of the actor. More...

FBPropertyDouble	PivotSize
	Read Write Property: The size of the pivot points of the actor. More...

FBPropertyVector3d	HipsPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	LeftHipPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	LeftKneePosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	LeftAnklePosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	LeftFootPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	RightHipPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	RightKneePosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	RightAnklePosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	RightFootPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	WaistPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	ChestPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	LeftCollarPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	LeftShoulderPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	LeftElbowPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	LeftWristPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	RightCollarPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	RightShoulderPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	RightElbowPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	RightWristPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	NeckPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyVector3d	HeadPosition
	Read Write Property: Body part pivot of the actor. More...

FBPropertyBool	Visibility
	Read Write Property: Show or Hide the Actor Body. More...

FBPropertyBool	SkeletonVisibility
	Read Write Property: Show or Hide the Skeleton. More...

FBPropertyBool	PivotPointsVisibility
	Read Write Property: Show or Hide the Pivot Points. More...

FBPropertyAnimatableDouble	LeftHandIndexIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	LeftHandIndexMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	LeftHandIndexRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	LeftHandIndexPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	LeftHandMiddleIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	LeftHandMiddleMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	LeftHandMiddleRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	LeftHandMiddlePinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	LeftHandRingIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	LeftHandRingMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	LeftHandRingRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	LeftHandRingPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	LeftHandPinkyIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	LeftHandPinkyMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	LeftHandPinkyRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	LeftHandPinkyPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	RightHandIndexIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	RightHandIndexMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	RightHandIndexRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	RightHandIndexPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	RightHandMiddleIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	RightHandMiddleMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	RightHandMiddleRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	RightHandMiddlePinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	RightHandRingIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	RightHandRingMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	RightHandRingRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	RightHandRingPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	RightHandPinkyIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	RightHandPinkyMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	RightHandPinkyRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	RightHandPinkyPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBPropertyAnimatableDouble	FKFingerMultiplier
	Read Write Property: Used to augment the amount of FK propagation for unmarkered intermediate finger phalanges. More...

FBPropertyAnimatableDouble	FKFingerTipMultiplier
	Read Write Property: Used to augment the amount of FK propagation for unmarkered finger tip phalanges. More...

FBPropertyAnimatableDouble	FKThumbTipMultiplier
	Read Write Property: Used to augment the amount of FK propagation for unmarkered thumb tip phalanges. More...

FBPropertyAnimatableBool	HumanFingerLimits
	Read Write Property: Enables/Disables human finger limits during actor solve. More...

FBPropertyAnimatableVector3d	HeadOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	HeadOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	NeckOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	NeckOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	ChestOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	ChestOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftCollarOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftCollarOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightCollarOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightCollarOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftShoulderOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftShoulderOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightShoulderOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightShoulderOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftElbowOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftElbowOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightElbowOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightElbowOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftWristOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftWristOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightWristOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightWristOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	WaistOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	WaistOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	HipsOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	HipsOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftHipOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftHipOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightHipOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightHipOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftKneeOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftKneeOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightKneeOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightKneeOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftAnkleOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftAnkleOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightAnkleOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightAnkleOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftFootOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftFootOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightFootOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightFootOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftThumbAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftThumbAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftThumbBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftThumbBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftThumbCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftThumbCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftIndexAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftIndexAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftIndexBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftIndexBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftIndexCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftIndexCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftMiddleAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftMiddleAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftMiddleBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftMiddleBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftMiddleCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftMiddleCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftRingAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftRingAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftRingBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftRingBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftRingCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftRingCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftPinkyAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftPinkyAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftPinkyBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftPinkyBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftPinkyCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	LeftPinkyCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightThumbAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightThumbAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightThumbBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightThumbBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightThumbCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightThumbCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightIndexAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightIndexAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightIndexBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightIndexBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightIndexCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightIndexCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightMiddleAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightMiddleAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightMiddleBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightMiddleBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightMiddleCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightMiddleCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightRingAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightRingAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightRingBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightRingBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightRingCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightRingCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightPinkyAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightPinkyAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightPinkyBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightPinkyBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightPinkyCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve More...

FBPropertyAnimatableVector3d	RightPinkyCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve More...

FBPropertyBool	ManipulateOffsets
	Read Write Property: Flag to compute offsets while manipulating. If it is set to false, the manipulator is re-snapping as before. If it is set to true, offsets properties (T and R) are computed and candidated instead. More...

FBPropertyBool	IKManip
	Read Write Property: Access to the IK Manip mode. This property is shared for all actors. More...

FBPropertyBool	SymmetryEditTranslation
	Read Write Property: Symmetry Edit (Translation) mode state. Only effective when IKManip property is set to false. This property is shared for all actors. More...

FBPropertyBool	SymmetryEditRotation
	Read Write Property: Symmetry Edit (Rotation) mode state. Only effective when IKManip property is set to false. This property is shared for all actors. More...

FBPropertyBool	SymmetryEditScaling
	Read Write Property: Symmetry Edit (Scaling) mode state. Only effective when IKManip property is set to false. This property is shared for all actors. More...

Public Attributes inherited from FBConstraint
FBPropertyBool	Deformer
	Read Write Property: Is a deformer constraint? More...

FBPropertyBool	HasLayout
	Read Write Property: Does the constraint have a layout? More...

FBPropertyString	Description
	Read Write Property: Long description of constraint. More...

FBPropertyBool	Active
	Read Write Property: Active state. More...

FBPropertyBool	Lock
	Read Write Property: Lock state. More...

FBPropertyAction	Snap
	Function Property: Snap constraint. More...

FBPropertyAnimatableDouble	Weight
	Read Write Property: Weight of constraint. More...

Public Attributes inherited from FBBox
const char *	UniqueName
	internal Unique name. More...

FBPropertyBool	Animatable
	Read Write Property: Is the box animatable. More...

FBPropertyBool	Live
	Read Write Property: Is live? More...

FBPropertyBool	RecordMode
	Read Write Property: Is recording? More...

Public Attributes inherited from FBComponent
FBPropertyManager	PropertyList
	Read Only Property: Manages all of the properties for the component. More...

FBPropertyListComponent	Components
	List: List of components. More...

FBPropertyListComponent	Parents
	List: Parents. More...

FBPropertyBool	Selected
	Read Write Property: Selected property. More...

FBPropertyString	Name
	Read Write Property: Unique name of object. More...

FBPropertyString	LongName
	Read Write Property: Name and namespace for object. More...

FBPropertyFolder	Folder
	Read Write Property: The folder that contain this component. More...

Additional Inherited Members
Public Types inherited from FBBox
enum	ECandidateAction { eCandidateAccept , eCandidateIntercept , eCandidateInterceptAfterEvaluation }
	Resolving action for candidates. More...

Static Public Member Functions inherited from FBComponent
static int	GetInternalClassId ()

static void	FBComponentSetName (FBComponent pObject, const char pName)

static const char *	FBComponentGetName (FBComponent *pObject)

static void	FBComponentSetLongName (FBComponent pObject, const char pName)

static const char *	FBComponentGetLongName (FBComponent *pObject)

Static Public Attributes inherited from FBComponent
static int	TypeInfo
	Contains the Type information of the object. More...

Protected Member Functions inherited from FBPlug
bool	IsSDKComponent ()
	Return whether or not item is an SDK component. More...

bool	ConnectSrc (FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection. More...

bool	ConnectDst (FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection. More...

bool	ConnectSrcAt (int pDst_SrcIndex, FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection. More...

bool	ConnectDstAt (int pSrc_DstIndex, FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection. More...

bool	DisconnectDst (FBPlug *pDst)
	Remove a destination connection. More...

bool	DisconnectSrc (FBPlug *pSrc)
	Remove a source connection. More...

void	DisconnectAllSrc ()
	Remove all source connections. More...

void	DisconnectAllDst ()
	Remove all destination connections. More...

bool	DisconnectDstAt (int pIndex)
	Remove a destination connection at a specified index. More...

bool	DisconnectSrcAt (int pIndex)
	Remove a source connection at a specified index. More...

bool	ReplaceDstAt (int pIndex, FBPlug *pDst)
	Replace a destination connection at a specified index. More...

bool	ReplaceSrcAt (int pIndex, FBPlug *pSrc)
	Replace a source connection at a specified index. More...

bool	SwapSrc (int pIndexA, int pIndexB)
	Swap source connection at index A with source connection at index B. More...

bool	MoveSrcAt (int pIndex, int pAtIndex)
	Move source connection at pIndex to pAtIndex. More...

bool	MoveSrcAt (FBPlug pSrc, FBPlug pAtSrc)
	Move source connection pSrc to the position of pAtSrc. More...

int	GetSrcCount ()
	Get source connection count. More...

FBPlug *	GetSrc (int pIndex)
	Get a source connection's plug at specified index. More...

FBConnectionType	GetSrcType (int pIndex)
	Get a source connection's type at specified index. More...

int	GetDstCount ()
	Get destination connection count. More...

FBPlug *	GetDst (int pIndex)
	Get a destination connection's plug at specified index. More...

FBConnectionType	GetDstType (int pIndex)
	Get a destination connection's type at specified index. More...

bool	BeginChange ()
	Begins a change on multiple plugs. More...

void	EndChange ()
	Ends a change on multiple plugs. More...

void	SetSelfModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's self modification flag. More...

bool	GetSelfModified (FBPlugModificationFlag pFlag)
	Tell if the plug's self has changed. More...

void	SetContentModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's owned property/object's modification flag. More...

bool	GetContentModified (FBPlugModificationFlag pFlag)
	Tell if the plug's content has changed. More...

int	GetPlugConnectionModifiedList (FBPlugList &pPlugList, FBPlugModificationFlag pConnectionModificatonFlag, bool pAddRemove)
	Get plug's modified src/dst property/object connection added/removed List. More...

bool	RevertModification (FBPlugModificationFlag pFlag=kFBAllModifiedMask)
	Revert the plug's modification to original status. More...

void	SetStatusFlag (FBPlugStatusFlag pStatus, bool pValue)
	Set the plug's status flag. More...

bool	GetStatusFlag (FBPlugStatusFlag pStatus) const
	Tell if the plug's status has changed. More...

FBPlug *	GetOwner ()
	Get the owner of this plug. More...

FBPlug *	GetOwned (int pIndex)
	Get the owned plug at specified index. More...

int	GetOwnedCount ()
	Get the owned plug count. More...

virtual bool	PlugDataNotify (FBConnectionAction pAction, FBPlug pThis, void pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugDataNotify when overloaded is equivalent of FBSystem.OnConnectionDataNotify but in the context of the derived object only. More...

virtual bool	PlugStateNotify (FBConnectionAction pAction, FBPlug pThis, void pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugStateNotify when overloaded is equivalent of FBSystem.OnConnectionStateNotify but in the context of the derived object only. More...

virtual bool	PlugNotify (FBConnectionAction pAction, FBPlug pThis, int pIndex, FBPlug pPlug=NULL, FBConnectionType pConnectionType=kFBConnectionTypeNone, FBPlug *pNewPlug=NULL)
	PlugNotify when overloaded is equivalent of FBSystem.OnConnectionNotify but in the context of the derived object only. More...

Static Protected Member Functions inherited from FBPlug
static int	GetInternalClassId ()
	Internal class Id. More...

Protected Attributes inherited from FBPlug
bool	mAllocated
	Contain the Allocation State of the Component. More...

HIObject	mObject
	Handle on the Plug. More...

bool	mSDKComponent
	bool Plug is an SDK component. More...

Static Protected Attributes inherited from FBPlug
static const char *	ClassGroupName
	ClassGroupName of the object. More...

static int	TypeInfo
	TypeInfo. More...

static int	mGlobalTypeInfo
	Represente the Type Index. More...

Detailed Description

FBActor is used to link motion data to a character.

In MotionBuilder, an actor is a model used to link captured motion data to a character. Use functions in FBActor to set the body color, skeleton color, pivot color, marker size, pivot size, pivot information, etc. on an actor.

These classes are under development and may change dramatically between versions.

To obtain the list of actors present in a scene, you need to create an instance of class FBSystem, to obtain the current scene. The FBScene object holds the list of actors in the property Actors.

FBSystem lSystem;
FBScene* lScene = lSystem.Scene;
for( int lIdx = 0; lIdx < lScene->Actors.GetCount(); ++lIdx )
{
    FBTrace( "Actor[%d]: '%s'\n", lIdx, (char*)lScene->Actors[lIdx] );
}

The current actor selected in the Character tool can be obtained via the FBApplication object.

FBApplication lApplication;
FBActor* lActor = lApplication.CurrentActor;
if( lActor )
{
    FBTrace( "Current actor is: '%s'\n", (char*)lActor->Name );
}
else
{
    FBTrace( "No actor currently selected\n" );
}

Definition at line 988 of file fbcharacter.h.

Constructor & Destructor Documentation

◆ FBActor()

FBActor	(	const char *	pName,
		HIObject	pObject = `NULL`
	)

Constructor.

Parameters

pName	Name of new actor.
pObject	For internal use only. This parameter does not need to be specified by the developer.

Member Function Documentation

◆ FBDelete()

virtual void FBDelete ( )

overridevirtual

Actual Actor destructor.

This method is used to delete the actual actor object represented by an instance of FBActor.

Reimplemented from FBComponent.

◆ GetCurrentSkeletonState()

FBSkeletonState* GetCurrentSkeletonState ( bool pResetOrientation = false )

Return the Current Skeleton State.

Parameters

pResetOrientation When set to true, all rotations in the state will be reset to characterization values.

Returns: Current Skeleton State

Note: Usage of this function can be found in script sample /bin/config/Scripts/Samples/Character/CharacterMarkerSetFromActor.py

◆ GetDefaultSkeletonState()

FBSkeletonState* GetDefaultSkeletonState ( )

Return the Default Skeleton State.

Returns: Default Skeleton State

◆ GetDefinitionRotationVector()

void GetDefinitionRotationVector	(	FBSkeletonNodeId	pSkeletonId,
		FBVector3d &	pRotationVector
	)

Get Actor Rotation Definition.

Only effective when IKManip property is set to false.

Parameters

pSkeletonId Skeleton Node Id

Return values

pRotationVector Actor Rotation Definition for the given ID

◆ GetDefinitionScaleVector()

void GetDefinitionScaleVector	(	FBSkeletonNodeId	pSkeletonId,
		FBVector3d &	pScaleVector
	)

Get Actor Scaling Definition.

Parameters

pSkeletonId Skeleton Node Id

Return values

pScaleVector Actor Scaling Definition for the given ID

◆ GetDefinitionTranslationVector()

void GetDefinitionTranslationVector	(	FBSkeletonNodeId	pSkeletonId,
		FBVector3d &	pTranslationVector
	)

Get Actor Translation Definition.

Only effective when IKManip property is set to false.

Parameters

pSkeletonId Skeleton Node Id

Return values

pTranslationVector Actor Translation Definition for the given ID

◆ GetLeftGloveReferenceModel()

FBModel* GetLeftGloveReferenceModel ( )

Get the reference model associated with left hand.

Returns: The reference model associated with the left hand.

◆ GetRightGloveReferenceModel()

FBModel* GetRightGloveReferenceModel ( )

Get the reference model associated with right hand.

Returns: The reference model associated with the right hand.

◆ SetActorTranslation()

void SetActorTranslation ( FBVector3d pTranslationVector )

Translate Actor, similar to moving the hips of the Actor in the UI.

Only effective when IKManip property is set to false.

Parameters

pTranslationVector Will move the entire Actor to pTranslationVector coordinate

◆ SetDefinitionRotationVector()

void SetDefinitionRotationVector	(	FBSkeletonNodeId	pSkeletonId,
		FBVector3d	pRotationVector,
		bool	pSymmetricUpdate = `true`
	)

Set Actor Rotation Definition.

Only effective when IKManip property is set to false.

Parameters

pSkeletonId	Skeleton Node Id
pRotationVector	Actor Rotation value for the given ID
pSymmetricUpdate	Update right and left part at the same time

◆ SetDefinitionScaleVector()

void SetDefinitionScaleVector	(	FBSkeletonNodeId	pSkeletonId,
		FBVector3d	pScaleVector,
		bool	pSymmetricUpdate = `true`
	)

Set Actor Scaling Definition.

Parameters

pSkeletonId	Skeleton Node Id
pScaleVector	Actor Scaling value for the given ID
pSymmetricUpdate	Update right and left part at the same time

◆ SetDefinitionTranslationVector()

void SetDefinitionTranslationVector	(	FBSkeletonNodeId	pSkeletonId,
		FBVector3d	pTranslationVector,
		bool	pSymmetricUpdate = `true`
	)

Set Actor Translation Definition.

Only effective when IKManip property is set to false.

Parameters

pSkeletonId	Skeleton Node Id
pTranslationVector	Actor Translation value for the given ID
pSymmetricUpdate	Update right and left part at the same time

◆ SetLeftGloveReferenceModel()

void SetLeftGloveReferenceModel ( FBModel * pReferenceModel )

Set a model to be the left glove reference.

Parameters

pReferenceModel Model to be the left glove reference.

◆ SetRightGloveReferenceModel()

void SetRightGloveReferenceModel ( FBModel * pReferenceModel )

Set a model to be the right glove reference.

Parameters

pReferenceModel Model to be the right glove reference.

◆ Snap()

virtual bool Snap ( FBRecalcMarkerSetOffset pRecalcOffset )

virtual

Snap the marker set of the actor.

Returns: True if the operation completed successfully.

◆ UpdateValues()

void UpdateValues ( FBEvaluateInfo * pEvalInfo )

Update Internal Values to be corresponding to the Given Evaluate Information.

Parameters

pEvalInfo Evaluate Info of the Values

Member Data Documentation

◆ BodyColor

FBPropertyColor BodyColor

Read Write Property: The color of the body of the actor.

Definition at line 1008 of file fbcharacter.h.

◆ ChestOffsetR

FBPropertyAnimatableVector3d ChestOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1091 of file fbcharacter.h.

◆ ChestOffsetT

FBPropertyAnimatableVector3d ChestOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1090 of file fbcharacter.h.

◆ ChestPosition

FBPropertyVector3d ChestPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1024 of file fbcharacter.h.

◆ FKFingerMultiplier

FBPropertyAnimatableDouble FKFingerMultiplier

Read Write Property: Used to augment the amount of FK propagation for unmarkered intermediate finger phalanges.

Definition at line 1079 of file fbcharacter.h.

◆ FKFingerTipMultiplier

FBPropertyAnimatableDouble FKFingerTipMultiplier

Read Write Property: Used to augment the amount of FK propagation for unmarkered finger tip phalanges.

Definition at line 1080 of file fbcharacter.h.

◆ FKThumbTipMultiplier

FBPropertyAnimatableDouble FKThumbTipMultiplier

Read Write Property: Used to augment the amount of FK propagation for unmarkered thumb tip phalanges.

Definition at line 1081 of file fbcharacter.h.

◆ HeadOffsetR

FBPropertyAnimatableVector3d HeadOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1085 of file fbcharacter.h.

◆ HeadOffsetT

FBPropertyAnimatableVector3d HeadOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1084 of file fbcharacter.h.

◆ HeadPosition

FBPropertyVector3d HeadPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1034 of file fbcharacter.h.

◆ HipsOffsetR

FBPropertyAnimatableVector3d HipsOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1121 of file fbcharacter.h.

◆ HipsOffsetT

FBPropertyAnimatableVector3d HipsOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1120 of file fbcharacter.h.

◆ HipsPosition

FBPropertyVector3d HipsPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1014 of file fbcharacter.h.

◆ HumanFingerLimits

FBPropertyAnimatableBool HumanFingerLimits

Read Write Property: Enables/Disables human finger limits during actor solve.

Definition at line 1082 of file fbcharacter.h.

◆ IKManip

FBPropertyBool IKManip

Read Write Property: Access to the IK Manip mode. This property is shared for all actors.

Definition at line 1219 of file fbcharacter.h.

◆ LeftAnkleOffsetR

FBPropertyAnimatableVector3d LeftAnkleOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1136 of file fbcharacter.h.

◆ LeftAnkleOffsetT

FBPropertyAnimatableVector3d LeftAnkleOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1135 of file fbcharacter.h.

◆ LeftAnklePosition

FBPropertyVector3d LeftAnklePosition

Read Write Property: Body part pivot of the actor.

Definition at line 1017 of file fbcharacter.h.

◆ LeftCollarOffsetR

FBPropertyAnimatableVector3d LeftCollarOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1094 of file fbcharacter.h.

◆ LeftCollarOffsetT

FBPropertyAnimatableVector3d LeftCollarOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1093 of file fbcharacter.h.

◆ LeftCollarPosition

FBPropertyVector3d LeftCollarPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1025 of file fbcharacter.h.

◆ LeftElbowOffsetR

FBPropertyAnimatableVector3d LeftElbowOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1106 of file fbcharacter.h.

◆ LeftElbowOffsetT

FBPropertyAnimatableVector3d LeftElbowOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1105 of file fbcharacter.h.

◆ LeftElbowPosition

FBPropertyVector3d LeftElbowPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1027 of file fbcharacter.h.

◆ LeftFootOffsetR

FBPropertyAnimatableVector3d LeftFootOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1142 of file fbcharacter.h.

◆ LeftFootOffsetT

FBPropertyAnimatableVector3d LeftFootOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1141 of file fbcharacter.h.

◆ LeftFootPosition

FBPropertyVector3d LeftFootPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1018 of file fbcharacter.h.

◆ LeftHandIndexIndex

FBPropertyAnimatableDouble LeftHandIndexIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1039 of file fbcharacter.h.

◆ LeftHandIndexMiddle

FBPropertyAnimatableDouble LeftHandIndexMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1040 of file fbcharacter.h.

◆ LeftHandIndexPinky

FBPropertyAnimatableDouble LeftHandIndexPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1042 of file fbcharacter.h.

◆ LeftHandIndexRing

FBPropertyAnimatableDouble LeftHandIndexRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1041 of file fbcharacter.h.

◆ LeftHandMiddleIndex

FBPropertyAnimatableDouble LeftHandMiddleIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1044 of file fbcharacter.h.

◆ LeftHandMiddleMiddle

FBPropertyAnimatableDouble LeftHandMiddleMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1045 of file fbcharacter.h.

◆ LeftHandMiddlePinky

FBPropertyAnimatableDouble LeftHandMiddlePinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1047 of file fbcharacter.h.

◆ LeftHandMiddleRing

FBPropertyAnimatableDouble LeftHandMiddleRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1046 of file fbcharacter.h.

◆ LeftHandPinkyIndex

FBPropertyAnimatableDouble LeftHandPinkyIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1054 of file fbcharacter.h.

◆ LeftHandPinkyMiddle

FBPropertyAnimatableDouble LeftHandPinkyMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1055 of file fbcharacter.h.

◆ LeftHandPinkyPinky

FBPropertyAnimatableDouble LeftHandPinkyPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1057 of file fbcharacter.h.

◆ LeftHandPinkyRing

FBPropertyAnimatableDouble LeftHandPinkyRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1056 of file fbcharacter.h.

◆ LeftHandRingIndex

FBPropertyAnimatableDouble LeftHandRingIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1049 of file fbcharacter.h.

◆ LeftHandRingMiddle

FBPropertyAnimatableDouble LeftHandRingMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1050 of file fbcharacter.h.

◆ LeftHandRingPinky

FBPropertyAnimatableDouble LeftHandRingPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1052 of file fbcharacter.h.

◆ LeftHandRingRing

FBPropertyAnimatableDouble LeftHandRingRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1051 of file fbcharacter.h.

◆ LeftHipOffsetR

FBPropertyAnimatableVector3d LeftHipOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1124 of file fbcharacter.h.

◆ LeftHipOffsetT

FBPropertyAnimatableVector3d LeftHipOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1123 of file fbcharacter.h.

◆ LeftHipPosition

FBPropertyVector3d LeftHipPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1015 of file fbcharacter.h.

◆ LeftIndexAOffsetR

FBPropertyAnimatableVector3d LeftIndexAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1155 of file fbcharacter.h.

◆ LeftIndexAOffsetT

FBPropertyAnimatableVector3d LeftIndexAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1154 of file fbcharacter.h.

◆ LeftIndexBOffsetR

FBPropertyAnimatableVector3d LeftIndexBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1157 of file fbcharacter.h.

◆ LeftIndexBOffsetT

FBPropertyAnimatableVector3d LeftIndexBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1156 of file fbcharacter.h.

◆ LeftIndexCOffsetR

FBPropertyAnimatableVector3d LeftIndexCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1159 of file fbcharacter.h.

◆ LeftIndexCOffsetT

FBPropertyAnimatableVector3d LeftIndexCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1158 of file fbcharacter.h.

◆ LeftKneeOffsetR

FBPropertyAnimatableVector3d LeftKneeOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1130 of file fbcharacter.h.

◆ LeftKneeOffsetT

FBPropertyAnimatableVector3d LeftKneeOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1129 of file fbcharacter.h.

◆ LeftKneePosition

FBPropertyVector3d LeftKneePosition

Read Write Property: Body part pivot of the actor.

Definition at line 1016 of file fbcharacter.h.

◆ LeftMiddleAOffsetR

FBPropertyAnimatableVector3d LeftMiddleAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1162 of file fbcharacter.h.

◆ LeftMiddleAOffsetT

FBPropertyAnimatableVector3d LeftMiddleAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1161 of file fbcharacter.h.

◆ LeftMiddleBOffsetR

FBPropertyAnimatableVector3d LeftMiddleBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1164 of file fbcharacter.h.

◆ LeftMiddleBOffsetT

FBPropertyAnimatableVector3d LeftMiddleBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1163 of file fbcharacter.h.

◆ LeftMiddleCOffsetR

FBPropertyAnimatableVector3d LeftMiddleCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1166 of file fbcharacter.h.

◆ LeftMiddleCOffsetT

FBPropertyAnimatableVector3d LeftMiddleCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1165 of file fbcharacter.h.

◆ LeftPinkyAOffsetR

FBPropertyAnimatableVector3d LeftPinkyAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1176 of file fbcharacter.h.

◆ LeftPinkyAOffsetT

FBPropertyAnimatableVector3d LeftPinkyAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1175 of file fbcharacter.h.

◆ LeftPinkyBOffsetR

FBPropertyAnimatableVector3d LeftPinkyBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1178 of file fbcharacter.h.

◆ LeftPinkyBOffsetT

FBPropertyAnimatableVector3d LeftPinkyBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1177 of file fbcharacter.h.

◆ LeftPinkyCOffsetR

FBPropertyAnimatableVector3d LeftPinkyCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1180 of file fbcharacter.h.

◆ LeftPinkyCOffsetT

FBPropertyAnimatableVector3d LeftPinkyCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1179 of file fbcharacter.h.

◆ LeftRingAOffsetR

FBPropertyAnimatableVector3d LeftRingAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1169 of file fbcharacter.h.

◆ LeftRingAOffsetT

FBPropertyAnimatableVector3d LeftRingAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1168 of file fbcharacter.h.

◆ LeftRingBOffsetR

FBPropertyAnimatableVector3d LeftRingBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1171 of file fbcharacter.h.

◆ LeftRingBOffsetT

FBPropertyAnimatableVector3d LeftRingBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1170 of file fbcharacter.h.

◆ LeftRingCOffsetR

FBPropertyAnimatableVector3d LeftRingCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1173 of file fbcharacter.h.

◆ LeftRingCOffsetT

FBPropertyAnimatableVector3d LeftRingCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1172 of file fbcharacter.h.

◆ LeftShoulderOffsetR

FBPropertyAnimatableVector3d LeftShoulderOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1100 of file fbcharacter.h.

◆ LeftShoulderOffsetT

FBPropertyAnimatableVector3d LeftShoulderOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1099 of file fbcharacter.h.

◆ LeftShoulderPosition

FBPropertyVector3d LeftShoulderPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1026 of file fbcharacter.h.

◆ LeftThumbAOffsetR

FBPropertyAnimatableVector3d LeftThumbAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1148 of file fbcharacter.h.

◆ LeftThumbAOffsetT

FBPropertyAnimatableVector3d LeftThumbAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1147 of file fbcharacter.h.

◆ LeftThumbBOffsetR

FBPropertyAnimatableVector3d LeftThumbBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1150 of file fbcharacter.h.

◆ LeftThumbBOffsetT

FBPropertyAnimatableVector3d LeftThumbBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1149 of file fbcharacter.h.

◆ LeftThumbCOffsetR

FBPropertyAnimatableVector3d LeftThumbCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1152 of file fbcharacter.h.

◆ LeftThumbCOffsetT

FBPropertyAnimatableVector3d LeftThumbCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1151 of file fbcharacter.h.

◆ LeftWristOffsetR

FBPropertyAnimatableVector3d LeftWristOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1112 of file fbcharacter.h.

◆ LeftWristOffsetT

FBPropertyAnimatableVector3d LeftWristOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1111 of file fbcharacter.h.

◆ LeftWristPosition

FBPropertyVector3d LeftWristPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1028 of file fbcharacter.h.

◆ ManipulateOffsets

FBPropertyBool ManipulateOffsets

Read Write Property: Flag to compute offsets while manipulating. If it is set to false, the manipulator is re-snapping as before. If it is set to true, offsets properties (T and R) are computed and candidated instead.

Definition at line 1217 of file fbcharacter.h.

◆ MarkerSet

FBPropertyMarkerSet MarkerSet

Read Write Property: Associated marker set.

Definition at line 1005 of file fbcharacter.h.

◆ MarkerSetSize

FBPropertyDouble MarkerSetSize

Read Write Property: The size of the markers of the actor.

Definition at line 1011 of file fbcharacter.h.

◆ NeckOffsetR

FBPropertyAnimatableVector3d NeckOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1088 of file fbcharacter.h.

◆ NeckOffsetT

FBPropertyAnimatableVector3d NeckOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1087 of file fbcharacter.h.

◆ NeckPosition

FBPropertyVector3d NeckPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1033 of file fbcharacter.h.

◆ OutputMarkerSet

FBPropertyMarkerSet OutputMarkerSet

Read Write Property: Associated output marker set.

Definition at line 1006 of file fbcharacter.h.

◆ PivotColor

FBPropertyColor PivotColor

Read Write Property: The color of the pivot points of the actor.

Definition at line 1010 of file fbcharacter.h.

◆ PivotPointsVisibility

FBPropertyBool PivotPointsVisibility

Read Write Property: Show or Hide the Pivot Points.

Definition at line 1037 of file fbcharacter.h.

◆ PivotSize

FBPropertyDouble PivotSize

Read Write Property: The size of the pivot points of the actor.

Definition at line 1012 of file fbcharacter.h.

◆ RightAnkleOffsetR

FBPropertyAnimatableVector3d RightAnkleOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1139 of file fbcharacter.h.

◆ RightAnkleOffsetT

FBPropertyAnimatableVector3d RightAnkleOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1138 of file fbcharacter.h.

◆ RightAnklePosition

FBPropertyVector3d RightAnklePosition

Read Write Property: Body part pivot of the actor.

Definition at line 1021 of file fbcharacter.h.

◆ RightCollarOffsetR

FBPropertyAnimatableVector3d RightCollarOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1097 of file fbcharacter.h.

◆ RightCollarOffsetT

FBPropertyAnimatableVector3d RightCollarOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1096 of file fbcharacter.h.

◆ RightCollarPosition

FBPropertyVector3d RightCollarPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1029 of file fbcharacter.h.

◆ RightElbowOffsetR

FBPropertyAnimatableVector3d RightElbowOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1109 of file fbcharacter.h.

◆ RightElbowOffsetT

FBPropertyAnimatableVector3d RightElbowOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1108 of file fbcharacter.h.

◆ RightElbowPosition

FBPropertyVector3d RightElbowPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1031 of file fbcharacter.h.

◆ RightFootOffsetR

FBPropertyAnimatableVector3d RightFootOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1145 of file fbcharacter.h.

◆ RightFootOffsetT

FBPropertyAnimatableVector3d RightFootOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1144 of file fbcharacter.h.

◆ RightFootPosition

FBPropertyVector3d RightFootPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1022 of file fbcharacter.h.

◆ RightHandIndexIndex

FBPropertyAnimatableDouble RightHandIndexIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1059 of file fbcharacter.h.

◆ RightHandIndexMiddle

FBPropertyAnimatableDouble RightHandIndexMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1060 of file fbcharacter.h.

◆ RightHandIndexPinky

FBPropertyAnimatableDouble RightHandIndexPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1062 of file fbcharacter.h.

◆ RightHandIndexRing

FBPropertyAnimatableDouble RightHandIndexRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1061 of file fbcharacter.h.

◆ RightHandMiddleIndex

FBPropertyAnimatableDouble RightHandMiddleIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1064 of file fbcharacter.h.

◆ RightHandMiddleMiddle

FBPropertyAnimatableDouble RightHandMiddleMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1065 of file fbcharacter.h.

◆ RightHandMiddlePinky

FBPropertyAnimatableDouble RightHandMiddlePinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1067 of file fbcharacter.h.

◆ RightHandMiddleRing

FBPropertyAnimatableDouble RightHandMiddleRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1066 of file fbcharacter.h.

◆ RightHandPinkyIndex

FBPropertyAnimatableDouble RightHandPinkyIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1074 of file fbcharacter.h.

◆ RightHandPinkyMiddle

FBPropertyAnimatableDouble RightHandPinkyMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1075 of file fbcharacter.h.

◆ RightHandPinkyPinky

FBPropertyAnimatableDouble RightHandPinkyPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1077 of file fbcharacter.h.

◆ RightHandPinkyRing

FBPropertyAnimatableDouble RightHandPinkyRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1076 of file fbcharacter.h.

◆ RightHandRingIndex

FBPropertyAnimatableDouble RightHandRingIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1069 of file fbcharacter.h.

◆ RightHandRingMiddle

FBPropertyAnimatableDouble RightHandRingMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1070 of file fbcharacter.h.

◆ RightHandRingPinky

FBPropertyAnimatableDouble RightHandRingPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1072 of file fbcharacter.h.

◆ RightHandRingRing

FBPropertyAnimatableDouble RightHandRingRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

Definition at line 1071 of file fbcharacter.h.

◆ RightHipOffsetR

FBPropertyAnimatableVector3d RightHipOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1127 of file fbcharacter.h.

◆ RightHipOffsetT

FBPropertyAnimatableVector3d RightHipOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1126 of file fbcharacter.h.

◆ RightHipPosition

FBPropertyVector3d RightHipPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1019 of file fbcharacter.h.

◆ RightIndexAOffsetR

FBPropertyAnimatableVector3d RightIndexAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1190 of file fbcharacter.h.

◆ RightIndexAOffsetT

FBPropertyAnimatableVector3d RightIndexAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1189 of file fbcharacter.h.

◆ RightIndexBOffsetR

FBPropertyAnimatableVector3d RightIndexBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1192 of file fbcharacter.h.

◆ RightIndexBOffsetT

FBPropertyAnimatableVector3d RightIndexBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1191 of file fbcharacter.h.

◆ RightIndexCOffsetR

FBPropertyAnimatableVector3d RightIndexCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1194 of file fbcharacter.h.

◆ RightIndexCOffsetT

FBPropertyAnimatableVector3d RightIndexCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1193 of file fbcharacter.h.

◆ RightKneeOffsetR

FBPropertyAnimatableVector3d RightKneeOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1133 of file fbcharacter.h.

◆ RightKneeOffsetT

FBPropertyAnimatableVector3d RightKneeOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1132 of file fbcharacter.h.

◆ RightKneePosition

FBPropertyVector3d RightKneePosition

Read Write Property: Body part pivot of the actor.

Definition at line 1020 of file fbcharacter.h.

◆ RightMiddleAOffsetR

FBPropertyAnimatableVector3d RightMiddleAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1197 of file fbcharacter.h.

◆ RightMiddleAOffsetT

FBPropertyAnimatableVector3d RightMiddleAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1196 of file fbcharacter.h.

◆ RightMiddleBOffsetR

FBPropertyAnimatableVector3d RightMiddleBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1199 of file fbcharacter.h.

◆ RightMiddleBOffsetT

FBPropertyAnimatableVector3d RightMiddleBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1198 of file fbcharacter.h.

◆ RightMiddleCOffsetR

FBPropertyAnimatableVector3d RightMiddleCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1201 of file fbcharacter.h.

◆ RightMiddleCOffsetT

FBPropertyAnimatableVector3d RightMiddleCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1200 of file fbcharacter.h.

◆ RightPinkyAOffsetR

FBPropertyAnimatableVector3d RightPinkyAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1211 of file fbcharacter.h.

◆ RightPinkyAOffsetT

FBPropertyAnimatableVector3d RightPinkyAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1210 of file fbcharacter.h.

◆ RightPinkyBOffsetR

FBPropertyAnimatableVector3d RightPinkyBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1213 of file fbcharacter.h.

◆ RightPinkyBOffsetT

FBPropertyAnimatableVector3d RightPinkyBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1212 of file fbcharacter.h.

◆ RightPinkyCOffsetR

FBPropertyAnimatableVector3d RightPinkyCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1215 of file fbcharacter.h.

◆ RightPinkyCOffsetT

FBPropertyAnimatableVector3d RightPinkyCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1214 of file fbcharacter.h.

◆ RightRingAOffsetR

FBPropertyAnimatableVector3d RightRingAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1204 of file fbcharacter.h.

◆ RightRingAOffsetT

FBPropertyAnimatableVector3d RightRingAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1203 of file fbcharacter.h.

◆ RightRingBOffsetR

FBPropertyAnimatableVector3d RightRingBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1206 of file fbcharacter.h.

◆ RightRingBOffsetT

FBPropertyAnimatableVector3d RightRingBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1205 of file fbcharacter.h.

◆ RightRingCOffsetR

FBPropertyAnimatableVector3d RightRingCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1208 of file fbcharacter.h.

◆ RightRingCOffsetT

FBPropertyAnimatableVector3d RightRingCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1207 of file fbcharacter.h.

◆ RightShoulderOffsetR

FBPropertyAnimatableVector3d RightShoulderOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1103 of file fbcharacter.h.

◆ RightShoulderOffsetT

FBPropertyAnimatableVector3d RightShoulderOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1102 of file fbcharacter.h.

◆ RightShoulderPosition

FBPropertyVector3d RightShoulderPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1030 of file fbcharacter.h.

◆ RightThumbAOffsetR

FBPropertyAnimatableVector3d RightThumbAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1183 of file fbcharacter.h.

◆ RightThumbAOffsetT

FBPropertyAnimatableVector3d RightThumbAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1182 of file fbcharacter.h.

◆ RightThumbBOffsetR

FBPropertyAnimatableVector3d RightThumbBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1185 of file fbcharacter.h.

◆ RightThumbBOffsetT

FBPropertyAnimatableVector3d RightThumbBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1184 of file fbcharacter.h.

◆ RightThumbCOffsetR

FBPropertyAnimatableVector3d RightThumbCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1187 of file fbcharacter.h.

◆ RightThumbCOffsetT

FBPropertyAnimatableVector3d RightThumbCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1186 of file fbcharacter.h.

◆ RightWristOffsetR

FBPropertyAnimatableVector3d RightWristOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1115 of file fbcharacter.h.

◆ RightWristOffsetT

FBPropertyAnimatableVector3d RightWristOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1114 of file fbcharacter.h.

◆ RightWristPosition

FBPropertyVector3d RightWristPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1032 of file fbcharacter.h.

◆ SkeletonColor

FBPropertyColor SkeletonColor

Read Write Property: The color of the skeleton of the actor.

Definition at line 1009 of file fbcharacter.h.

◆ SkeletonVisibility

FBPropertyBool SkeletonVisibility

Read Write Property: Show or Hide the Skeleton.

Definition at line 1036 of file fbcharacter.h.

◆ SymmetryEditRotation

FBPropertyBool SymmetryEditRotation

Read Write Property: Symmetry Edit (Rotation) mode state. Only effective when IKManip property is set to false. This property is shared for all actors.

Definition at line 1222 of file fbcharacter.h.

◆ SymmetryEditScaling

FBPropertyBool SymmetryEditScaling

Read Write Property: Symmetry Edit (Scaling) mode state. Only effective when IKManip property is set to false. This property is shared for all actors.

Definition at line 1223 of file fbcharacter.h.

◆ SymmetryEditTranslation

FBPropertyBool SymmetryEditTranslation

Read Write Property: Symmetry Edit (Translation) mode state. Only effective when IKManip property is set to false. This property is shared for all actors.

Definition at line 1221 of file fbcharacter.h.

◆ Visibility

FBPropertyBool Visibility

Read Write Property: Show or Hide the Actor Body.

Definition at line 1035 of file fbcharacter.h.

◆ WaistOffsetR

FBPropertyAnimatableVector3d WaistOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

Definition at line 1118 of file fbcharacter.h.

◆ WaistOffsetT

FBPropertyAnimatableVector3d WaistOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

Definition at line 1117 of file fbcharacter.h.

◆ WaistPosition

FBPropertyVector3d WaistPosition

Read Write Property: Body part pivot of the actor.

Definition at line 1023 of file fbcharacter.h.

The documentation for this class was generated from the following file:

fbcharacter.h

Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FBActor()

Member Function Documentation

◆ FBDelete()

◆ GetCurrentSkeletonState()

◆ GetDefaultSkeletonState()

◆ GetDefinitionRotationVector()

◆ GetDefinitionScaleVector()

◆ GetDefinitionTranslationVector()

◆ GetLeftGloveReferenceModel()

◆ GetRightGloveReferenceModel()

◆ SetActorTranslation()

◆ SetDefinitionRotationVector()

◆ SetDefinitionScaleVector()

◆ SetDefinitionTranslationVector()

◆ SetLeftGloveReferenceModel()

◆ SetRightGloveReferenceModel()

◆ Snap()

◆ UpdateValues()

Member Data Documentation

◆ BodyColor

◆ ChestOffsetR

◆ ChestOffsetT

◆ ChestPosition

◆ FKFingerMultiplier

◆ FKFingerTipMultiplier

◆ FKThumbTipMultiplier

◆ HeadOffsetR

◆ HeadOffsetT

◆ HeadPosition

◆ HipsOffsetR

◆ HipsOffsetT

◆ HipsPosition

◆ HumanFingerLimits

◆ IKManip

◆ LeftAnkleOffsetR

◆ LeftAnkleOffsetT

◆ LeftAnklePosition

◆ LeftCollarOffsetR

◆ LeftCollarOffsetT

◆ LeftCollarPosition

◆ LeftElbowOffsetR

◆ LeftElbowOffsetT

◆ LeftElbowPosition

◆ LeftFootOffsetR

◆ LeftFootOffsetT

◆ LeftFootPosition

◆ LeftHandIndexIndex

◆ LeftHandIndexMiddle

◆ LeftHandIndexPinky

◆ LeftHandIndexRing

◆ LeftHandMiddleIndex

◆ LeftHandMiddleMiddle

◆ LeftHandMiddlePinky

◆ LeftHandMiddleRing

◆ LeftHandPinkyIndex

◆ LeftHandPinkyMiddle

◆ LeftHandPinkyPinky

◆ LeftHandPinkyRing

◆ LeftHandRingIndex

◆ LeftHandRingMiddle

◆ LeftHandRingPinky

◆ LeftHandRingRing

◆ LeftHipOffsetR

◆ LeftHipOffsetT

◆ LeftHipPosition

◆ LeftIndexAOffsetR

◆ LeftIndexAOffsetT

◆ LeftIndexBOffsetR

◆ LeftIndexBOffsetT

◆ LeftIndexCOffsetR

◆ LeftIndexCOffsetT

◆ LeftKneeOffsetR

◆ LeftKneeOffsetT

◆ LeftKneePosition

◆ LeftMiddleAOffsetR
