Model class. More...

#include <fbmodel.h>

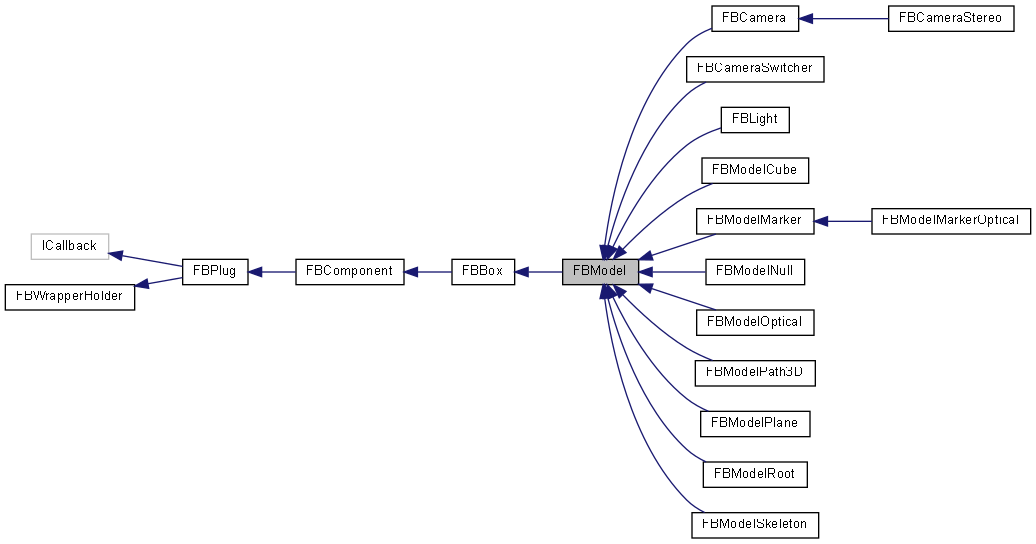

Inheritance diagram for FBModel:

[legend]

Public Member Functions
	FBModel (const char *pName, HIObject pObject=NULL)
	Constructor. More...

virtual void	FBDelete () override
	Open Reality deletion function. More...

	IQuery_Declare (override)
	Interface to IObject. More...

	ICallback_Declare (override)
	Interface to ICallback. More...

virtual FBModel *	Clone ()
	Clone the model. More...

void	SetMatrix (FBMatrix pMatrix, FBModelTransformationType pWhat=kModelTransformation, bool pGlobalInfo=true, bool pPushUndo=false, FBEvaluateInfo *pEvaluateInfo=NULL)
	Set a matrix for the model. More...

void	GetMatrix (FBMatrix &pMatrix, FBModelTransformationType pWhat=kModelTransformation, bool pGlobalInfo=true, FBEvaluateInfo *pEvaluateInfo=NULL)
	Get a matrix from the model. More...

void	GetLocalTransformationMatrixWithGlobalRotationDoF (FBMatrix &pMatrix, bool pInverse=false, FBEvaluateInfo *pEvaluateInfo=NULL)
	Get the local transformation (or local inverse transformation) matrix with the global Rotation DoF values from the model. More...

void	SetVector (FBVector3d pVector, FBModelTransformationType pWhat=kModelTranslation, bool pGlobalInfo=true, bool pPushUndo=false, FBEvaluateInfo *pEvaluateInfo=NULL)
	Set a vector for the model. More...

void	GetVector (FBVector3d &pVector, FBModelTransformationType pWhat=kModelTranslation, bool pGlobalInfo=true, FBEvaluateInfo *pEvaluateInfo=NULL)
	Get a vector from the model. More...

bool	IsEvaluationReady (FBModelEvaluationTaskType pWhat, FBEvaluateInfo *pEvaluateInfo=NULL) const
	Is the model's evaluation task result ready. More...

void	MatrixToRotation (FBRVector &pRotation, const FBMatrix &pMatrix)
	Convert Rotation Matrix to Euler Vector based on model's rotation order. More...

void	RotationToMatrix (FBMatrix &pMatrix, const FBRVector &pRotation)
	Convert Euler Vector to Rotation Matrix based on model's rotation order. More...

void	LRMToDof (FBRVector &pDof, const FBMatrix &pLM)
	Convert local matrix to object space vector. More...

void	DofToLRM (FBMatrix &pLM, const FBRVector &pDof)
	Convert object space vector to local matrix. More...

void	SetSchematicPosition (int pX, int pY)
	Set the position in the schematic view for the model. More...

void	SetSchematicPosition (FBVector2d pVector2d)
	Set the position in the schematic view for the model. More...

FBVector2d	GetSchematicPosition ()
	Get the position in the schematic view for the model. More...

void	GetBoundingBox (FBVector3d &pMin, FBVector3d &pMax)
	Get the bounding box of the model. More...

bool	IsVisible (FBEvaluateInfo *pEvaluateInfo=NULL)
	If the model is visible. More...

FBModelCullingMode	GetCullingMode () const
	Get Model Culling Mode. More...

void	SetCullingMode (FBModelCullingMode pCullingMode)
	Set Model Cullin Mode. More...

void	ForceAlwaysEvaluate ()
	Force Always Evaluate. More...

bool	IsForceAlwaysEvaluate ()
	Return Force Always Evaluate status. More...

int	NoFrustumCullingRequire ()
	Acquire no frustum culling request. More...

int	NoFrustumCullingRelease ()
	Release no frustum culling request. More...

bool	UseFrustumCulling ()
	Get the current Frustum Culling Status. More...

virtual bool	HasCustomDisplay ()
	Function to overload to handle custom display. More...

virtual void	CustomModelDisplay (FBCamera *pCamera, FBModelShadingMode pShadingMode, FBModelRenderPass pRenderPass, float pPickingAreaWidth, float pPickingAreaHeight)
	Custom display function, called when HasCustomDisplay returns true;. More...

virtual bool	CustomModelPicking (int pNbHits, unsigned int pSelectBuffer, FBCamera pCamera, int pMouseX, int pMouseY, FBTVector pLocalRaySrc, FBTVector pLocalRayDir, FBTVector pWorldRaySrc, FBTVector pWorldRayDir, FBMatrix pGlobalInverseMatrix, FBTVector pOutPickedPoint)
	Custom picking for selection, called when HasCustomDisplay returns true;. More...

virtual bool	ClosestRayIntersection (const FBTVector &pRayOrigin, const FBTVector &pRayEnd, FBTVector &pIntersectPos, FBNormal &pIntersectNormal)
	Determines the first intersection point's position and normal between ray and model surface More...

unsigned char *	GetSelectedPoints ()
	Get the list of the points selection state. More...

int	GetSelectedPointsCount ()
	Get the number of selected points in the model. More...

Additional Unique Color ID management.
To support multiple sub items per model/geo selection & picking in easy selection mode using custom rendering routines. see OpenRealitySDK/Samples/miscellaneous/marker_template for example.
bool	SetAdditionalUniqueColorIDCount (unsigned int pCount)
	Request additional Unique color IDs. More...

unsigned int	GetAdditionalUniqueColorIDCount () const
	Get additional unique color count. More...

FBColor	GetAdditionalUniqueColorID (unsigned int pIndex) const
	Get Additional Unique Color Id. More...

virtual bool	FbxStore (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat) override
	Store and Retrieve function that can be overloaded. More...

virtual bool	FbxRetrieve (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat) override
	Request additional Unique color IDs. More...

void	SetupPropertiesForShapes ()
	Setup Shape Properties. More...

bool	RayCast (FBCamera *pCamera, int pMouseX, int pMouseY, FBVector3d &pHitPosition, FBVector3d &pHitNormal)
	Ray cast test. More...

virtual const char *	FbxGetObjectType () override
	Returns the class type inherited by the class of an object, for example: 'Model'. More...

virtual const char *	FbxGetObjectSubType () override
	Returns the class sub type inherited by the class of an object, for example: 'Default', 'Mesh'. More...

void	SetMatrixWithPrecision (FBMatrix pMatrix, FBModelTransformationType pWhat=kModelTransformation, bool pGlobalInfo=true, bool pPushUndo=false, FBEvaluateInfo *pEvaluateInfo=NULL, double pPrecision=FBMat2EulerDegenerateForPrecision10)
	Set a matrix for the model. More...

unsigned int	GetHierarchyWorldMatrices (FBMatrix pMatricesArray, unsigned int pMatricesArrayCount, FBModelHiercharyTraverserType pHiercharyTraverserType, FBEvaluateInfo pEvaluateInfo=NULL)
	Computes the global transform matrices between this model and all its children (all levels). More...

void	CollapseInSchematic ()
	Collapse the model in the schematic view. More...

void	ExpandInSchematic ()
	Expand the model in the schematic view. More...

bool	IsCollapsedInSchematic () const
	Returns if the model is collapsed or not (expanded) in the schematic view. More...

virtual bool	ManipulatorNotify (FBSelectionAction pAction)
	Callback for component selection in custom FBModel. More...

Public Member Functions inherited from FBBox
	FBBox (const char *pName, HIObject pObject=NULL)
	Constructor. More...

virtual FBAnimationNode *	AnimationNodeInCreate (kReference pUserId, const char pName, const char pDataType, bool pIsPublic=false, double pMin=NULL, double pMax=NULL, bool pUserData=false)
	Creation of IN/OUT Animation Nodes. More...

virtual FBAnimationNode *	AnimationNodeOutCreate (kReference pUserId, const char pName, const char pDataType, bool pIsPublic=false, double pMin=NULL, double pMax=NULL, bool pUserData=false)

virtual bool	EvaluateAnimationNodes (FBEvaluateInfo *pEvaluateInfo)
	Evaluation of non TRS nodes that needs to be evaluated. More...

virtual bool	AnimationNodeNotify (FBAnimationNode pAnimationNode, FBEvaluateInfo pEvaluateInfo)
	Notification function for animation thread. More...

virtual bool	ResolveCandidate (FBAnimationNode pAnimationNode, FBEvaluateInfo pEvaluateInfo)
	Function is call when candidate needs to be resolved (like global to local). More...

virtual ECandidateAction	SetGlobalCandidate (FBAnimationNode pAnimationNode, double pData, FBEvaluateInfo *pEvaluateInfo)
	Function is call when a global candidate is set on an animation node. More...

virtual ECandidateAction	SetStdCandidate (FBAnimationNode pAnimationNode, double pData, FBEvaluateInfo *pEvaluateInfo)
	Function is call when a non-global candidate is set on an animation node. More...

virtual bool	AnimationNodeDestroy (FBAnimationNode *pAnimationNode)
	Destroy an animation node. More...

virtual bool	AnimationNodeIsUserData (FBAnimationNode *pAnimationNode)
	Is the animation node user data? More...

virtual void	AnimationNodesOutDisableIfNotWritten (FBEvaluateInfo *pEvaluateInfo)
	This call will disable all out animation nodes from being pull by system (animation thread) for given pEvaluateInfo. More...

virtual FBAnimationNode *	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box. More...

virtual FBAnimationNode *	AnimationNodeOutGet ()

	IObject_Declare (override)

virtual int	GetOutConnectorCount () const
	Get the number of animation node outputs for this box. More...

virtual int	GetInConnectorCount () const
	Get the number of animation node inputs for this box. More...

virtual FBAnimationNode *	GetOutConnector (int pIndex) const
	Get the animation node output associated with the given index. More...

virtual FBAnimationNode *	GetInConnector (int pIndex) const
	Get the animation node input associated with the given index. More...

Public Member Functions inherited from FBComponent
	FBComponent (HIObject pObject)
	Constructor. More...

virtual	~FBComponent ()
	Destructor. More...

virtual bool	FBCreate ()
	Open Reality Creation function. More...

virtual void	FBDestroy ()
	Open Reality destruction function. More...

virtual bool	SetHIObject (HIObject pObject, bool pSDKComponent) override
	Assign component to an internal pointer. More...

virtual int	PropertyAdd (FBProperty *pProperty)
	Add a property to the component's property manager. More...

bool	PropertyAddReferenceProperty (FBProperty *pReferenceProperty)
	Add a reference property to the component's property manager. More...

void	PropertyRemove (FBProperty *pProperty)
	Remove a Property from the component's Property manager. More...

void	PropertyGetModifiedList (FBArrayTemplate< FBProperty * > &pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading. More...

FBProperty *	PropertyCreate (const char pName, FBPropertyType pType, const char pDataType, bool pAnimatable, bool pIsUser=false, FBProperty *pReferenceSource=NULL)
	Create user or dynamic property. More...

FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated). More...

void	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags. More...

bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled. More...

void	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags. More...

void	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags. More...

void	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status. More...

bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled. More...

bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, const char pNamespaceName, const char pReplaceTo=NULL, bool pAddRight=true)
	ProcessNamespaceHierarchy. More...

bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, const char pNamespaceName, const char pReplaceTo=NULL, bool pAddRight=true)
	ProcessObjectNamespace. More...

virtual const char *	ClassName () override
	Get the class name. More...

virtual bool	UseCustomPropertyViewSet () const
	Use the custom property viewSet or not. More...

const char *	GetFullName (void)
	Get the full name. More...

void	SetOwnerNamespace (FBNamespace *pOwnerNSObj)
	Set the owner Namespace object. More...

FBNamespace *	GetOwnerNamespace (void)
	Get the owner Namespace object. More...

FBFileReference *	GetOwnerFileReference (void)
	Get the owner FileReference object. More...

void	HardSelect ()
	HardSelect. More...

virtual bool	Is (int pTypeId) override
	Returns true if object is of type TypeId. More...

virtual int	GetTypeId () override
	GetTypeId( int pTypeId ) More...

Public Member Functions inherited from FBWrapperHolder
FBScriptWrapper *	GetWrapper ()
	Return the wrapper interface of this FBObject. More...

void	AddWrapper (FBScriptWrapper *)

void	RemoveWrapper (FBScriptWrapper *)

Public Attributes
FBPropertyListModel	Children
	List: Children for model. More...

FBPropertyListShader	Shaders
	List: Shaders for model. More...

FBPropertyListMaterial	Materials
	List: Materials for model. More...

FBPropertyListTexture	Textures
	List: Textures with Special UseType (Other than "Color" which should connect to materials). More...

FBPropertyListDeformer	Deformers
	List: Deformers (Skeleton Deformer or Point Cache Deformer). More...

FBPropertyBool	Icon3D
	Read Write Property: Is model a 3D icon? More...

FBPropertyBool	SoftSelected
	Read Write Property: Is model Soft selected? More...

FBPropertyBool	IsDeformable
	Read Only Property: Is model deformable? More...

FBPropertyBool	IsConstrained
	Read Only Property: Is model constrained? More...

FBPropertyBool	SkeletonDeformable
	Read Write Property: Model skeleton deformable. Not Savable More...

FBPropertyBool	BlendShapeDeformable
	Read Write Property: Model blend-shape deformable. Not Savable More...

FBPropertyBool	ConstrainDeformable
	Read Write Property: Model constraint deformable. Not Savable More...

FBPropertyBool	PointCacheDeformable
	Read Write Property: Model point cache deformable. Not Savable More...

FBPropertyBool	PointCacheRecord
	Read Write Property: Record Point Cache for model? Not Savable More...

FBPropertyModel	Parent
	Read Write Property: Parent model. More...

FBPropertyModel	LookAt
	Read Write Property: Look at model (interest point). More...

FBPropertyModel	UpVector
	Read Write Property: UpVector model. More...

FBPropertyGeometry	Geometry
	Read Write Property: Geometry for the model. More...

FBPropertyInt	GeometryUpdateId
	Read Only Property: model geometry (vertex data) related update id. More...

FBPropertyMesh	TessellatedMesh
	Read Only Property: Tessellated Mesh for the model. More...

FBPropertyModelVertexData	ModelVertexData
	Read Only Property: ModelVertexData for the model. More...

FBPropertyCluster	Cluster
	Read Only Property: Link Cluster for the model. More...

FBPropertyScene	Scene
	Read Only Property: Scene containing the model. More...

FBPropertyModelShadingMode	ShadingMode
	Read Write Property: Shading mode for the model. More...

FBPropertyAnimationNode	AnimationNode
	Read Only Property: Animation node of the model. More...

FBPropertyModelRotationOrder	RotationOrder
	Read Write Property: Rotation order. More...

FBPropertyBool	RotationSpaceForLimitOnly
	Read Write Property: Apply Post Rotation Matrix only for Limits? More...

FBPropertyBool	RotationActive
	Read Write Property: Is model using Rotation Limits? More...

FBPropertyVector3d	PreRotation
	Read Write Property: Pre Rotation (considered if RotationActive is true) More...

FBPropertyVector3d	PostRotation
	Read Write Property: Post Rotation (considered if RotationActive is true) More...

FBPropertyVector3d	RotationMin
	Read Write Property: Min Rotation Limit (considered if RotationActive is true) More...

FBPropertyVector3d	RotationMax
	Read Write Property: Max Rotation Limit (considered if RotationActive is true) More...

FBPropertyBool	RotationMinX
	Read Write Property: Is model using Minimum Rotation Limits On X? More...

FBPropertyBool	RotationMinY
	Read Write Property: Is model using Minimum Rotation Limits On Y? More...

FBPropertyBool	RotationMinZ
	Read Write Property: Is model using Minimum Rotation Limits On Z? More...

FBPropertyBool	RotationMaxX
	Read Write Property: Is model using Maximum Rotation Limits On X? More...

FBPropertyBool	RotationMaxY
	Read Write Property: Is model using Maximum Rotation Limits On Y? More...

FBPropertyBool	RotationMaxZ
	Read Write Property: Is model using Maximum Rotation Limits On Z? More...

FBPropertyBool	TranslationActive
	Read Write Property: Is model using Translation Limits? More...

FBPropertyVector3d	TranslationMin
	Read Write Property: Translation Limit Min. More...

FBPropertyVector3d	TranslationMax
	Read Write Property: Translation Limit Max. More...

FBPropertyBool	TranslationMinX
	Read Write Property: Is model using Translation Limits on Min X. More...

FBPropertyBool	TranslationMinY
	Read Write Property: Is model using Translation Limits on Min Y. More...

FBPropertyBool	TranslationMinZ
	Read Write Property: Is model using Translation Limits on Min Z. More...

FBPropertyBool	TranslationMaxX
	Read Write Property: Is model using Translation Limits on Max X. More...

FBPropertyBool	TranslationMaxY
	Read Write Property: Is model using Translation Limits on Max Y. More...

FBPropertyBool	TranslationMaxZ
	Read Write Property: Is model using Translation Limits on Max Z. More...

FBPropertyAnimatableBool	Visibility
	Read Write Property: Visibility of model. This can be overridden by the 'Show' property. More...

FBPropertyBool	VisibilityInheritance
	Read Write Property: //!< When this value is set to `True` the Visibility of this model is also applied to all its descendants More...

FBPropertyAnimatableVector3d	Translation
	Read Write Property: Lcl translation. More...

FBPropertyAnimatableVector3d	Rotation
	Read Write Property: Lcl rotation. More...

FBPropertyAnimatableVector3d	Scaling
	Read Write Property: Lcl scaling. More...

FBPropertyVector3d	GeometricTranslation
	Read Write Property: Geometric translation. More...

FBPropertyVector3d	GeometricRotation
	Read Write Property: Geometric rotation. More...

FBPropertyVector3d	GeometricScaling
	Read Write Property: Geometric scaling. More...

FBPropertyBool	QuaternionInterpolate
	Read Write Property: Use quaternion interpolation. More...

FBPropertyBool	Show
	Read Write Property: Indicate if the viewer should show the object, according to its visibility value. This has a default value of 'false'. More...

FBPropertyBool	Pickable
	Read Write Property: Indicate if a model can be picked in the viewer. This has a default value of 'true'. More...

FBPropertyBool	Transformable
	Read Write Property: Indicate if a model can be transformable in the viewer. This has a default value of 'true'. More...

FBPropertyColor	UniqueColorId
	Read Only Property: Unique Color Id for color based viewer picking. Color channel values are in the range [0, 1] with 1.0/255 precision. More...

FBPropertyBool	PrimaryVisibility
	Read Write Property: Control the geometry render state. Geometry can still cast shadows even if this is turned off. More...

FBPropertyBool	CastsShadows
	Read Write Property: If true, the geometry will produce shadows. More...

FBPropertyBool	ReceiveShadows
	Read Write Property: If true, the geometry will receive shadows. More...

Public Attributes inherited from FBBox
const char *	UniqueName
	internal Unique name. More...

FBPropertyBool	Animatable
	Read Write Property: Is the box animatable. More...

FBPropertyBool	Live
	Read Write Property: Is live? More...

FBPropertyBool	RecordMode
	Read Write Property: Is recording? More...

Public Attributes inherited from FBComponent
FBPropertyManager	PropertyList
	Read Only Property: Manages all of the properties for the component. More...

FBPropertyListComponent	Components
	List: List of components. More...

FBPropertyListComponent	Parents
	List: Parents. More...

FBPropertyBool	Selected
	Read Write Property: Selected property. More...

FBPropertyString	Name
	Read Write Property: Unique name of object. More...

FBPropertyString	LongName
	Read Write Property: Name and namespace for object. More...

FBPropertyFolder	Folder
	Read Write Property: The folder that contain this component. More...

Additional Inherited Members
Public Types inherited from FBBox
enum	ECandidateAction { eCandidateAccept , eCandidateIntercept , eCandidateInterceptAfterEvaluation }
	Resolving action for candidates. More...

Static Public Member Functions inherited from FBComponent
static int	GetInternalClassId ()

static void	FBComponentSetName (FBComponent pObject, const char pName)

static const char *	FBComponentGetName (FBComponent *pObject)

static void	FBComponentSetLongName (FBComponent pObject, const char pName)

static const char *	FBComponentGetLongName (FBComponent *pObject)

Static Public Attributes inherited from FBComponent
static int	TypeInfo
	Contains the Type information of the object. More...

Protected Member Functions inherited from FBPlug
bool	IsSDKComponent ()
	Return whether or not item is an SDK component. More...

bool	ConnectSrc (FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection. More...

bool	ConnectDst (FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection. More...

bool	ConnectSrcAt (int pDst_SrcIndex, FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection. More...

bool	ConnectDstAt (int pSrc_DstIndex, FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection. More...

bool	DisconnectDst (FBPlug *pDst)
	Remove a destination connection. More...

bool	DisconnectSrc (FBPlug *pSrc)
	Remove a source connection. More...

void	DisconnectAllSrc ()
	Remove all source connections. More...

void	DisconnectAllDst ()
	Remove all destination connections. More...

bool	DisconnectDstAt (int pIndex)
	Remove a destination connection at a specified index. More...

bool	DisconnectSrcAt (int pIndex)
	Remove a source connection at a specified index. More...

bool	ReplaceDstAt (int pIndex, FBPlug *pDst)
	Replace a destination connection at a specified index. More...

bool	ReplaceSrcAt (int pIndex, FBPlug *pSrc)
	Replace a source connection at a specified index. More...

bool	SwapSrc (int pIndexA, int pIndexB)
	Swap source connection at index A with source connection at index B. More...

bool	MoveSrcAt (int pIndex, int pAtIndex)
	Move source connection at pIndex to pAtIndex. More...

bool	MoveSrcAt (FBPlug pSrc, FBPlug pAtSrc)
	Move source connection pSrc to the position of pAtSrc. More...

int	GetSrcCount ()
	Get source connection count. More...

FBPlug *	GetSrc (int pIndex)
	Get a source connection's plug at specified index. More...

FBConnectionType	GetSrcType (int pIndex)
	Get a source connection's type at specified index. More...

int	GetDstCount ()
	Get destination connection count. More...

FBPlug *	GetDst (int pIndex)
	Get a destination connection's plug at specified index. More...

FBConnectionType	GetDstType (int pIndex)
	Get a destination connection's type at specified index. More...

bool	BeginChange ()
	Begins a change on multiple plugs. More...

void	EndChange ()
	Ends a change on multiple plugs. More...

void	SetSelfModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's self modification flag. More...

bool	GetSelfModified (FBPlugModificationFlag pFlag)
	Tell if the plug's self has changed. More...

void	SetContentModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's owned property/object's modification flag. More...

bool	GetContentModified (FBPlugModificationFlag pFlag)
	Tell if the plug's content has changed. More...

int	GetPlugConnectionModifiedList (FBPlugList &pPlugList, FBPlugModificationFlag pConnectionModificatonFlag, bool pAddRemove)
	Get plug's modified src/dst property/object connection added/removed List. More...

bool	RevertModification (FBPlugModificationFlag pFlag=kFBAllModifiedMask)
	Revert the plug's modification to original status. More...

void	SetStatusFlag (FBPlugStatusFlag pStatus, bool pValue)
	Set the plug's status flag. More...

bool	GetStatusFlag (FBPlugStatusFlag pStatus) const
	Tell if the plug's status has changed. More...

FBPlug *	GetOwner ()
	Get the owner of this plug. More...

FBPlug *	GetOwned (int pIndex)
	Get the owned plug at specified index. More...

int	GetOwnedCount ()
	Get the owned plug count. More...

virtual bool	PlugDataNotify (FBConnectionAction pAction, FBPlug pThis, void pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugDataNotify when overloaded is equivalent of FBSystem.OnConnectionDataNotify but in the context of the derived object only. More...

virtual bool	PlugStateNotify (FBConnectionAction pAction, FBPlug pThis, void pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugStateNotify when overloaded is equivalent of FBSystem.OnConnectionStateNotify but in the context of the derived object only. More...

virtual bool	PlugNotify (FBConnectionAction pAction, FBPlug pThis, int pIndex, FBPlug pPlug=NULL, FBConnectionType pConnectionType=kFBConnectionTypeNone, FBPlug *pNewPlug=NULL)
	PlugNotify when overloaded is equivalent of FBSystem.OnConnectionNotify but in the context of the derived object only. More...

Static Protected Member Functions inherited from FBPlug
static int	GetInternalClassId ()
	Internal class Id. More...

Protected Attributes inherited from FBPlug
bool	mAllocated
	Contain the Allocation State of the Component. More...

HIObject	mObject
	Handle on the Plug. More...

bool	mSDKComponent
	bool Plug is an SDK component. More...

Static Protected Attributes inherited from FBPlug
static const char *	ClassGroupName
	ClassGroupName of the object. More...

static int	TypeInfo
	TypeInfo. More...

static int	mGlobalTypeInfo
	Represente the Type Index. More...

Detailed Description

Model class.

In the MotionBuilder UI, a model can be any object in a scene, created using geometry. Models can represent simple objects like cubes, or complex objects like characters.

FBModel is a base class which is not used so much directly, but is the parent of well-used classes like FBCamera, FBLight, and FBModelMarker.

It also implements a number of widely-implemented functions and attributes, such as:

Clone(), FBDelete()
UI attributes such as Show, Pickable, and Visibility
Positional attributes such as Rotation, Scaling, and Translation The following Python snippet shows how to create, show, rotate, and delete a cube
from pyfbsdk import *

myCube = FBModelCube("cube")

myCube.Show = True

myCube.Rotation = FBVector3d(45, 45, 45)

myCube.FBDelete()

FBModelCube
Cube model class.
Definition: fbmodel.h:998

FBModel::FBDelete
virtual void FBDelete() override
Open Reality deletion function.

FBModel::Show
FBPropertyBool Show
Read Write Property: Indicate if the viewer should show the object, according to its visibility value...
Definition: fbmodel.h:353

FBModel::Rotation
FBPropertyAnimatableVector3d Rotation
Read Write Property: Lcl rotation.
Definition: fbmodel.h:344

FBVector3d
class K_DLLIMPORT FBVector3< double > FBVector3d
3D vector.
Definition: fbtypes.h:438

There is a few ways to get a handle on existing models in a scene:

FBFindObjectsByName return a list of objects matching a pattern (can contain *). For usage, see: FindObjectsWithWildcard.py
If you know the name of the model, use FBFindModelByLabelName, as demonstrated in FBComponent.py.
FBGetSelectedModels can get a handle to an object which is derived from FBModel. It searches the scene for a model, based on the model's unique name and returns a list of all the selected things in the scene.

Definition at line 273 of file fbmodel.h.

Constructor & Destructor Documentation

◆ FBModel()

FBModel	(	const char *	pName,
		HIObject	pObject = `NULL`
	)

Constructor.

Parameters

pName	Name of model.
pObject	For internal use only(default=NULL).

Member Function Documentation

◆ Clone()

virtual FBModel* Clone ( )

virtual

Clone the model.

This will duplicate the current model.

Returns: Newly created model.

◆ ClosestRayIntersection()

virtual bool ClosestRayIntersection	(	const FBTVector &	pRayOrigin,
		const FBTVector &	pRayEnd,
		FBTVector &	pIntersectPos,
		FBNormal &	pIntersectNormal
	)

virtual

Determines the first intersection point's position and normal between ray and model surface

Remarks: All coordinates specified in local model space, override this function in subclass if custom intersection method is desired. See /OpenReality/Samples/miscellaneous/ormodel_template ORSDK sample project for example.

Parameters

pRayOrigin	Specifies origin of the view ray.
pRayEnd	Specifies end of the view ray.
pIntersectPos	return the first intersection point's position;
pIntersectNormal	return the first intersection point's normal;

Returns: Returns true if at least one intersects with ray, and false if otherwise.

◆ CollapseInSchematic()

void CollapseInSchematic ( )

Collapse the model in the schematic view.

◆ CustomModelDisplay()

virtual void CustomModelDisplay	(	FBCamera *	pCamera,
		FBModelShadingMode	pShadingMode,
		FBModelRenderPass	pRenderPass,
		float	pPickingAreaWidth,
		float	pPickingAreaHeight
	)

inlinevirtual

Custom display function, called when HasCustomDisplay returns true;.

Parameters

pCamera	Current camera for display.
pShadingMode	Shading mode to render see FBModelShadingMode.
pRenderPass	Actual rendering pass, see FBModelRenderPass.
pPickingAreaWidth	Width of picking area.
pPickingAreaHeight	Height of picking area.

Definition at line 529 of file fbmodel.h.

◆ CustomModelPicking()

virtual bool CustomModelPicking	(	int	pNbHits,
		unsigned int *	pSelectBuffer,
		FBCamera *	pCamera,
		int	pMouseX,
		int	pMouseY,
		FBTVector *	pLocalRaySrc,
		FBTVector *	pLocalRayDir,
		FBTVector *	pWorldRaySrc,
		FBTVector *	pWorldRayDir,
		FBMatrix *	pGlobalInverseMatrix,
		FBTVector *	pOutPickedPoint
	)

inlinevirtual

Custom picking for selection, called when HasCustomDisplay returns true;.

Parameters

pNbHits	Number of hits.
pSelectBuffer	OpenGL hit buffer.
pCamera	Current camera for rendering.
pMouseX	Mouse X position.
pMouseY	Mouse Y position.
pLocalRaySrc	Local picking ray source.
pLocalRayDir	Local picking ray direction.
pWorldRaySrc	World coordinate picking ray source.
pWorldRayDir	World coordinate picking ray direction.
pGlobalInverseMatrix	Inverse transformation matrix of the model.
pOutPickedPoint	Picked position.

Definition at line 544 of file fbmodel.h.

◆ DofToLRM()

void DofToLRM	(	FBMatrix &	pLM,
		const FBRVector &	pDof
	)

Convert object space vector to local matrix.

Parameters

pLM	Resulting local rotation matrix.
pDof	Vector to convert

Note: Use this function when you want to convert euler to local rotation with proper pre/post transformation and rotation order applied from this model.

◆ ExpandInSchematic()

void ExpandInSchematic ( )

Expand the model in the schematic view.

◆ FBDelete()

virtual void FBDelete ( )

overridevirtual

Open Reality deletion function.

Reimplemented from FBComponent.

◆ FbxGetObjectSubType()

virtual const char* FbxGetObjectSubType ( )

overridevirtual

Returns the class sub type inherited by the class of an object, for example: 'Default', 'Mesh'.

Returns: The class sub type inherited by the class of an object.

Reimplemented from FBBox.

Reimplemented in FBModelMarker, and FBModelNull.

◆ FbxGetObjectType()

virtual const char* FbxGetObjectType ( )

overridevirtual

Returns the class type inherited by the class of an object, for example: 'Model'.

Returns: The class type inherited by the class of an object.

Reimplemented from FBBox.

Reimplemented in FBModelMarker, and FBModelNull.

◆ FbxRetrieve()

virtual bool FbxRetrieve	(	FBFbxObject *	pFbxObject,
		kFbxObjectStore	pStoreWhat
	)

overridevirtual

Request additional Unique color IDs.

Parameters

pCount User should note that Unique Color ID resource is limited (only 24 bits), hence should avoid to use unnecessary large number.

Returns: True if Unique ColorId resource is available.

Reimplemented from FBBox.

Reimplemented in FBModelMarker, and FBModelNull.

◆ FbxStore()

virtual bool FbxStore	(	FBFbxObject *	pFbxObject,
		kFbxObjectStore	pStoreWhat
	)

overridevirtual

Store and Retrieve function that can be overloaded.

Parameters

pFbxObject	FBX Object that is used to communicate I/O operations.
pStoreWhat	Which attributes are currently stored/retrieved.

Reimplemented from FBBox.

Reimplemented in FBModelMarker, and FBModelNull.

◆ ForceAlwaysEvaluate()

void ForceAlwaysEvaluate ( )

Force Always Evaluate.

In some case, MoBu kernel perform optimization by skipping certain evaluation tasks. This function stop skipping for this model.

◆ GetAdditionalUniqueColorID()

FBColor GetAdditionalUniqueColorID ( unsigned int pIndex ) const

Get Additional Unique Color Id.

Parameters

pIndex the requested unique color id index, can't be larger than GetAdditionalColorIDCount()

Returns: Additional Unique ColorId.

◆ GetAdditionalUniqueColorIDCount()

unsigned int GetAdditionalUniqueColorIDCount ( ) const

Get additional unique color count.

Returns: Additional Unique Color Count.

◆ GetBoundingBox()

void GetBoundingBox	(	FBVector3d &	pMin,
		FBVector3d &	pMax
	)

Get the bounding box of the model.

Note. for deformable model, this function will provide the approximated (larger than the smallest) bounding box for performance consideration.

Parameters

pMin	Output parameter. Minimum value of the bounding box.
pMax	Output parameter. Maximum value of the bounding box.

◆ GetCullingMode()

FBModelCullingMode GetCullingMode ( ) const

Get Model Culling Mode.

Returns: Model Culling Mode.

◆ GetHierarchyWorldMatrices()

unsigned int GetHierarchyWorldMatrices	(	FBMatrix *	pMatricesArray,
		unsigned int	pMatricesArrayCount,
		FBModelHiercharyTraverserType	pHiercharyTraverserType,
		FBEvaluateInfo *	pEvaluateInfo = `NULL`
	)

Computes the global transform matrices between this model and all its children (all levels).

The hierarchy world matrix for a model is represented as a global transform matrix applied on an arbitrary root hierarchy node (this model for instance), considered as the world reference.

Parameters

pMatricesArray	The matrix array (memory already allocated) to fill in with the hierarchy world matrix of all the model's children models
pMatricesArrayCount	The size of the matrix array

Return values

pHiercharyTraverserType The hierarchy traverser type

Parameters

pEvaluateInfo EvaluateInfo, Take Display if none specified.

Return values

Number of matrices filled in the array. The value may be different than pMatricesArrayCount if the number of children models is less than the size of the matrix array.

◆ GetLocalTransformationMatrixWithGlobalRotationDoF()

void GetLocalTransformationMatrixWithGlobalRotationDoF	(	FBMatrix &	pMatrix,
		bool	pInverse = `false`,
		FBEvaluateInfo *	pEvaluateInfo = `NULL`
	)

Get the local transformation (or local inverse transformation) matrix with the global Rotation DoF values from the model.

The GetMatrix method was previously wrongly returning the local transformation (and local inverse transformation) matrices with global Rotation DoF values. The GetMatrix method implementation has been updated to not include the global Rotation DoF values. This method returns the same matrix values returned by the legacy GetMatrix implementation when retrieving the local transformation (and local inverse transformation) matrices.

Parameters

pMatrix	Matrix to fill with requested information.
pInverse	False for the transformation matrix, true for the inverse transformation matrix.
pEvaluateInfo	EvaluateInfo, Take Display if none specified.

◆ GetMatrix()

void GetMatrix	(	FBMatrix &	pMatrix,
		FBModelTransformationType	pWhat = `kModelTransformation`,
		bool	pGlobalInfo = `true`,
		FBEvaluateInfo *	pEvaluateInfo = `NULL`
	)

Get a matrix from the model.

Parameters

pMatrix	Matrix to fill with requested information.
pWhat	Type of information requested (default=transformation).
pGlobalInfo	true if it is GlobalInfo, false if Local (default=true).
pEvaluateInfo	EvaluateInfo, Take Display if none specified.

◆ GetSchematicPosition()

FBVector2d GetSchematicPosition ( )

Get the position in the schematic view for the model.

Returns: Current position for the model.

◆ GetSelectedPoints()

unsigned char* GetSelectedPoints ( )

Get the list of the points selection state.

Returns: Pointer to the list of the points selection state.

◆ GetSelectedPointsCount()

int GetSelectedPointsCount ( )

Get the number of selected points in the model.

Returns: Number of selected points.

◆ GetVector()

void GetVector	(	FBVector3d &	pVector,
		FBModelTransformationType	pWhat = `kModelTranslation`,
		bool	pGlobalInfo = `true`,
		FBEvaluateInfo *	pEvaluateInfo = `NULL`
	)

Get a vector from the model.

Parameters

pVector	Vector to fill with requested values.
pWhat	Type of information requested (default=translation, inverses not supported).
pGlobalInfo	true if it is GlobalInfo, false if Local (default=true).
pEvaluateInfo	EvaluateInfo, Take Display if none specified

◆ HasCustomDisplay()

virtual bool HasCustomDisplay ( )

inlinevirtual

Function to overload to handle custom display.

Returns: True is this model class has custom display function ModelDisplay

Definition at line 520 of file fbmodel.h.

◆ ICallback_Declare()

ICallback_Declare ( override )

Interface to ICallback.

◆ IQuery_Declare()

IQuery_Declare ( override )

Interface to IObject.

◆ IsCollapsedInSchematic()

bool IsCollapsedInSchematic ( ) const

Returns if the model is collapsed or not (expanded) in the schematic view.

Returns: true if the model is collapsed in the schematic view, false if it is expanded.

◆ IsEvaluationReady()

bool IsEvaluationReady	(	FBModelEvaluationTaskType	pWhat,
		FBEvaluateInfo *	pEvaluateInfo = `NULL`
	)		const

Is the model's evaluation task result ready.

Parameters

pWhat	Type of evaluation task.
pEvaluateInfo	EvaluateInfo, Take Display if none specified

Return values

◆ IsForceAlwaysEvaluate()

bool IsForceAlwaysEvaluate ( )

Return Force Always Evaluate status.

◆ IsVisible()

bool IsVisible ( FBEvaluateInfo * pEvaluateInfo = NULL )

If the model is visible.

Note. this query will consider self Visibility property, plus parent node/set Visibility. The visibility of a model is affected by 4 parameters:

The model's own visibility
The model's parent's visibility (if any)
The visibility of the set to which model belongs (if any)
VisibilityInheritance of the model
Parameters

pEvaluateInfo evaluate info,

Returns
true if visible for the given evaluate info.

◆ LRMToDof()

void LRMToDof	(	FBRVector &	pDof,
		const FBMatrix &	pLM
	)

Convert local matrix to object space vector.

Parameters

pDof	Resulting object space vector.
pLM	Local rotation matrix to convert

Note: Use this function when you want to convert local rotation to euler with proper pre/post transformation and rotation order applied from this model.

◆ ManipulatorNotify()

virtual bool ManipulatorNotify ( FBSelectionAction pAction )

inlinevirtual

Callback for component selection in custom FBModel.

Parameters

pAction The selection mode the current viewport is in.

Returns: User defined returned value. Must return true if the user wants the system to proceed with the FBSelectionAction or false if the user doesn't want that action to be done. For example, if the specified function returns false when a "kFBManipulatorAddAll" is specified, all the components for the model will not be added to the current list of selected object. Returning true will allow MotionBuilder to add them.

Definition at line 678 of file fbmodel.h.

◆ MatrixToRotation()

void MatrixToRotation	(	FBRVector &	pRotation,
		const FBMatrix &	pMatrix
	)

Convert Rotation Matrix to Euler Vector based on model's rotation order.

Parameters

pRotation	Resulting euler vector, whose angles are stored in [X,Y,Z] order.
pMatrix	Matrix to convert.

◆ NoFrustumCullingRelease()

int NoFrustumCullingRelease ( )

Release no frustum culling request.

Returns: Current no frustum culling request count after function call.

◆ NoFrustumCullingRequire()

int NoFrustumCullingRequire ( )

Acquire no frustum culling request.

Returns: Current no frustum culling request count after function call.

◆ RayCast()

bool RayCast	(	FBCamera *	pCamera,
		int	pMouseX,
		int	pMouseY,
		FBVector3d &	pHitPosition,
		FBVector3d &	pHitNormal
	)

Ray cast test.

Parameters

pCamera	Camera to use for casting.
pMouseX	Mouse X position.
pMouseY	Mouse Y position.
pHitPosition	Ray cast position on the object.
pHitNormal	Normal at the ray cast position on the object.

Returns: true if it hit the meshes, hit would contains the precise position & normal.

◆ RotationToMatrix()

void RotationToMatrix	(	FBMatrix &	pMatrix,
		const FBRVector &	pRotation
	)

Convert Euler Vector to Rotation Matrix based on model's rotation order.

Parameters

pMatrix	Resulting rotation matrix.
pRotation	Object space rotation vector to convert, whose angles are stored in [X,Y,Z] order.

◆ SetAdditionalUniqueColorIDCount()

bool SetAdditionalUniqueColorIDCount ( unsigned int pCount )

Request additional Unique color IDs.

Parameters

pCount User should note that Unique Color ID resource is limited (only 24 bits), hence should avoid to use unnecessary large number.

Returns: True if Unique ColorId resource is available.

◆ SetCullingMode()

void SetCullingMode ( FBModelCullingMode pCullingMode )

Set Model Cullin Mode.

Parameters

pCullingMode Culling Mode to be set.

◆ SetMatrix()

void SetMatrix	(	FBMatrix	pMatrix,
		FBModelTransformationType	pWhat = `kModelTransformation`,
		bool	pGlobalInfo = `true`,
		bool	pPushUndo = `false`,
		FBEvaluateInfo *	pEvaluateInfo = `NULL`
	)

Set a matrix for the model.

Parameters

pMatrix	Information to use to set the model's matrix.
pWhat	Type of matrix to set (default=transformation).
pGlobalInfo	true if it is GlobalInfo, false if Local (default=true).
pPushUndo	true if this operation is undoable, don't push undo in non UI thread.
pEvaluateInfo	EvaluateInfo, Take Display if none specified

◆ SetMatrixWithPrecision()

void SetMatrixWithPrecision	(	FBMatrix	pMatrix,
		FBModelTransformationType	pWhat = `kModelTransformation`,
		bool	pGlobalInfo = `true`,
		bool	pPushUndo = `false`,
		FBEvaluateInfo *	pEvaluateInfo = `NULL`,
		double	pPrecision = `FBMat2EulerDegenerateForPrecision10`
	)

Set a matrix for the model.

Parameters

pMatrix	Information to use to set the model's matrix.
pWhat	Type of matrix to set (default=transformation).
pGlobalInfo	true if it is GlobalInfo, false if Local (default=true).
pPushUndo	true if this operation is undoable, don't push undo in non UI thread.
pEvaluateInfo	EvaluateInfo, Take Display if none specified
pPrecision	Indicate the precision level, used when calculating the threshold value for gimble lock. 16 * pow(10.0, -10)) is the new default value since Mobu 2016, 16 * pow(10.0, -6)) is old default value before then.

◆ SetSchematicPosition() [1/2]

void SetSchematicPosition ( FBVector2d pVector2d )

Set the position in the schematic view for the model.

Parameters

pVector2d Position to set.

◆ SetSchematicPosition() [2/2]

void SetSchematicPosition	(	int	pX,
		int	pY
	)

Set the position in the schematic view for the model.

Parameters

pX	X position to set.
pY	Y position to set.

◆ SetupPropertiesForShapes()

void SetupPropertiesForShapes ( )

Setup Shape Properties.

Normally this function is called automatically at the next global synchronization point after the geometry has been updated. However you must call it explicitly to access the shape properties immediately after shapes adding/removing before next global synchronization point.

◆ SetVector()

void SetVector	(	FBVector3d	pVector,
		FBModelTransformationType	pWhat = `kModelTranslation`,
		bool	pGlobalInfo = `true`,
		bool	pPushUndo = `false`,
		FBEvaluateInfo *	pEvaluateInfo = `NULL`
	)

Set a vector for the model.

Parameters

pVector	Vector to use to set values.
pWhat	Type of information to set (default=translation, inverses not supported).
pGlobalInfo	true if it is GlobalInfo, false if Local (default=true).
pPushUndo	true if this operation is undoable, don't push undo in non UI thread.
pEvaluateInfo	EvaluateInfo, Take Display if none specified

◆ UseFrustumCulling()

bool UseFrustumCulling ( )

Get the current Frustum Culling Status.

Returns: True if model don't use frustum culling currently.

Member Data Documentation

◆ AnimationNode

FBPropertyAnimationNode AnimationNode

Read Only Property: Animation node of the model.

Definition at line 312 of file fbmodel.h.

◆ BlendShapeDeformable

FBPropertyBool BlendShapeDeformable

Read Write Property: Model blend-shape deformable. Not Savable

Definition at line 298 of file fbmodel.h.

◆ CastsShadows

FBPropertyBool CastsShadows

Read Write Property: If true, the geometry will produce shadows.

Definition at line 359 of file fbmodel.h.

◆ Children

FBPropertyListModel Children

List: Children for model.

Definition at line 287 of file fbmodel.h.

◆ Cluster

FBPropertyCluster Cluster

Read Only Property: Link Cluster for the model.

Definition at line 309 of file fbmodel.h.

◆ ConstrainDeformable

FBPropertyBool ConstrainDeformable

Read Write Property: Model constraint deformable. Not Savable

Definition at line 299 of file fbmodel.h.

◆ Deformers

FBPropertyListDeformer Deformers

List: Deformers (Skeleton Deformer or Point Cache Deformer).

Definition at line 292 of file fbmodel.h.

◆ GeometricRotation

FBPropertyVector3d GeometricRotation

Read Write Property: Geometric rotation.

Definition at line 348 of file fbmodel.h.

◆ GeometricScaling

FBPropertyVector3d GeometricScaling

Read Write Property: Geometric scaling.

Definition at line 349 of file fbmodel.h.

◆ GeometricTranslation

FBPropertyVector3d GeometricTranslation

Read Write Property: Geometric translation.

Definition at line 347 of file fbmodel.h.

◆ Geometry

FBPropertyGeometry Geometry

Read Write Property: Geometry for the model.

Definition at line 305 of file fbmodel.h.

◆ GeometryUpdateId

FBPropertyInt GeometryUpdateId

Read Only Property: model geometry (vertex data) related update id.

Definition at line 306 of file fbmodel.h.

◆ Icon3D

FBPropertyBool Icon3D

Read Write Property: Is model a 3D icon?

Definition at line 293 of file fbmodel.h.

◆ IsConstrained

FBPropertyBool IsConstrained

Read Only Property: Is model constrained?

Definition at line 296 of file fbmodel.h.

◆ IsDeformable

FBPropertyBool IsDeformable

Read Only Property: Is model deformable?

Definition at line 295 of file fbmodel.h.

◆ LookAt

FBPropertyModel LookAt

Read Write Property: Look at model (interest point).

Definition at line 303 of file fbmodel.h.

◆ Materials

FBPropertyListMaterial Materials

List: Materials for model.

Definition at line 290 of file fbmodel.h.

◆ ModelVertexData

FBPropertyModelVertexData ModelVertexData

Read Only Property: ModelVertexData for the model.

Definition at line 308 of file fbmodel.h.

◆ Parent

FBPropertyModel Parent

Read Write Property: Parent model.

Definition at line 302 of file fbmodel.h.

◆ Pickable

FBPropertyBool Pickable

Read Write Property: Indicate if a model can be picked in the viewer. This has a default value of 'true'.

Definition at line 354 of file fbmodel.h.

◆ PointCacheDeformable

FBPropertyBool PointCacheDeformable

Read Write Property: Model point cache deformable. Not Savable

Definition at line 300 of file fbmodel.h.

◆ PointCacheRecord

FBPropertyBool PointCacheRecord

Read Write Property: Record Point Cache for model? Not Savable

Definition at line 301 of file fbmodel.h.

◆ PostRotation

FBPropertyVector3d PostRotation

Read Write Property: Post Rotation (considered if RotationActive is true)

Definition at line 320 of file fbmodel.h.

◆ PreRotation

FBPropertyVector3d PreRotation

Read Write Property: Pre Rotation (considered if RotationActive is true)

Definition at line 319 of file fbmodel.h.

◆ PrimaryVisibility

FBPropertyBool PrimaryVisibility

Read Write Property: Control the geometry render state. Geometry can still cast shadows even if this is turned off.

Definition at line 358 of file fbmodel.h.

◆ QuaternionInterpolate

FBPropertyBool QuaternionInterpolate

Read Write Property: Use quaternion interpolation.

Definition at line 351 of file fbmodel.h.

◆ ReceiveShadows

FBPropertyBool ReceiveShadows

Read Write Property: If true, the geometry will receive shadows.

Definition at line 360 of file fbmodel.h.

◆ Rotation

FBPropertyAnimatableVector3d Rotation

Read Write Property: Lcl rotation.

Definition at line 344 of file fbmodel.h.

◆ RotationActive

FBPropertyBool RotationActive

Read Write Property: Is model using Rotation Limits?

Definition at line 318 of file fbmodel.h.

◆ RotationMax

FBPropertyVector3d RotationMax

Read Write Property: Max Rotation Limit (considered if RotationActive is true)

Definition at line 322 of file fbmodel.h.

◆ RotationMaxX

FBPropertyBool RotationMaxX

Read Write Property: Is model using Maximum Rotation Limits On X?

Definition at line 326 of file fbmodel.h.

◆ RotationMaxY

FBPropertyBool RotationMaxY

Read Write Property: Is model using Maximum Rotation Limits On Y?

Definition at line 327 of file fbmodel.h.

◆ RotationMaxZ

FBPropertyBool RotationMaxZ

Read Write Property: Is model using Maximum Rotation Limits On Z?

Definition at line 328 of file fbmodel.h.

◆ RotationMin

FBPropertyVector3d RotationMin

Read Write Property: Min Rotation Limit (considered if RotationActive is true)

Definition at line 321 of file fbmodel.h.

◆ RotationMinX

FBPropertyBool RotationMinX

Read Write Property: Is model using Minimum Rotation Limits On X?

Definition at line 323 of file fbmodel.h.

◆ RotationMinY

FBPropertyBool RotationMinY

Read Write Property: Is model using Minimum Rotation Limits On Y?

Definition at line 324 of file fbmodel.h.

◆ RotationMinZ

FBPropertyBool RotationMinZ

Read Write Property: Is model using Minimum Rotation Limits On Z?

Definition at line 325 of file fbmodel.h.

◆ RotationOrder

FBPropertyModelRotationOrder RotationOrder

Read Write Property: Rotation order.

Definition at line 314 of file fbmodel.h.

◆ RotationSpaceForLimitOnly

FBPropertyBool RotationSpaceForLimitOnly

Read Write Property: Apply Post Rotation Matrix only for Limits?

Definition at line 317 of file fbmodel.h.

◆ Scaling

FBPropertyAnimatableVector3d Scaling

Read Write Property: Lcl scaling.

Definition at line 345 of file fbmodel.h.

◆ Scene

FBPropertyScene Scene

Read Only Property: Scene containing the model.

Definition at line 310 of file fbmodel.h.

◆ Shaders

FBPropertyListShader Shaders

List: Shaders for model.

Definition at line 289 of file fbmodel.h.

◆ ShadingMode

FBPropertyModelShadingMode ShadingMode

Read Write Property: Shading mode for the model.

Definition at line 311 of file fbmodel.h.

◆ Show

FBPropertyBool Show

Read Write Property: Indicate if the viewer should show the object, according to its visibility value. This has a default value of 'false'.

Definition at line 353 of file fbmodel.h.

◆ SkeletonDeformable

FBPropertyBool SkeletonDeformable

Read Write Property: Model skeleton deformable. Not Savable

Definition at line 297 of file fbmodel.h.

◆ SoftSelected

FBPropertyBool SoftSelected

Read Write Property: Is model Soft selected?

Definition at line 294 of file fbmodel.h.

◆ TessellatedMesh

FBPropertyMesh TessellatedMesh

Read Only Property: Tessellated Mesh for the model.

Definition at line 307 of file fbmodel.h.

◆ Textures

FBPropertyListTexture Textures

List: Textures with Special UseType (Other than "Color" which should connect to materials).

Definition at line 291 of file fbmodel.h.

◆ Transformable

FBPropertyBool Transformable

Read Write Property: Indicate if a model can be transformable in the viewer. This has a default value of 'true'.

Definition at line 355 of file fbmodel.h.

◆ Translation

FBPropertyAnimatableVector3d Translation

Read Write Property: Lcl translation.

Definition at line 343 of file fbmodel.h.

◆ TranslationActive

FBPropertyBool TranslationActive

Read Write Property: Is model using Translation Limits?

Definition at line 330 of file fbmodel.h.

◆ TranslationMax

FBPropertyVector3d TranslationMax

Read Write Property: Translation Limit Max.

Definition at line 332 of file fbmodel.h.

◆ TranslationMaxX

FBPropertyBool TranslationMaxX

Read Write Property: Is model using Translation Limits on Max X.

Definition at line 336 of file fbmodel.h.

◆ TranslationMaxY

FBPropertyBool TranslationMaxY

Read Write Property: Is model using Translation Limits on Max Y.

Definition at line 337 of file fbmodel.h.

◆ TranslationMaxZ

FBPropertyBool TranslationMaxZ

Read Write Property: Is model using Translation Limits on Max Z.

Definition at line 338 of file fbmodel.h.

◆ TranslationMin

FBPropertyVector3d TranslationMin

Read Write Property: Translation Limit Min.

Definition at line 331 of file fbmodel.h.

◆ TranslationMinX

FBPropertyBool TranslationMinX

Read Write Property: Is model using Translation Limits on Min X.

Definition at line 333 of file fbmodel.h.

◆ TranslationMinY

FBPropertyBool TranslationMinY

Read Write Property: Is model using Translation Limits on Min Y.

Definition at line 334 of file fbmodel.h.

◆ TranslationMinZ

FBPropertyBool TranslationMinZ

Read Write Property: Is model using Translation Limits on Min Z.

Definition at line 335 of file fbmodel.h.

◆ UniqueColorId

FBPropertyColor UniqueColorId

Read Only Property: Unique Color Id for color based viewer picking. Color channel values are in the range [0, 1] with 1.0/255 precision.

Definition at line 356 of file fbmodel.h.

◆ UpVector

FBPropertyModel UpVector

Read Write Property: UpVector model.

Definition at line 304 of file fbmodel.h.

◆ Visibility

FBPropertyAnimatableBool Visibility

Read Write Property: Visibility of model. This can be overridden by the 'Show' property.

Definition at line 341 of file fbmodel.h.

◆ VisibilityInheritance

FBPropertyBool VisibilityInheritance

Read Write Property: //!< When this value is set to True the Visibility of this model is also applied to all its descendants

Definition at line 342 of file fbmodel.h.

The documentation for this class was generated from the following file:

fbmodel.h

Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FBModel()

Member Function Documentation

◆ Clone()

◆ ClosestRayIntersection()

◆ CollapseInSchematic()

◆ CustomModelDisplay()

◆ CustomModelPicking()

◆ DofToLRM()

◆ ExpandInSchematic()

◆ FBDelete()

◆ FbxGetObjectSubType()

◆ FbxGetObjectType()

◆ FbxRetrieve()

◆ FbxStore()

◆ ForceAlwaysEvaluate()

◆ GetAdditionalUniqueColorID()

◆ GetAdditionalUniqueColorIDCount()

◆ GetBoundingBox()

◆ GetCullingMode()

◆ GetHierarchyWorldMatrices()

◆ GetLocalTransformationMatrixWithGlobalRotationDoF()

◆ GetMatrix()

◆ GetSchematicPosition()

◆ GetSelectedPoints()

◆ GetSelectedPointsCount()

◆ GetVector()

◆ HasCustomDisplay()

◆ ICallback_Declare()

◆ IQuery_Declare()

◆ IsCollapsedInSchematic()

◆ IsEvaluationReady()

◆ IsForceAlwaysEvaluate()

◆ IsVisible()

◆ LRMToDof()

◆ ManipulatorNotify()

◆ MatrixToRotation()

◆ NoFrustumCullingRelease()

◆ NoFrustumCullingRequire()

◆ RayCast()

◆ RotationToMatrix()

◆ SetAdditionalUniqueColorIDCount()

◆ SetCullingMode()

◆ SetMatrix()

◆ SetMatrixWithPrecision()

◆ SetSchematicPosition() [1/2]

◆ SetSchematicPosition() [2/2]

◆ SetupPropertiesForShapes()

◆ SetVector()

◆ UseFrustumCulling()

Member Data Documentation

◆ AnimationNode

◆ BlendShapeDeformable

◆ CastsShadows

◆ Children

◆ Cluster

◆ ConstrainDeformable

◆ Deformers

◆ GeometricRotation

◆ GeometricScaling

◆ GeometricTranslation

◆ Geometry

◆ GeometryUpdateId

◆ Icon3D

◆ IsConstrained

◆ IsDeformable

◆ LookAt

◆ Materials

◆ ModelVertexData

◆ Parent

◆ Pickable

◆ PointCacheDeformable

◆ PointCacheRecord

◆ PostRotation

◆ PreRotation

◆ PrimaryVisibility
